PUIG 20509 Mounting Instructions

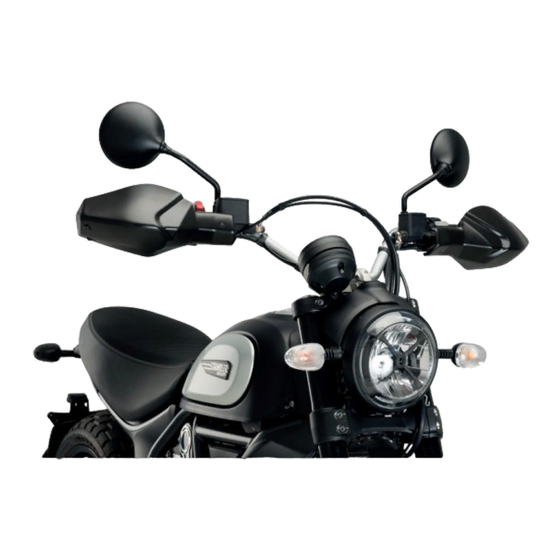

DUCATI SCRAMBLER (WITH HYDRAULIC CLUTCH)
M O
REF 20 509
1 Person
40 min
EASY
ID PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
V2.07/22
U N T I N G
DESCRIPCIÓN
Paramanos derecho
Pieza derecha anclaje manillar Ø6,5
(se suministra montada)
Paramanos izquierdo
Pieza izquierda anclaje manillar Ø6,5
(se suministra montada)
Soporte metálico derecho ( · )
Soporte metálico izquierdo ( ·· )
Tornillo Allen M8x45 DIN912
Tuerca autoblocante M8
Arandela de nylon M5x1
(se suministra montada)
Arandela de goma Ø4,5 x Ø11 x 2mm
(se suministra montada)
Arandela de goma Ø4,5 x Ø14 x 4mm
Tornillo Allen M6x40 DIN7991
Arandela de plástico Ø30 x Ø6
Tapón tornillo M5 ISO 7380
Tornillo Allen M5x16 Ø11 ISO 7380
Tuerca grafilada M5
(se suministra montada)
Kit adhesivos
www.puig.tv
www.puigusa.com
I N S T R
H A N D G U A R D S
DESCRIPTION
Right handguard
Ø6.5 right handlebar anchoring part
(supplied mounted with handguard)
Left handguard
Ø6.5 left handlebar anchoring part
(supplied mounted with handguard)
Right metal support ( · )
Left metal support ( ·· )
M8X45 DIN912 Screw
M8 locking nut
M5x1 Nylon washer
(se suministra montada)
Ø4,5 x Ø11 x 2mm Nylon washer
(supplied mounted with handguard)
Ø4,5xØ14 x 4mm Rubber washer
M6X40 DIN7991 Allen screw
Ø30 x Ø6 plastic washer
M5 ISO 7380 Allen screw cap
Allen screw M5x16 Ø11 ISO 7380
M5 special nut
(supplied mounted)
Stickers set
Pg. 1/4
info@puigusa.com
U C T I O N
WITH HYDRAULIC CLUTCH
Nº 10
Nº 13
QTY
1
1
1
1
1
1
2
2
6
4
2
2
2
6
6
4
1
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
ALLEN
Nº 3
Nº 6
REF
20509JM3
20509JM3
20509JM3
20509JM3
SOPOR2P2-R20509
SOPOR2P2-L20509
TORNI-AD912-508
TUEA-D985.8-M8-
ARNV00000000245
TORNIAD7991-377
ARAND-PN6X30-67
TAPON--------85
TORNI-I7380-493
TUERC-D6923-255
ADHESI------234
