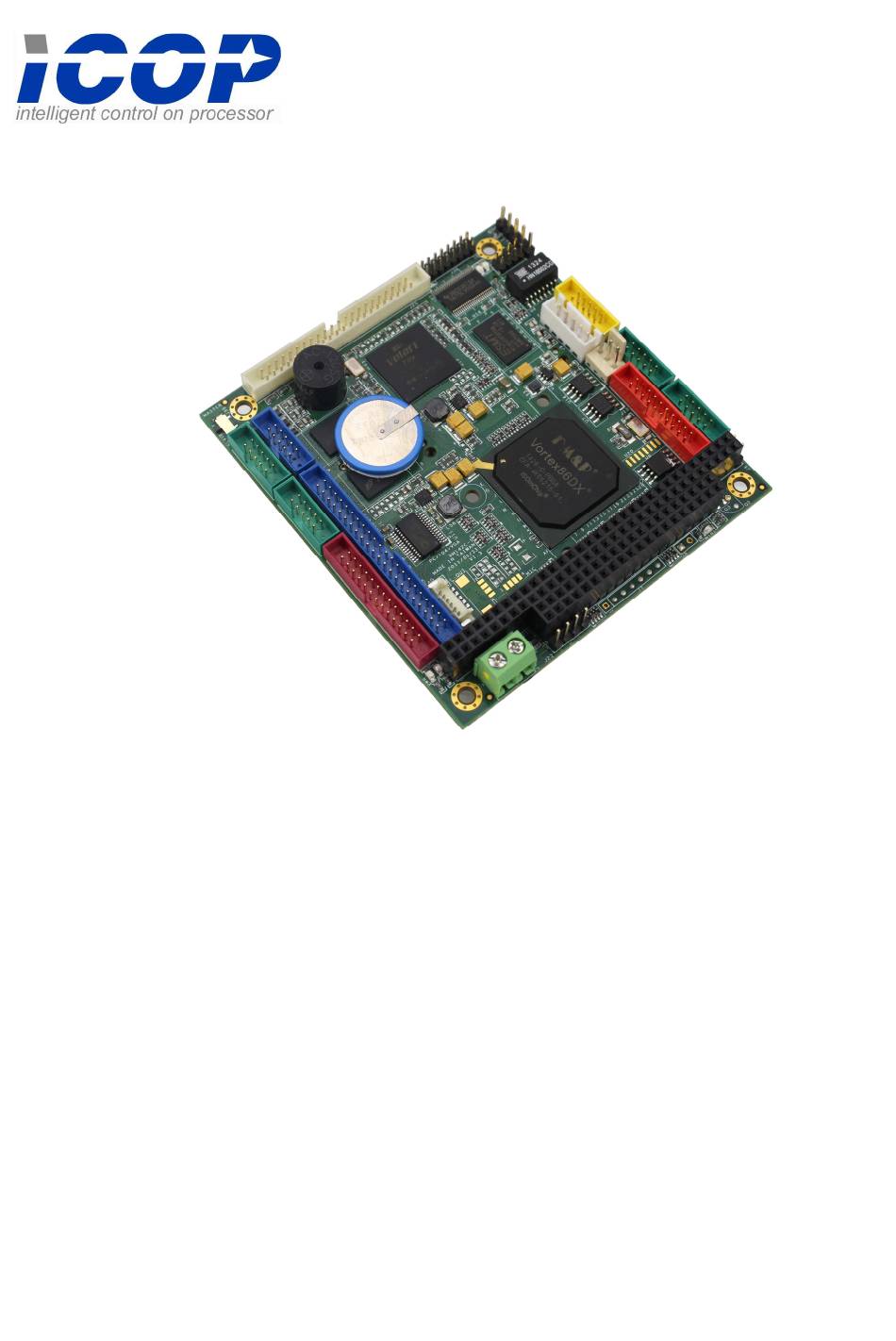

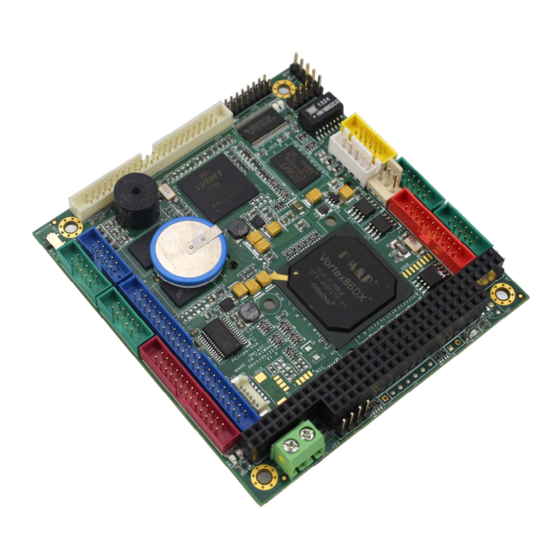

- Page 1 VDX-6353RD / VDX-6353RD-512 DM&P Vortex86DX 800MHz PC/104 CPU Module with 4S/2USB/VGA/LCD/LVDS/LAN/GPIO/CF/PWMx16 256MB DDR2 Onboard User’s Manual (Revision 1.1A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
Introduction Packing List Product Name Package Embedded Vortex86DX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 4 VDX-6353RD PRINT cable x1 IDE cable x 1 & USB cable x 1 (USB port x 2 VDX-6353RD-512 VGA cable x 1... -
Page 6: Product Description
PC/104 controller. The VDX-6353RD family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 7: Specifications
Specifications Features VDX-6353RD DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache, L2 Cache 128KB Cache AMI BIOS BIOS PC/104 Standard Compliant Bus Interface 256 / 512MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2... - Page 8 Compact Flash Type I/II 44-pin IDE to Micro SD (Optional) 16~24 channels Single Voltage +5V @ 720mA Power Requirement 90 X 96mm (3.54 x 3.77 inches) Dimension Weight C ~ +70 Operating -40°C ~ +85°C (Optional) Temperature VDX-6353RD Vortex86DX™ PC/104 CPU Module...
-
Page 9: Board Dimension
Board Dimension VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 10: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline Note: 1. COM2 RS232/422/485 is selected by BIOS setting 2. Audio is optional 3. VDX-6353RD-512 is optional 4. Redundancy Signal and System-Fail-SW are optional VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 11: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors (Note1: J33 and J34 are optional) VDX-6353RD Vortex86DX™ PC/104 CPU Module... - Page 12 Jumpers & LEDs VDX-6353RD Vortex86DX™ PC/104 CPU Module...
-
Page 13: Connectors & Jumpers Summary
J35 Master/Slave for IDE & CF 3-pin Slide Switch J36 LVDS 16-pin Pin Header, 2.0∅ 8x2 CF1 Compact Flash 50-pin Type I/II CF Connector PWR- Power Active LED (Red) LED-SMD IDE- IDE Active LED (Green ) LED-SMD VDX-6353RD Vortex86DX™ PC/104 CPU Module... - Page 14 MTBF- MTBF-Out (Orange) LED-SMD LED 3 LAN Link/Active LED (Green) LED-SMD LED 4 LAN Duplex LED ( Yellow ) LED-SMD SP1 BUZZER VDX-6353RD Vortex86DX™ PC/104 CPU Module...
-
Page 15: Pin Assignments & Jumper Settings
IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS-0 IDECS1 IDELED J2: USB Pin # Signal Name Pin # Signal Name LUSBD3- LUSBD2- LUSBD3+ LUSBD2+ GGND GGND VDX-6353RD Vortex86DX™ PC/104 CPU Module... - Page 16 J6: RESET Pin # Signal Name Pin # Signal Name RST_SW J7: Redundancy (Optional) Pin # Signal Name Pin # Signal Name SYS-FAIL-OUT SYS-FAIL-IN GPCS0 SYS-GPCS-IN TXD9\ RXD9\ J8: System-Fail-Switch (Optional) Pin # Signal Name SYS-SW-IN VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 17 J12: COM2 RS232 / 422 / 485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 18 Pin # Signal Name RS485＋ RS485－ J16: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J17: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 19 Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J19: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 20 SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH * SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 * BALE VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 21 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6 SD10 DACK7 * SD11 DRQ7 SD12 SD13 MASTER * SD14 SD15 J22: 4P Power Source (Interconnect to PC/104 – J20) Pin # Signal Name -12V +12V VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 22 G OUT B OUT HSYNC VSYNCD J25: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 23 Signal Name LOUTR LOUTL J34: MIC-IN (Optional) Pin # Signal Name MICVREF MIC-IN J36: LVDS Pin # Signal Name Pin # Signal Name VCC3 (+3.3V) VCC3 (+3.3V) RxIN0- RxIN0+ RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ VDX-6353RD Vortex86DX™ PC/104 CPU Module...
-
Page 24: System Mapping
System Mapping VDX-6353RD Vortex86DX™ PC/104 CPU Module... - Page 25 VDX-6353RD Vortex86DX™ PC/104 CPU Module...
- Page 26 VDX-6353RD Vortex86DX™ PC/104 CPU Module...
-
Page 27: Watchdog Timer
The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 28: Gpio
We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 29: Spi Flash
Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 30: Pwm
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 31: Ide To Sd
44 pins IDE to SD Adapter can be easily installed on all Vortex86DX-63xx CPU boards. You or your customers just do the BIOS setting and use SD-1917 to connect IDE connector of Vortex86DX-63xx directly. For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. -
Page 32: Chapter 3 Driver Installation
Please get the drivers from the Driver CD which attached with the standard packing of Vortex86DX-6353RD board or please get it from DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ Vortex86DX-6353RD also supports most of the popular Linux distributions, for more detail information, please visit DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 33: Appendix
Appendix TFT Flat Panel Data Output VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 34: Tft Flat Panel Support List
7” Data image 800x480 FG0700A0DSSWBG01 7” LG-PHILIPS 800x480 (TFT 24 bits) LB070WV1 7” HITACHI 800x480 TX18D57VM2BAA 7” Samsung 800x480 LMS700KF05 7” 800x480 PM070WL4 7” 800x480 UMSH-8173MD-1T 7” CHI HSIN 800x480 LW700AT9309 7” Microtips 800x480 MTF-T070ACSLP-LB VDX-6353RD Vortex86DX™ PC/104 CPU Module... - Page 35 640x480 PD104VT1 / VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-53 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG21 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 VDX-6353RD Vortex86DX™ PC/104 CPU Module...
-
Page 36: Lvds Flat Panel Support List
AM-800600LTNQW-A0/D0/00H 10.4” MITSUBISHI 800x600 AA104SG01 10.4” 800x600 G104SN02 10.4” Sharp 800x600 LQ104S1LG61 10.4” CHI MEI 1024x768 G104X1-L01/L03 10.4” Ampire 1024x768 AM-1024768CTMQW-T00 12.1” MITSUBISHI 800x600 AA121SL03 12.1” 800x600 G121SN01 12.1” Ampire 1024x768 AM-1024768GTMQW-00H 15” 1024x768 G150XG01 VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 37: Flat Panel Wiring And Lighting
Please refer to Page 18, 19 (J25: LCD & J26: LVDS connector) and Page29~33. Or for more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw ,if you have any questions. VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 38: Tcp/Ip Library For Dos Real Mode
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 39: Bios Default Setting
CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9” to Load Optimized Defaults Press “F10” to Save configuration changes and exit setup VDX-6353RD Vortex86DX™ PC/104 CPU Module... -
Page 40: Warranty
Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. VDX-6353RD Vortex86DX™ PC/104 CPU Module...
