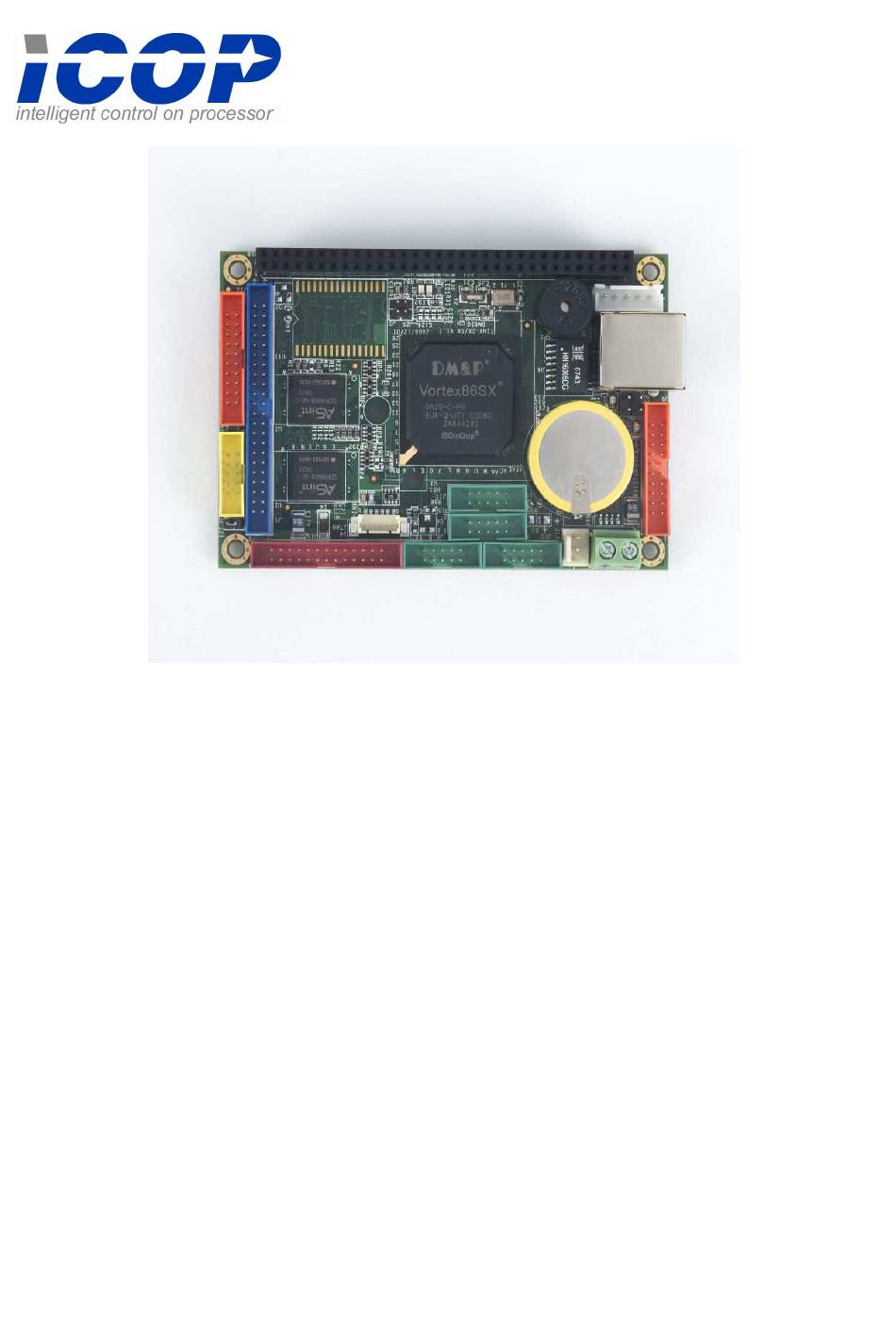

- Page 1 VSX-6115-V2 DM&P Vortex86SX 300MHz Tiny CPU Module with 4S/2USB/LAN/2GPIO 256MB DDR2 Onboard User’s Manual (Revision 1.1 A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. Copyright 2007 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Chapter 1 Introduction
PRINT cable x1 VSX-6115-V2 IDE cable x 1 USB cable x 1 (USB port x 2 GPIO cable x 2 PS/2 Keyboard cable x 1 (Note1: VGA function support (ICOP-2720) via x-ISA Interface) ICOP-2720: http://www.icop.com.tw/DB/upload/manual/ICOP-2720_Manual%20.pdf Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module... -
Page 6: Product Description
1.2 Product Description The VSX-6115-V2 family of low-power x86 embedded controller is designed to meet Tiny specification, and integrated with the following features. 300MHz Vortex86SX System-On-Chip RS-485 with Auto Direction 256MB DDR2 system memory 2 watchdog timer Enhanced IDE SRAM support (Optional) ... -
Page 7: Specifications
1.3 Specifications Features VSX-6115-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache Cache AMI BIOS BIOS 16-bit x-ISA interface Bus Interface 256MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2 Watchdog Timer sets(Watchdog 1 fully compatible with M6117D) Integrated 10/100M Ethernet... -
Page 8: Board Dimension
Board Dimension Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Note1: VGA function support (ICOP-2720) via x-ISA Interface) ICOP-2720: http://www.icop.com.tw/DB/upload/manual/ICOP-2720_Manual%20.pdf (Note2: COM2 RS232/422/485 is selected by BIOS setting) (Note3: J21: Default setting of JTAG Has to be Disable: Pin 1 & Pin 2 short) -
Page 10: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module... - Page 11 Jumpers & LEDs Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module...
-
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections nbrs. 44-pin Box Header, 2.0∅ ,22x2 10-pin Box Header,2.0∅ , 5x2 10/100Base-T Ethernet LAN 8-pin RJ45 Connector JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 PS/2 Keyboard 5-pin Box Header, 2,54∅,1x5 COM1... -
Page 13: Pin Assignments & Jumper Settings
2.4 Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID... - Page 14 J5: RESET Pin # Signal Name Pin # Signal Name Reset J6: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J8: COM 1 (Optional: TTL) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1...
- Page 15 J10: COM2 RS232 / RS422 / RS485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 J12: GPIO (Port 2 / 3) Pin # Signal Name Pin # Signal Name...
- Page 16 J14: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J15: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J16: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT-...
- Page 17 J18: x-ISA Connector – 64pin Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 SA18 SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 ICOS16 SA13 REFRESH SA12 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4 IRQ3...
- Page 18 J21: JTAG Disable (Default setting: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name JTAG Disable *CPU module will not function if this jumper is not short J22: LAN LED Pin # Signal Name Pin # Signal Name Link / Active TX / RX Vortex86SX-6115-V2...
-
Page 19: System Mapping
System Mapping Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module... - Page 20 Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module...
- Page 21 Vortex86SX-6115-V2 Vortex86SX™ Tiny CPU Module...
-
Page 22: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 23: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 24: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 25: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86SX processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection. -
Page 26: Appendix
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 27: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup ... -
Page 28: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
