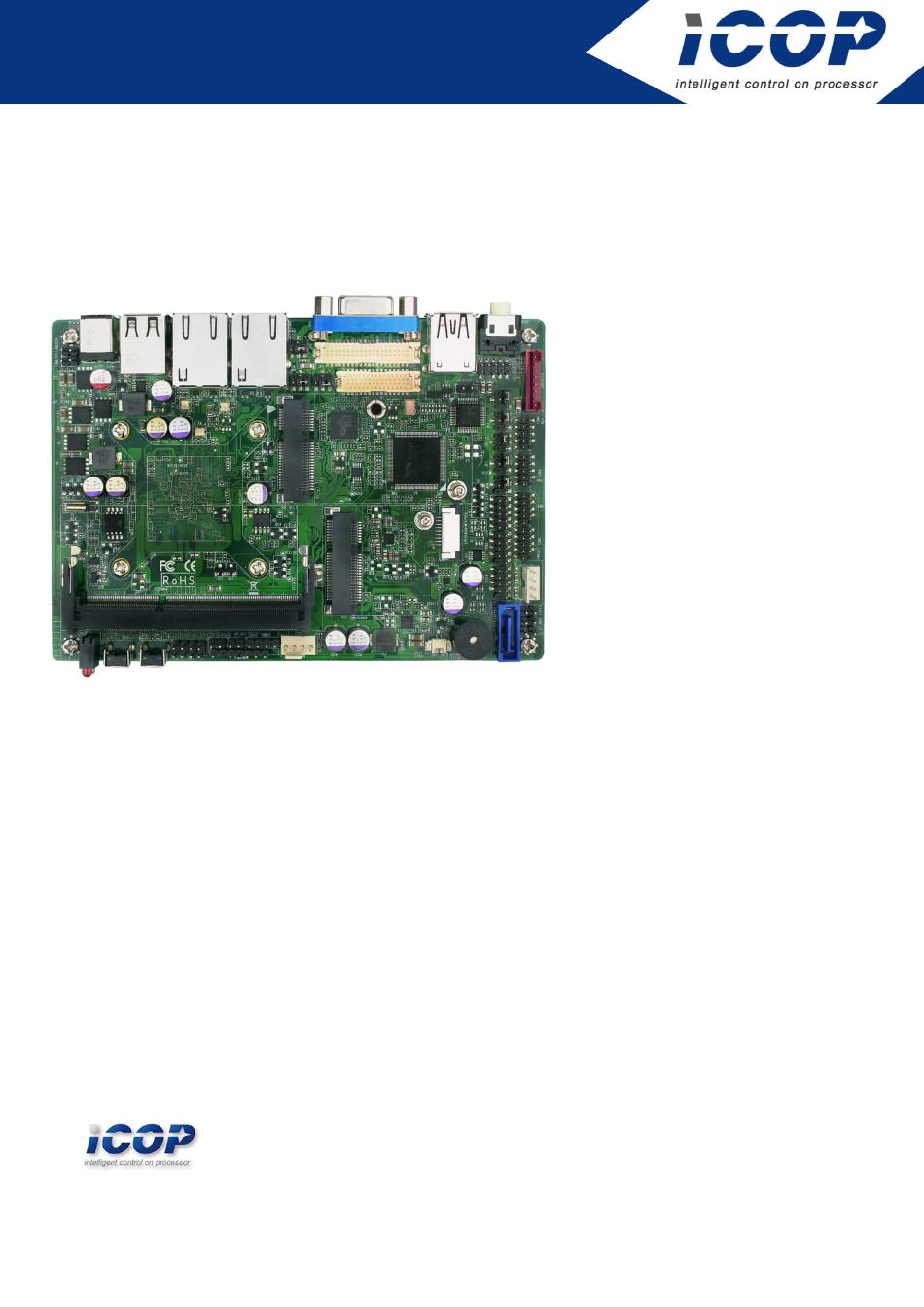

  • Page 1 User Manual BYT-35-N2930 A 3.5” embedded solution on ® Intel Quad-core processor (Bay Trail Family) Version 1.1...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc.
  • Page 3 BYT-35-N2930 User Manual Revision History Revision Date Remark June 3, 2019 First version release June 25, 2019 Block diagram modified ICOP Technology Inc.
  • Page 4: Table Of Contents

    1.1 Overview ............................1 1.2 Block diagram ........................... 1 1.3 Specifications ............................ 2 1.4 Ordering Information ........................3 1.4.1 BYT-35-N2930 .......................... 3 Hardware Information ........................4 2.1 Dimension ............................4 2.2 Board Outline ........................... 5 2.3 Connector, Header, and Jumper Summary .................. 6 2.4 Pin Assignments &...
  • Page 5 3.2 Main ..............................22 3.3 Advanced............................23 3.4 Chipset ............................. 31 3.5 Security ............................33 3.6 Boot ..............................34 3.7 Save & Exit ............................. 35 Technical Support Directly from ICOP ....................36 User Manual Feedback ..........................36 Warranty ..............................37 ICOP Technology Inc.
  • Page 6: General Information

    Bay Tail Quad-Core CPU with DDR3L RAM support up to 8GB, provides stable and powerful computing performance. BYT-35-N2930 supports 2x Gigabit LAN, 4x COM, 8x USB, SMBus, 8-bit GPIO, 2x MiniPCIe, eDP, LVDS, VGA, and 2 storage options SATA interface and mSATA interface for development use.
  • Page 7: Specifications

    10-pin header for 8-bit GPIO x1 Power 9 to 24VDC standard input from DC-in jack support for ATX/AT mode Requirement Operating Temp. 0°C to 60°C Dimensions 148 x 102 mm O/S Support Windows 10 Windows 7 Linux ICOP Technology Inc.
  • Page 8: Ordering Information

    BYT-35-N2930 User Manual 1.4 Ordering Information 1.4.1 BYT-35-N2930 Product Name BYT-35-N2930 Intel ® Bay Trail N2930 Processor 2.16GHz (Burst) 1.83GHz Quad Core System DDR3L 1333MHz memory support up to 8GB Memory in SO-DIMM socket x1 Expansion MiniPCIe (full size, share with mSATA) x1,...
  • Page 9: Hardware Information

    BYT-35-N2930 User Manual 2 Hardware Information 2.1 Dimension ICOP Technology Inc.
  • Page 10: Board Outline

    BYT-35-N2930 User Manual 2.2 Board Outline Native USB port ICOP Technology Inc.
  • Page 11: Connector, Header, And Jumper Summary

    SPDIF Out Header Pin Header for SPDIF Device SMBus Header Pin Header for SMBus Device USB2.0 Header Pin Header for USB2.0 Device SATA Connector 7-pin connector for SATA Device SATA Power Connector 4-pin power connector for SATA Device ICOP Technology Inc.
  • Page 12: Pin Assignments & Jumper Settings

    JP4: Function Select for Pin 9 on Inverter COM3 Status Assignment Status Assignment 2 – 4 Closed 2 – 4 Closed RS232 3 – 4 Closed 3 – 4 Closed 4 – 6 Closed Adapter Vcc 4 – 6 Closed ICOP Technology Inc.
  • Page 13: Jp5: Function Select For Pin 9 On Com2

    Adapter Vcc 4 – 6 Closed JBAT: BIOS Clearing JP7: Security Measurement Selector Status Assignment Status Assignment 1 – 2 Open 1 – 2 Open Enabled 1 – 2 Closed Clear BIOS 1 – 2 Closed Disabled ICOP Technology Inc.
  • Page 14: Copen: Case Open Message Display

    Message Display LOUTL AT Mode: AT Mode Select COM Port Header Status Assignment 1 – 2 Open ATX Mode 1 – 2 Closed AT Mode Assignment RS232 RS422 RS485 DATA- DATA+ RS422/485 is supported by COM1 only. ICOP Technology Inc.
  • Page 15: Cpu Fan Header

    BYT-35-N2930 User Manual CPU Fan Header eDP Wafer Assignment Assignment Assignment GNDD FAN CLOCK LANE3_N CONTROL LANE3_P LANE2_N LANE2_P LANE1_N LANE1_P LANE0_N BL_ENABLE LANE0_P BL_PWM_DM AUX_CH_P AUX_CH_N BL_PWR BL_PWR BL_PWR BL_PWR ICOP Technology Inc.
  • Page 16: Gpio Port Header

    GPIO Port Header LVDSB_DATAN3 LVDSB_DATAP3 LVDS_CLKBN LVDS_CLKBP LVDSB_DATAN2 LVDSB_DATAP2 LVDSB_DATAN1 LVDSB_DATAP1 LVDSB_DATAN0 LVDSB_DATAP0 NC/DDC_DATA NC/DDC_CLK Assignment Assignment GPIO80 GPIO81 LVDSA_DATAP3 LVDSA_DATAN3 GPIO82 GPIO83 LVDS_CLKAP LVDS_CLKAN GPIO84 GPIO85 LVDSA_DATAP2 LVDSA_DATAN2 GPIO86 GPIO87 LVDSA_DATAP1 LVDSA_DATAN1 LVDSA_DATAP0 LVDSA_DATAN30 PVCC PVCC PVCC PVCC ICOP Technology Inc.
  • Page 17: Ps/2 Header

    USB2.0 Header Assignment Assignment Assignment KB_DATA KB_CLK DATA- DATA- DATA+ DATA+ MS_CLK MS_DATA SPDIF Out Header LVDS Inverter Assignment SPDIGOUT Assignment BACKLIGHT ENABLE BACKLIGHT PWM SMBus Header PVCC PVCC BACKLIGHT UP SW BACKLIGHT DOWN SW Assignment SMBUS_CLK SMBUS_DATA ICOP Technology Inc.
  • Page 18: Sata Connector

    BYT-35-N2930 User Manual SATA Connector Assignment SATA Power Connector Assignment +12V ICOP Technology Inc.
  • Page 19: Bios

    User Manual 3 BIOS The AMI BIOS is preinstalled on BYT-35-N2930 to bridge board computer and operating system and is stored in CMOS RAM for retaining BIOS configuration. Through AMI BIOS, user can modify basic system configuration for application requirement.
  • Page 20: Main

    To change basic system configuration with system date and time. <Tab> key is used to switch between elements. System Date Set the Date. Use Tab to switch between Date elements. System Time Set the Time. Use Tab to switch between Time elements. ICOP Technology Inc.
  • Page 21: Advanced

    (S3/S4/S5) Support Only Disable ERP Function USB S3/S4 Wake-up Enable or Disable USB S3/S4 Wake-up [Disabled], [Enabled] Support Only Disable ERP Function USB S5 Power USB Power after system Shutdown. [Disabled], [Enabled] Support Only Disable ERP Function ICOP Technology Inc.
  • Page 22 [64-Byte FIFO], [128-Byte FIFO] Serial Port 3 Configuration Serial Port Enable or Disable Serial Port (COM) [Disabled], [Enabled] Change Settings Select an optimal settings for Support IO [Auto], [IO=3F8h; IRQ=4], Device [IO=2F8h; IRQ=3], [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3] ICOP Technology Inc.
  • Page 23 Shutdown Temperature [Disabled], [Enabled] Serial Port Console Redirection Serial Port Console Redirection Console Redirection Console Redirection Enable or Disable [Disabled], [Enabled] Console Redirection Settings The settings specify how the host computer and the remote computer and the remote ICOP Technology Inc.
  • Page 24 VT-UTF8 Combo Key Support Enable VT-UTF8 Combination Key Support [Disabled], [Enabled] for ANSI/VT100 terminals. Recorder Mode With this mode enabled only test will be [Disabled], [Enabled] sent. This is to capture Terminal data. Resolution 100x31 Enables or disables extended terminal ICOP Technology Inc.
  • Page 25 [None], [Hardware RTS/CTS], buffer overflow. When sending date, if the r [Software Xon/Xoff] receiving buffers are full, a ‘stop’ signal can be sent to stop the date flow. Once the buffers are empty, a ‘start’ signal can be sent ICOP Technology Inc.
  • Page 26 Ipv4 PXE Support Enable Ipv4 PXE Boot Support. If [Disabled], [Enabled] disabled IPV4 PXE boot option will not be created. Ipv6 PXE Support Enable Ipv6 PXE Boot Support. If [Disabled], [Enabled] disabled IPV6 PXE boot option will not ICOP Technology Inc.
  • Page 27 Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. Realtek PCIe GBE Family Controller (MAC:00:30:18:09:0F:18) Get driver information and configure Realtek Ethernet controller parameter ICOP Technology Inc.
  • Page 28 BYT-35-N2930 User Manual Realtek PCIe GBE Family Controller (MAC:00:30:18:09:0F:18) Get driver information and configure Realtek Ethernet controller parameter ICOP Technology Inc.
  • Page 29: Chipset

    IGD Turbo Enable Enable: Enable IGD Turbo Enable [Disabled], [Enabled] Disable: Enable IGD Turbo Disable Spread Spectrum clock Enable/Disable Spread Spectrum clock [Disabled], [Enabled] IGD Boot Type Select preference display interface used when [CRT], [eDP+CRT], system boots. [LVDS+CRT] ICOP Technology Inc.
  • Page 30 Enable or Disable Device or Controller [Enabled], [Disabled] Onboard Lan2 Controller Enable or Disable Device or Controller [Enabled], [Disabled] System State after Power Failure Select AC power state when power is [Always Off], [Always On], re-applied after a power failure [Former State] ICOP Technology Inc.
  • Page 31: Security

    BYT-35-N2930 User Manual 3.5 Security Password setting for system security Administrator Password Set Administrator Password User Password Set User Password ICOP Technology Inc.
  • Page 32: Boot

    65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state [On], [Off] Quiet Boot Enables or disables Quiet Boot option [Disabled], [Enabled] Boot Option #1 Sets the system boot order [UEFI: Built-in EFI Shell], [Disabled] ICOP Technology Inc.
  • Page 33: Save & Exit

    Launch EFT Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices Reset System with TXE disable Mode TXE will runs into the temporary disable mode, Ignore if TXE Ignition ICOP Technology Inc.
  • Page 34: Technical Support Directly From Icop

    —A detailed description and photos of the technical situation —Any complement or technical situations you want ICOP more focusing on User Manual Feedback To make this user manual more complete, if you have any comments or feedbacks to this manual, please feel free to write to info@icop.com.tw...
  • Page 35: Warranty

    Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
