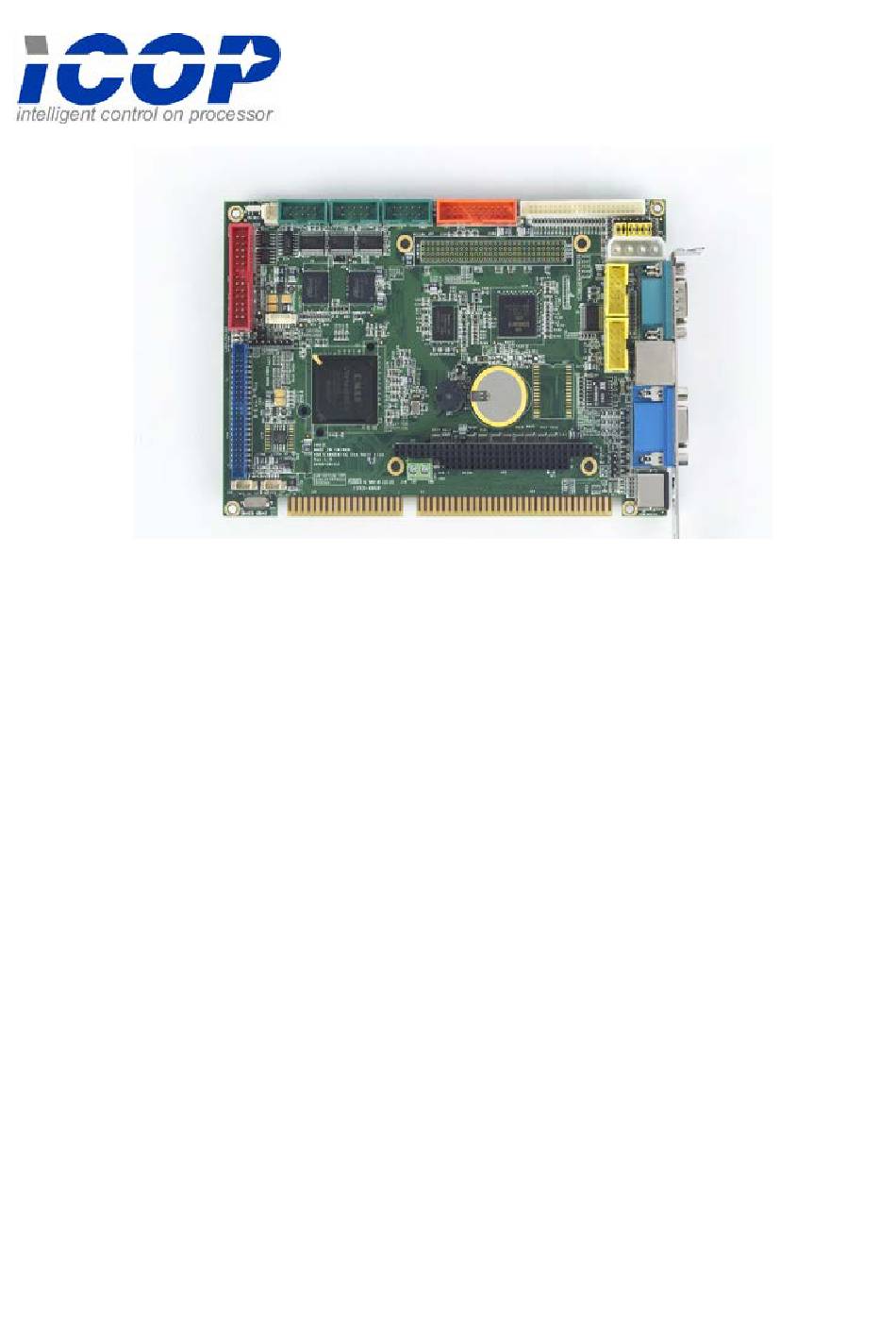

- Page 1 Full 16-bit ISA Bus VDX-6324RD DM&P Vortex86DX 800MHz Half-Size CPU Module with 4S/4USB/VGA/LCD/LAN/GPIO/PWMx16 256MB DDR2 Onboard User’s Manual (Revision 1.2A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. Copyright 2008 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... -
Page 4: Chapter 1 Introduction
Product Name Package Embedded Vortex86DX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 3 PRINT cable x1 VDX-6324RD IDE cable x 1 USB cable x 2 (USB port x 2 GPIO cable x 1 Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... -
Page 5: Product Description
Half-Size controller. The VDX-6324RD family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
Specifications Features VDX-6324RD DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache, L2 Cache 128KB BIOS AMI BIOS Bus Interface PC/104 Standard Compliant (Optional: PCI-104) System Memory 256 /512MB DDR2 onboard Watchdog Timer Software programmable from 30.5 us to 512 seconds x2... - Page 7 Connectors 2.54mm ∅ 26-pin box header for Print x1 2.54mm ∅ 10-pin box header for RS-232 x3 2.54mm ∅ 10-pin box header for USB x2 2.54mm ∅ 20-pin box header for 16-bit GPIO x1 2.54mm ∅ 3-pin header for RS-485 x1 2.54mm ∅...
-
Page 8: Board Dimension
Board Dimension Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: PCI-104 connector is optional: VI/O setting: +5V only) Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... -
Page 10: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... - Page 11 Jumpers & LEDs Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
-
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ , 22x2 USB1 10-pin Box Header, 2.54∅ , 5x2 USB2 10-pin Box Header, 2.54∅ , 5x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 PS/2 Keyboard &... - Page 13 IDE- IDE Active LED (Green ) LED-SMD MTBF- MTBF-Out (Orange) LED-SMD CF1 Compact Flash 50-pin Type I/II CF Connector SP1 BUZZER Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
-
Page 14: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0... - Page 15 J3: USB 2 Pin # Signal Name Pin # Signal Name LUSBD2- LUSBD3- LUSBD2+ LUSBD3+ GGND GGND J4: JTAG Pin # Signal Name Pin # Signal Name J5: RESET Pin # Signal Name Pin # Signal Name Reset J8: PS/2 KBD / Mouse Pin # Signal Name Pin # Signal Name KBCLK...
- Page 16 J9: COM 1 (Optional: TTL/ GPIO-P4) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J10: COM2 RS232 / RS422 / RS485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX-...
- Page 17 J12: RS485 (Auto direction) Pin # Signal Name RS485＋ RS485－ J17: Power Connector – 4-pin Header (P4 Molex 5mm) Signal Pin # Name +12V J18: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J19: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3...
- Page 18 J20: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J21: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
- Page 19 J22: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 20 J24: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 21 J27: PC/104 + (Optional) VI/O setting: +5V only If you need to use VI/O as +3.3V, please use VDX-6324RD-FD-Plus Pin # AD00 VI/O(+5V) AD02 AD01 AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O(+5V) AD10 AD14 AD13 AD12 +3.3V...
- Page 22 J28: VGA (D-Sub connector) Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC DDCCLK J29: LCD Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) Vortex86DX-6324RD Vortex86DX...
- Page 23 J30~J35: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) J36: LAN Pin # Signal Name Pin # Signal Name Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
- Page 24 J37: LINE OUT (Optional) Pin # Signal Name LOUTR LOUTL J38: MIC-IN (Optional) Pin # Signal Name MICVREF MIC-IN J41: Console Redirection (Optional: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name Console_Red Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
-
Page 25: System Mapping
System Mapping Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... - Page 26 Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
- Page 27 Vortex86DX-6324RD Vortex86DX Half-Size CPU Module...
-
Page 28: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 29: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 30: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 31: Pwm
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... -
Page 32: Ide To Sd
44 pins IDE to SD Adapter can be easily installed on all Vortex86DX-63xx CPU boards. You or your customers just do the BIOS setting and use SD-1917 to connect IDE connector of Vortex86DX-63xx directly. For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. -
Page 33: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86DX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 34: Appendix
Appendix TFT Flat Panel Data Output Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... -
Page 35: Tft Flat Panel Support List
TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” Data image 320x240 FG050701DSSWBG01 5.7” Optrex 320x240 55264GD057J-FW-ABN 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA / VGA) LQ057Q3DC02 5.7” Kyocera 320x240 (QVGA / VGA) TCG057QV1AC-G10 5.7” 320x240 (QVGA / VGA) PD057VU4 /U5 5.7”... - Page 36 Size Brand Resolution Model No. 8” 800x600 (TFT 24bits) A080SN01 V0 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 Vortex86DX-6324RD...
-
Page 37: Lvds Flat Panel Support List
LVDS Flat Panel Support List If you would like to use LVDS Flat Panel with Vortex86SX / Vortex86DX series, please contact our regional sales to get ICOP-0096 information or visit ICOP website: http://www.icop.com.tw/pddetail.aspx?id=65&pid=4 ICOP–0096 : 18-bit TFT to LVDS converter and Cable-LVDS-30: LVDS Cable 30cm... -
Page 38: Flat Panel Hardware Setting
D. Flat Panel Hardware Setting: The Vortex86DX-6324RD offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J30~J35) before you connect the LCD. Display type setup Connector Note: "C" means close; "X" means open Vortex86DX-6324RD Vortex86DX... -
Page 39: Flat Panel Wiring And Lighting
Wiring LCD Cable Please refer to Page 19 (J29: LCD connector) and Page 31~36. Or for more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw you have any questions. Vortex86DX-6324RD Vortex86DX Half-Size CPU Module... -
Page 40: Tcp/Ip Library For Dos Real Mode
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 41: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup ... -
Page 42: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
