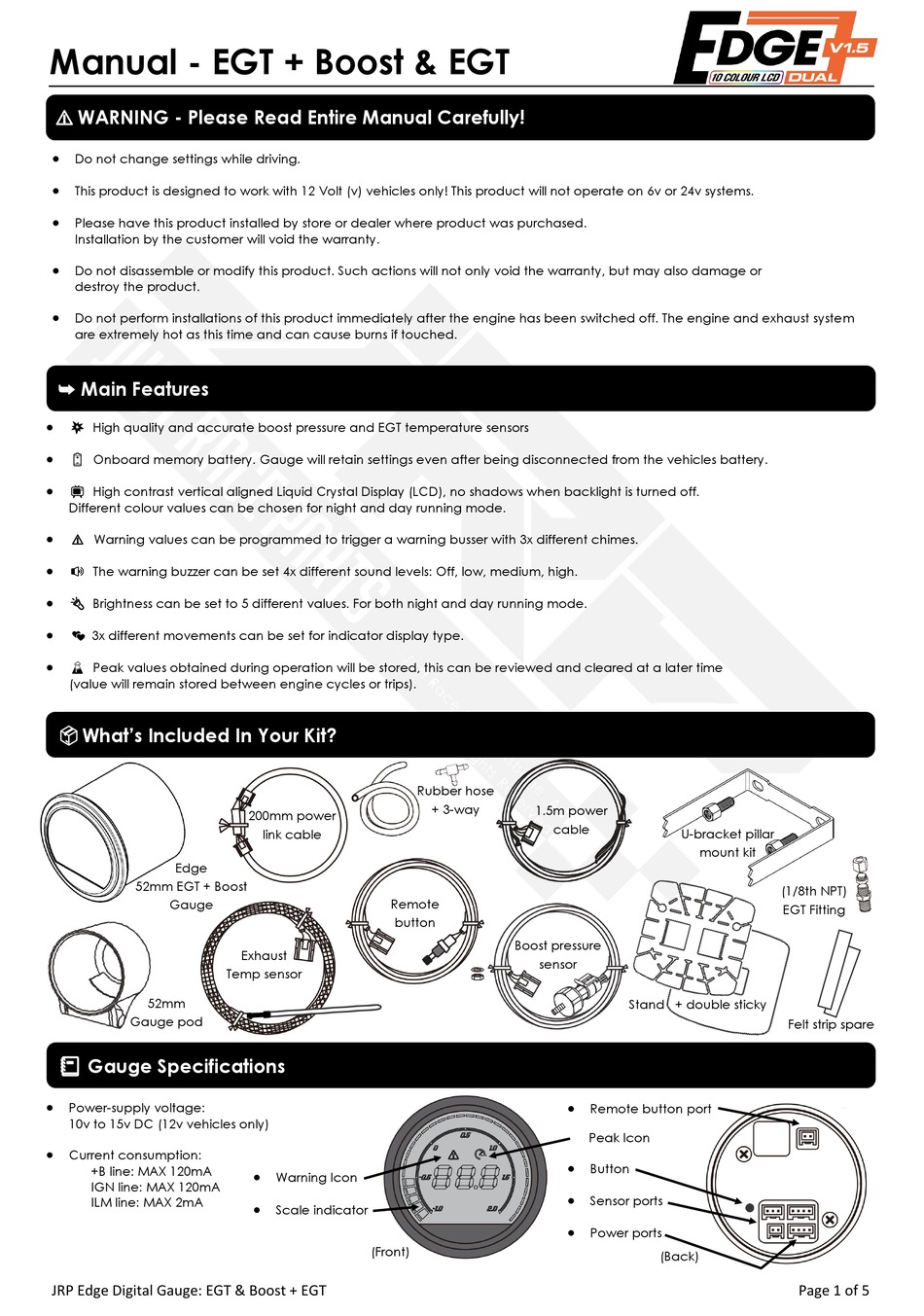

Manual - EGT + Boost & EGT
⚠ WARNING - Please Read Entire Manual Carefully!
•
Do not change settings while driving.
•
This product is designed to work with 12 Volt (v) vehicles only! This product will not operate on 6v or 24v systems.
•
Please have this product installed by store or dealer where product was purchased.
Installation by the customer will void the warranty.
•
Do not disassemble or modify this product. Such actions will not only void the warranty, but may also damage or
destroy the product.
•
Do not perform installations of this product immediately after the engine has been switched off. The engine and exhaust system
are extremely hot as this time and can cause burns if touched.
➥ Main Features
•
High quality and accurate boost pressure and EGT temperature sensors
•
Onboard memory battery. Gauge will retain settings even after being disconnected from the vehicles battery.
•
High contrast vertical aligned Liquid Crystal Display (LCD), no shadows when backlight is turned off.
Different colour values can be chosen for night and day running mode.
•
⚠ Warning values can be programmed to trigger a warning busser with 3x different chimes.
•
The warning buzzer can be set 4x different sound levels: Off, low, medium, high.
•
Brightness can be set to 5 different values. For both night and day running mode.
•
3x different movements can be set for indicator display type.
•
Peak values obtained during operation will be stored, this can be reviewed and cleared at a later time
(value will remain stored between engine cycles or trips).
What's Included In Your Kit?
Edge

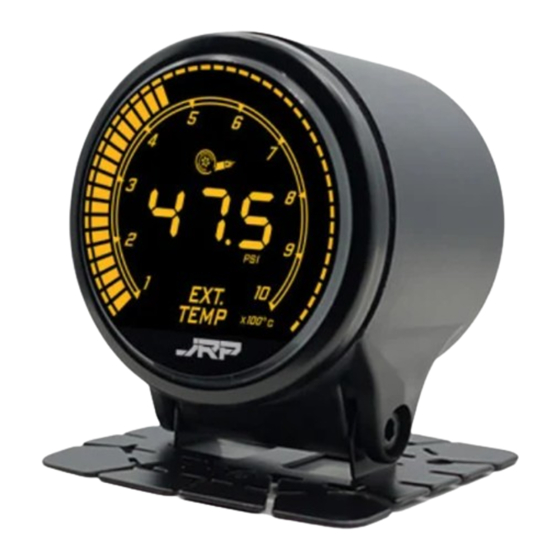

52mm EGT + Boost
Gauge
52mm
Gauge pod
Gauge Specifications
•
Power-supply voltage:
10v to 15v DC (12v vehicles only)
•
Current consumption:
+B line: MAX 120mA
IGN line: MAX 120mA
ILM line: MAX 2mA
JRP Edge Digital Gauge: EGT & Boost + EGT
200mm power
link cable
Remote
button
Exhaust
Temp sensor
•
Warning Icon
•
Scale indicator
(Front)
Rubber hose
+ 3-way
1.5m power
cable
Boost pressure
sensor
•
Remote button port
Peak Icon
•
Button
•
Sensor ports
•
Power ports
U-bracket pillar
mount kit
(1/8th NPT)
EGT Fitting
Stand + double sticky
Felt strip spare
(Back)
Page 1 of 5
Advertisement
Related Manuals for Edge EGT+Boost
Summary of Contents for Edge EGT+Boost
- Page 1 Button +B line: MAX 120mA • Warning Icon IGN line: MAX 120mA • Sensor ports ILM line: MAX 2mA • Scale indicator • Power ports (Front) (Back) JRP Edge Digital Gauge: EGT & Boost + EGT Page 1 of 5...
- Page 2 Follow procedure below for sensor specific installation. • (Optional) Install remote button wire and connect to the gauge. • Install 1x felt sticky strip (supplied) on inside edge of gauge pod. • Reconnect negative battery wire and start using the gauge (0.3 - 1A) Fuse...
- Page 3 • Note: The Edge 52mm EGT only gauge, is actually the Edge Dual function gauge (just shipped without the Boost sensor). For EGT only customers you will need to change your display mode to EGT + EGT or Volts + EGT after installing. If at any point you would like to add a Boost sensor to your EGT gauge to make it Dual function, you can purchase the “7 BAR”...
- Page 4 • The table below shows what to expect when navigating your 52mm Edge series EGT & Boost + EGT gauge, this is more or less an on the fly cheat sheet to assist you during setup. Best way to understand all the features and functions is to read this whole instruction manual carefully.
- Page 5 There are 3 different indicator display types. LONG PRESS SHORT PRESS SHORT PRESS It's best to view these options when the vehicle is up to operating temperature. SCALE INDICATOR JRP Edge Digital Gauge: EGT & Boost + EGT Page 5 of 5...
