Summary of Contents for Edge CS2

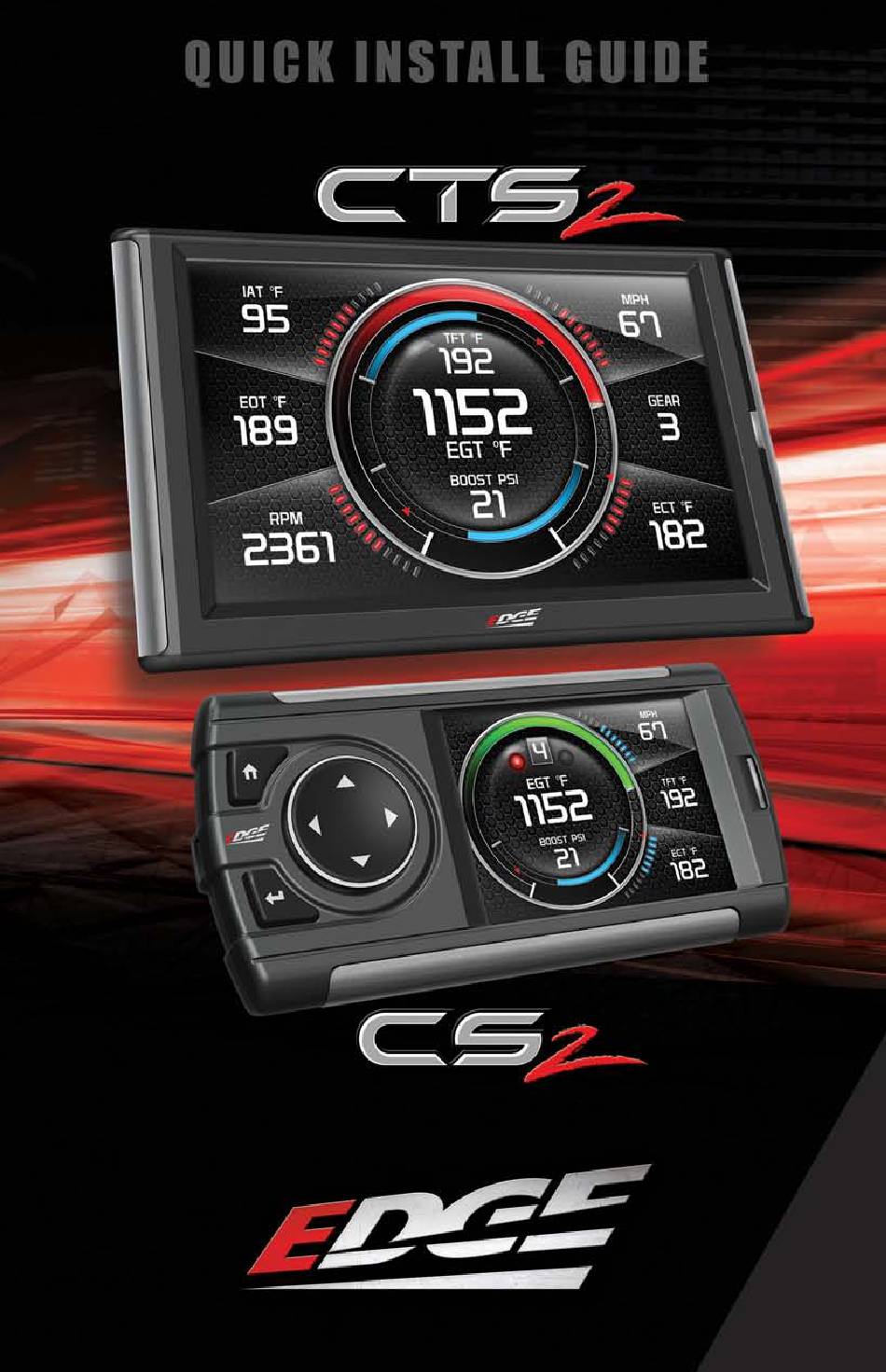

- Page 2 CS2/CTS2 QUICK INSTALL INSTRUCTIONS SUPPLIED IТEMS CS2 or CTS2 Device ■ Arkon Windshield Mount ■ ■ OBDII/HDMI СаЫе USB СаЬlе ■ • Alcohol Wipe ■ Zip Tie Packet Step 1: Locate 08D1/ Port LOCATE ТНЕ OBDII PORT о The OBDII port is а 16-pin connector like the illustration to the right.
- Page 3 OBDII port, and route the саЫе under the dash, out the side panel, up between the door seal trim and the edge of the dash. Tuck the саЫе back as far as you сап as you route the HDMI end up to the dash.
- Page 4 (CTS2) or press the ENТER button (CS2). Step5: Position and Lock the Device...
- Page 5 Step 6: Position and Viewing Placement VERIFY POSITION AND VIEWING PLACEMENT After you've locked the mount and the device is in place оп your windshield, sit back in your driver's seat and make sure the viewing angle is as desired. Check to make sure the device does not create а...
- Page 6 Ье used to exit out of а menu screen. Arrow Buttons - Use the Left/Right buttons to toggle between selected gauge screens. When оп а gauge screen, оп ап Attitude CS2, the up/down buttons аге used to adjust power levels up/down. The lnsight CS2 сап also employ the up/down buttons to adjust EFILIVE ог...
- Page 7 CTS2 INТERFACE/NAVIGATION...
- Page 8 CTS2 LAYOUT Notification/Control Center ТаЬ - Press this upper tab to reveal notifications, adjust power levels and more. ТаЬ will light up to notify you of апу pending notifications such as alerts, maintenance items, backdown (Attitude), and regen status (for diesel vehicles with particulate filters). Pull-Up Main Menu - Press this lower tab to reveal the CTS2 Main Menu.
- Page 9 Check out the performance chips and programmers we offer.
