Walker T27i Operator's Manual page 13

T27i
Donaldson
Air Cleaner
Air Intake Hose
Fuel Pickup
Line
Air Filter
Restriction Gauge
EVAP Line
Roll Over Valve
Fuel Gauge
Fuel Tank
Precleaner
Tube
Electronic Control
Unit (ECU)
Jackshaft
Turbine
Precleaner
PTO Gearbox
Dipstick
RH Transmission
Lockout Lever
30 Amp
Circuit Breaker
PTO
Clutch Lever
Positive (+)
Battery Cable
Negative (-)
Battery Cable
Air Cleaner
Cover
RH Steering Lever
Battery
Spring / Dampener

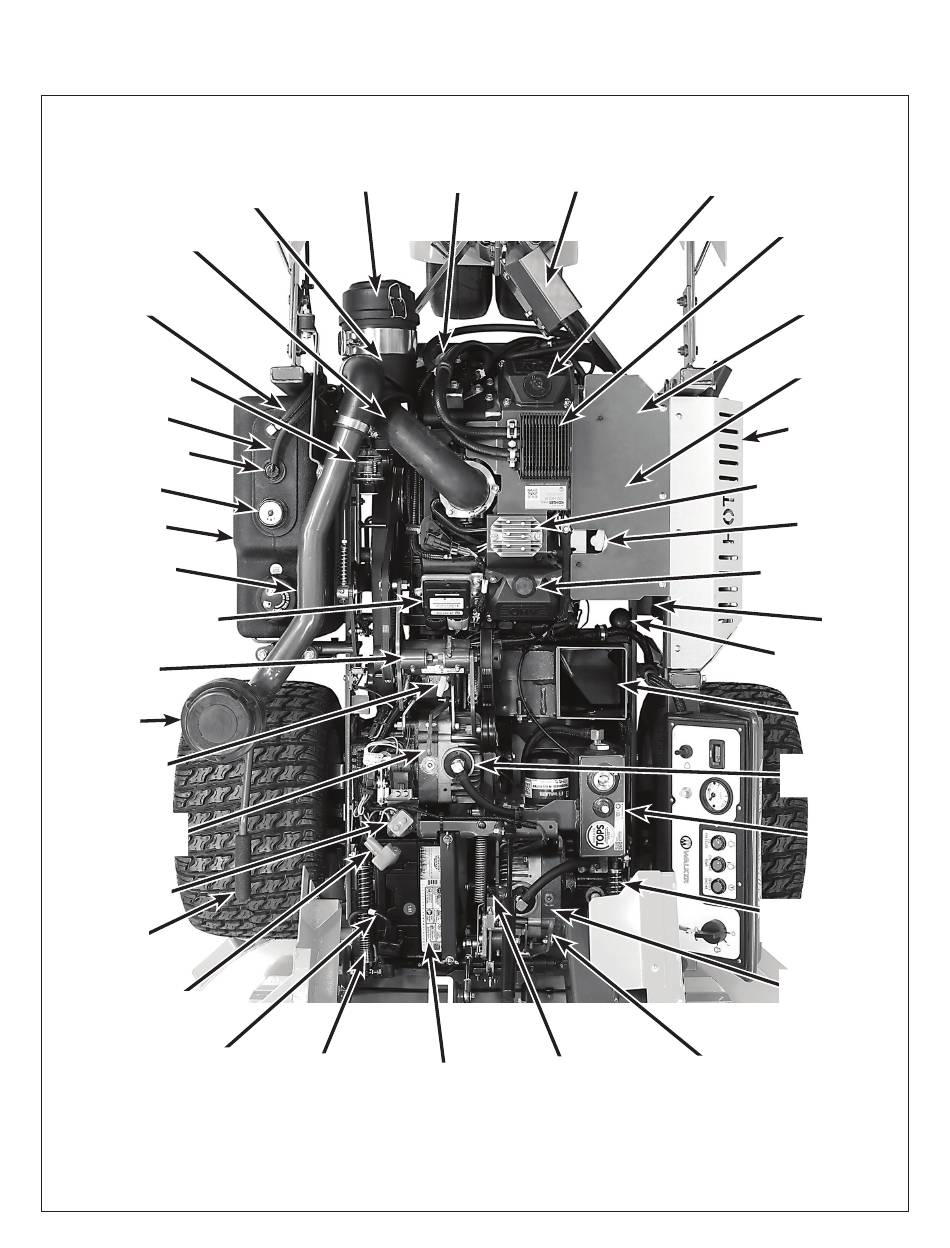

Top View (Engine Compartment)
Fuel Pump Module
Fuel
(Not Visible)
Filter
Neutral Safety
Switch
Component Identification
Oil Fill
Oil Cooler
Exhaust Grass
Shield
Throttle Linkage
(Not Visible)
Muffler Heat
Shield
Voltage Regulator /
Rectifier
Oil Dipstick
Rubber Bumper
(Catcher Support)
Muffler
Rubber Bumper
(Body Support)
GHS Blower
RH Hydrostatic
Transmission
TOPS
Reservoir
LH Steering Lever
Spring / Dampener
LH Hydrostatic
Transmission
LH Transmission
Lockout Lever
Oil
