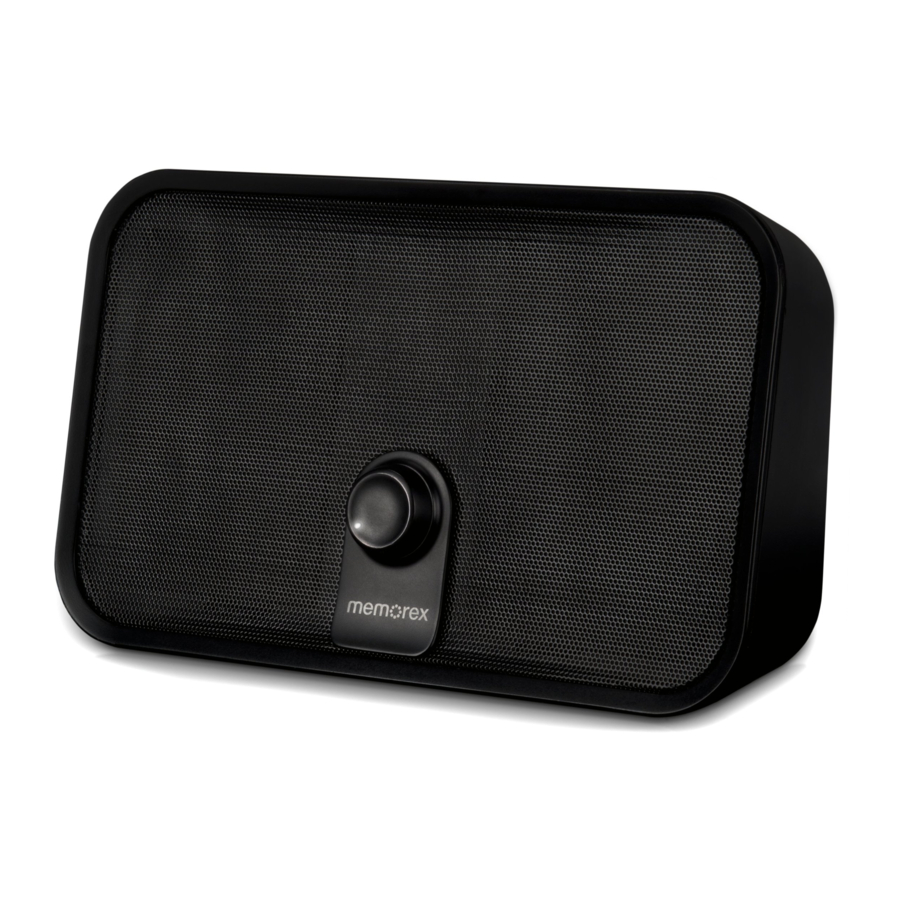

Memorex MW550 - Wireless Bluetooth Speaker Manual

Please read these instructions completely before operating this product.

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Users of this product are cautioned not to make modifications or changes that are not approved by Imation Corp, doing so may void the compliance of this product and may result in the loss of the user's authority to operate the equipment.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT.

SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14.
    To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place objects filled with water, such as a vase, on the apparatus.
15. The AC mains plug is used as the power disconnect device and it should remain readily accessible and operable during intended use. In order to completely disconnect the apparatus from power, the mains plug should be completely removed from the AC outlet socket.
16.
    To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine, fire or other heat sources.

HOW TO USE THE MEMOREX MW550

The MW550, with built-in Bluetooth^® wireless technology, makes it easy to take your tunes anywhere. Its full stereo audio produces rich, balanced sound with enhanced bass for a music experience you can hear AND feel. The built-in microphone lets you take hands-free calls when your phone is connected to the speaker, and the USB charging port powers your device when connected to AC power. With easy to use controls and super simplified device pairing, your music is just a beat away. Please follow these operational instruction carefully. Save them for future reference.

AC CONNECTION

Insert the small end of the AC adapter in the DC IN 5V Jack located on the rear of the unit. Plug the other end into a wall outlet having 9 120V AC, 60Hz.

Notes:

• Remove the DC plug and the AC-IN plug to disconnect the AC adapter when not in use.
• Only use the supplied DC 5V, 2A AC adapter. Other voltages could damage the product.

BATTERY INSTALLATION

You can use to batteries to power this unit.

1. Open the Battery Compartment Door on the bottom of the unit by sliding i n direction 1, then lifting it off in direction 2.
2. Insert four (4) "AA" size batteries (not included) into the battery compartment. Be sure to check that the "+" and "-" ends of the batteries are aligned with the engraving inside the battery compartment. Alkaline batteries are recommended for the longest playing time.
3. Close the battery compartment cover.
   Note: The AC adapter must be disconnected from the DC IN 5V Jack in order for the unit to operate on battery power.

OPERATION

Pair a Bluetooth-Enabled Mobile Device

You can listen to your music from a Bluetooth-enabled mobile device wirelessly through this system.

Pair the mobile device as follows:

1. Turn on the speaker by turning the Power/Volume Dial clockwise until it clicks
2. Turn your mobile device on and place it within 30 feet (without barrier) of the speaker.
3. Press the Source Button until the Bluetooth Indicator LED is illuminated (blue).
4. Press the Pair Button once. You will hear a single tone. The speaker is now in Pairing mode. The Bluetooth indicator LED will blink 3 quickly. Upon successful connection a tune will be heard through the speaker. If pairing and connection fail or are not completed within 3 minutes, the speaker will exit pairing mode, indicated by a long beep.
5. Refer to your mobile device for instructions on enabling Bluetooth. It is usually located in the Settings menu or similar location. After enabling, "Memorex MW550" will appear as an option. Select it and your mobile device will pair with the Memorex MW550. When successfully paired the Bluetooth Indicator LED will change from blinking to solidly illuminated.

Notes:

• Bluetooth connection will not terminate when toggling between Bluetooth and Line-In sources.
• When powered on and in Bluetooth source mode, the system will automatically connect to the most recently connected device if available.

Listen to Music

1. Turn your mobile device on and place it within 30 feet (without barrier) of the speaker.
2. Turn on the speaker by turning the Power/Volume Dial clockwise until it clicks. If the system has recently been connected with the mobile device, the Bluetooth Indicator LED will illuminate solidly, indicating the connection. If you have not paired the mobile device or if the indicator blinks slowly, pair them as described in the Pair a Bluetooth-Enabled Mobile Device section above.
3. Play your music on your mobile device and the sound will be heard through the speaker.
4. The volume can be controlled using the volume setting on your mobile device, or via the Power/Volume Dial. Turn the knob clockwise to increase volume, counter-clockwise to reduce volume or to turn off the speaker.

Listen to Music Using Line-In Source

Insert one end of the audio cable (not included) into the LINE OUT jack on your external audio unit and the other end into the Line-In Jack on the rear of this unit. With the output device and the MW550 turned on, press the Source Button to select Line-In mode. The Line-In Indicator LED will be lit. The external audio unit's output will be heard through the system's speaker. If you wish to listen to the Bluetooth-enabled mobile device, press the Source Button to select Bluetooth mode. The Bluetooth LED will illuminate.

To maximize audio quality and minimize sound distortion, set your personal digital music device volume to high and use the volume control on the MW550 speaker to adjust the listening level.

Sleep Mode

• The unit enters sleep mode after 20 minutes without a line-in signal or audio streaming signal from a Bluetooth connection. The Bluetooth connection is terminated and indicated by a tone.
• During sleep mode, the unit will automatically power up if a line-in audio signal is detected. It can also be reactivated by pressing any buttons, or by rotating the Power/Volume Dial to "off", then "on" again.
  Note: The system will automatically try to connect to the most recently connected device if available.

Speakerphone

INCOMING CALLS

1. When a call is received with the mobile device paired and the speaker on, the music will pause and a ring tone will be emitted through the speaker.
2. Press the Button to answer the call. The speaker and built-in microphone will activate automatically.
3. Press the Button twice to end the call and return to your music.

Notes:

• Simply answer your phone as you normally would to bypass speakerphone operation.
• If the phone rings and you do not want to answer, press and hold the Button. The call will be declined and the music will continue.

OUTGOING CALLS

1. Press the Button twice to automatically redial the last phone number on your smartphone.

CURRENT CALLS

1. Press Button once during a phone call to activate or deactivate speakerphone functionality.
2. Press Button twice to end a call and return to your music.

Charging

Insert one end of a USB cable (not included) into the USB port on the external audio device and the other end into the "USB Charge Only" Port on the rear of this unit. The USB Port provides one 5V (1 amp) to charge the external audio device, even when the MW550 unit is powered off.

• Charge capabilities are deactivated when the unit is operating in battery mode.

MAINTAINING YOUR SYSTEM FOR CONTINUED ENJOYMENT

• Turn OFF the MW550 and your external audio/mobile device when not in use to extend battery life.
• Keep the unit away from direct sunlight and excessive heat.
• Protect your furniture when placing the unit on wood and lacquered finishes.

SPECIFICATIONS AND COMPATIBILITY

Power Source (AC): 5V, 2A adapter

Power Source (DC): 4 "AA" size 1.5V batteries

Speaker: 2 x 4 ohms

Output Power: 2 x 2W

Weight: approx. 2.2 lbs

Dimensions: 10.12 in (L) x 6.02 in (H) x 3.31 in (W)

Compatibility: compatible with v2.1 Bluetooth devices

LOCATION OF CONTROLS

Front/top image and back of unit image

1. Power/Volume Dial
2. Button
3. Pair Button
4. Source Button
5. Line-In Indicator LED
6. Microphone
7. Bluetooth Indicator LED
8. Line-In Jack
9. DC IN 5V Jack (AC ADAPTER PART NO. E18-00810-02*)
10. USB Charge Port
11. Battery Compartment (bottom of unit) (BATTERY COVER PART NO. P14-00289-01*)

* Consumer Replaceable Part (See end of guide to order.)

Product Warranty

LIMITED WARRANTY
Imation warrants this product against defects for 90 days from the date of original purchase. Imation shall not be responsible for any lost data or other incidental or consequential damages related to this product. Some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may have other rights which may vary from one state, province or country to another.

PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR IMATION ENTERPRISES CORP.

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT: WWW.MEMOREX.COM
OR CONTACT CUSTOMER SERVICE: For customers calling within the United States and Canada, call 1-877-363-6673

Imation Enterprises Corp 1
Imation Way, Oakdale, MN 55128-3414 USA

© Imation Corp www.memorex.com

Memorex and the Memorex logo are trademarks of Imation Corp and its affiliates. The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license. All other trademarks are the property of their respective owners.
For additional setup, operating assistance or an electronic version of this user manual, please visit www.memorex.com
For consumer replaceable part(s), verify part number(s) then contact our parts and accessory fulfillment center at: 1-800-321-6993

73952779 A
