Summary of Contents for Memorex MX-BTS800

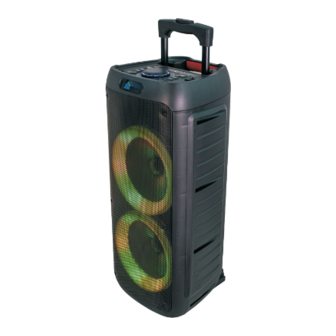

- Page 1 Dual 8 inch Portable Bluetooth Speaker MX-BTS800 MODEL OPERATION MANUAL ENGLISH...
-
Page 2: Special Notes
SPECIAL NOTES FOR YOUR RECORDS CAUTION For your assistance in reporting this unit in RISK OF ELECTRIC case of loss or theft, please record below the SHOCK DO NOT OPEN model number and serial number which are CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE located at the bottom of the unit. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the appliance is operated. Retain Instructions: The safety and operating instructions should be well kept for future reference. Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 SAFETY INSTRUCTIONS 17. Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer. Unauthorized substitutions may result in fire, electric shock or other hazards. 18. Damage Requiring Service: The appliance should be serviced by qualified service personnel when: •...
- Page 5 Symbols Symbol English Explanation The symbol indicates class II equipment The symbol indicates AC voltage The symbol indicates DC voltage For indoor use only The symbol indicates energy efficiency marking CAUTION The battery used, please refer for further information to the user manual The symbol indicates polarity of d.c.
-
Page 6: Device Specification
Included Main Unit Manual AC Adaptor Device Specification Power (PMPO) 600 W Bluetooth version 5.0, Range to 10 meters Speaker output 30 Wx2 Power source AC input 100-240 V～ 50/60 Hz DC output 16 V 3 A Mic Jack 6.3 mm Aux-in Jack 3.5 mm Battery... - Page 7 Locations of Control (Top) DC IN AUX IN CHARGE MIC 1 MIC 2 MODE PAIR ECHO LIGHT TREBLE+ TREBLE- 1. Charge Indicator 2. DC In 3. AUX In 4. USB Slot 5. MIC 1 Jack 6. MIC 2 Jack 7. Mode/ Light 8.
- Page 8 17. LED Display...
- Page 9 Power Source The unit has a built-in lead-acid battery. Recharge it as below: Charging by the supplied AC/DC Adapter. Connect the small plug from the AC/DC Adapter to the DC IN JACK on the top control panel of the unit. Connect the AC/DC Adapter to the wall outlet having AC 100-240V 50/60Hz.
-
Page 10: Aux In Operation
Adjust the volume to a desired level using the Master Volume control. Short press the top of Master Volume button to select between “Master Volume” or “Microphone Volume” on the display, then turn the Master Volume button to adjust the desired volume. Press the EQ button to switch to desired music rhythm and the LED ... - Page 11 USB Operation DC IN AUX IN CHARGE MIC 1 MIC 2 Power on the unit as previous procedure. Insert a USB device (only with .mp3 audio files) to the USB Port and the LED display will show “USB”. (The USB device is not included) The unit will start to playback automatically.
-
Page 12: Microphone Connection
Retractable Handle Press the button on the top of the handle to release the lock then pull it out or return it back as illustrated as below: Microphone Connection DC IN AUX IN CHARGE MIC 1 MIC 2 Connect a microphone(not included) into Mic jack 1 ① as well as Mic jack 2 ②... -
Page 13: Bluetooth Operation
Power on the unit as previous procedure. Power on the external Bluetooth device, activate the Bluetooth and enter searching mode. The pairing name of the unit “MX-BTS800” will appear, select it and make pairing. After successful pairing, you will hear a connection tone. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power Power is not on; press the Power Button to turn power on. Confirm that the AC adapter is connected securely to the back of unit. ... - Page 15 Printed in China...
