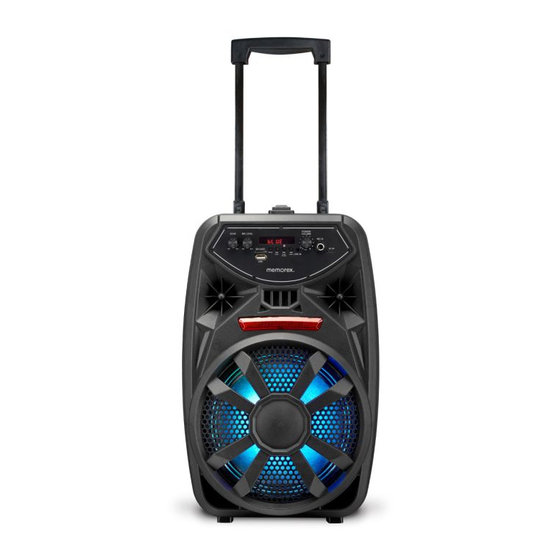

Memorex MSB380 User Manual

Portable Wireless Tailgate Speaker
User's Guide for Model MSB380 v2782-01
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding - type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. When the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
FCC Warnings
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
Features
• Bluetooth 5.0 wireless - range 60 ft.
• Voice prompts announce speaker functions
• Single 8" speaker
• Retractable pull handle and wheels
• LED display
• Digital FM radio with auto scan
• Microphone input
• Microphone echo control
• 3.5mm Line In
• Micro SD and USB media ports - supports MP3
file format
• Built-in rechargeable battery
• Battery life: approx. 2.5 hrs at 50% volume
Includes
• USB cable for battery recharge
• User's Guide
Carry Handle
a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains
completely, the mains plug should be disconnected from the mains socket
outlet completely.
• WARNING: Shock hazard - Do Not Open.
• CAUTION: Use of controls or adjustments or performance of procedures
other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any
type of soft, porous, or sensitive finish. As with any rubber compound made
with oils, the feet could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a piece of glass
between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Do not ingest battery, chemical burn hazard.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the
like.
• Lithium batteries, like all rechargeable batteries, are recyclable and should
be recycled or disposed of according to state and local guidelines. They
should never be disposed of in normal household waste and they should never
be incinerated, as they might explode. Contact your local government for
disposal or recycling practices in your area.
Overview
Control Panel
Echo: Adjust microphone echo effect.
1.
2. Microphone Volume: Adjust microphone
volume level.
3. Display: Shows battery level, FM radio
frequency, audio track info, and source info for
the speaker.
Power/Volume: Turn to power ON and adjust
4.
volume level.
5. Microphone Input: When in use, the
microphone will always be heard, regardless of
the source input.
6. DC Power Input & Charge Indicator LED:
Use to charge the internal battery and power
the speaker.
1 2
Retractable
Pull Handle
Wheels
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
Micro SD Card Port
7.
8. USB Media Port
9. Mode: Press to change audio source between
Bluetooth, Line In, and FM. Press and hold for
5 seconds to turn voice prompts ON/OFF. Press
twice quickly to turn the light ON/OFF.
10.
tracks (BLUETOOTH/USB) or radio presets (FM).
Long press to scan for the next available FM
radio station (FM).
/ Pair/
11.
to a Bluetooth device (BLUETOOTH). Press to
play or pause tracks (BLUETOOTH, USB). Press
and hold to auto-scan in FM mode.
12. Line In (3.5mm Input)
3
7 8 9 10 11 12
WARNING: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing
to qualified service personnel.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts.
WARNING: This product can expose you
to chemicals including lead, which is known
to the State of California to cause cancer and
birth defects or other reproductive harm. For
more information go to www.P65Warnings.
ca.gov. This product meets and complies
with required Federal product guidelines.
/Tune± : Short press to skip audio
: Press and hold to begin pairing
4 5 6
