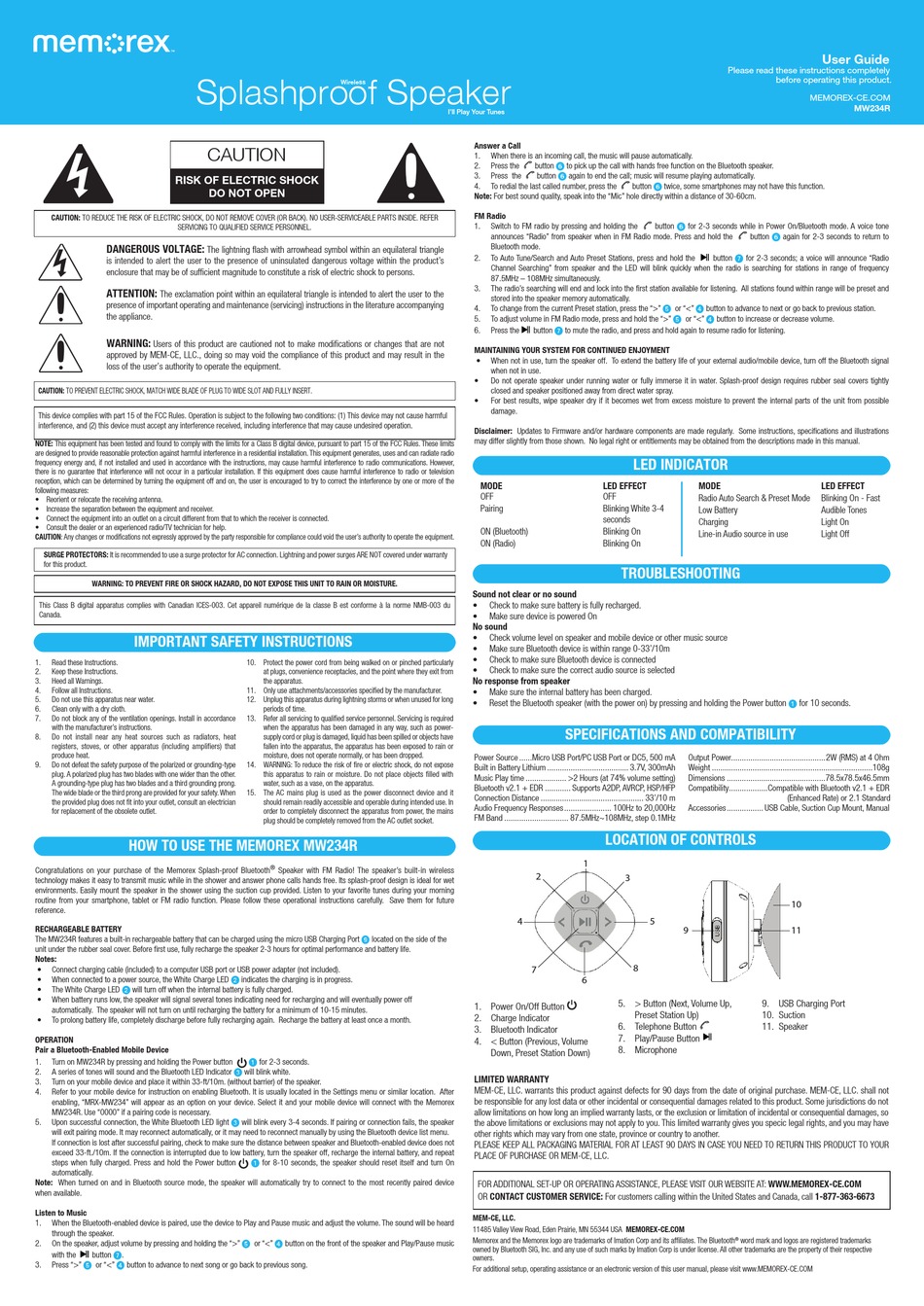

Memorex MW234R User Manual

Splashproof Speaker
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
Users of this product are cautioned not to make modifications or changes that are not
approved by MEM-CE, LLC., doing so may void the compliance of this product and may result in the
loss of the user's authority to operate the equipment.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty
for this product.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. When
the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
HOW TO USE THE MEMOREX MW234R
Congratulations on your purchase of the Memorex Splash-proof Bluetooth
technology makes it easy to transmit music while in the shower and answer phone calls hands free. Its splash-proof design is ideal for wet
environments. Easily mount the speaker in the shower using the suction cup provided. Listen to your favorite tunes during your morning
routine from your smartphone, tablet or FM radio function. Please follow these operational instructions carefully. Save them for future
reference.
RECHARGEABLE BATTERY
The MW234R features a built-in rechargeable battery that can be charged using the micro USB Charging Port
unit under the rubber seal cover. Before first use, fully recharge the speaker 2-3 hours for optimal performance and battery life.
Notes:
• Connect charging cable (included) to a computer USB port or USB power adapter (not included).
• When connected to a power source, the White Charge LED
• The White Charge LED will turn off when the internal battery is fully charged.
v
• When battery runs low, the speaker will signal several tones indicating need for recharging and will eventually power off
automatically. The speaker will not turn on until recharging the battery for a minimum of 10-15 minutes.
• To prolong battery life, completely discharge before fully recharging again. Recharge the battery at least once a month.
OPERATION
Pair a Bluetooth-Enabled Mobile Device
1. Turn on MW234R by pressing and holding the Power button
2. A series of tones will sound and the Bluetooth LED Indicator
3. Turn on your mobile device and place it within 33-ft/10m. (without barrier) of the speaker.
4. Refer to your mobile device for instruction on enabling Bluetooth. It is usually located in the Settings menu or similar location. After
enabling, "MRX-MW234" will appear as an option on your device. Select it and your mobile device will connect with the Memorex
MW234R. Use "0000" if a pairing code is necessary.
5. Upon successful connection, the White Bluetooth LED light
will exit pairing mode. It may reconnect automatically, or it may need to reconnect manually by using the Bluetooth device list menu.
If connection is lost after successful pairing, check to make sure the distance between speaker and Bluetooth-enabled device does not
exceed 33-ft./10m. If the connection is interrupted due to low battery, turn the speaker off, recharge the internal battery, and repeat
steps when fully charged. Press and hold the Power button
automatically.
Note: When turned on and in Bluetooth source mode, the speaker will automatically try to connect to the most recently paired device
when available.
Listen to Music
1. When the Bluetooth-enabled device is paired, use the device to Play and Pause music and adjust the volume. The sound will be heard
through the speaker.
2. On the speaker, adjust volume by pressing and holding the ">"
with the button V.
3. Press ">" or "<" button to advance to next song or go back to previous song.
y x
Wireless
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long
periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14. WARNING: To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. Do not place objects filled with
water, such as a vase, on the apparatus.
15. The AC mains plug is used as the power disconnect device and it
should remain readily accessible and operable during intended use. In
order to completely disconnect the apparatus from power, the mains
plug should be completely removed from the AC outlet socket.
®
Speaker with FM Radio! The speaker's built-in wireless
located on the side of the
X
indicates the charging is in progress.
v
for 2-3 seconds.
u
will blink white.
w
will blink every 3-4 seconds. If pairing or connection fails, the speaker
w
for 8-10 seconds, the speaker should reset itself and turn On
u
or "<" button on the front of the speaker and Play/Pause music
y x
I'll Play Your Tunes
Answer a Call
1. When there is an incoming call, the music will pause automatically.
2. Press the button to pick up the call with hands free function on the Bluetooth speaker.
U
3. Press the button again to end the call; music will resume playing automatically.
U
4. To redial the last called number, press the
Note: For best sound quality, speak into the "Mic" hole directly within a distance of 30-60cm.
FM Radio
1. Switch to FM radio by pressing and holding the
announces "Radio" from speaker when in FM Radio mode. Press and hold the
Bluetooth mode.
2. To Auto Tune/Search and Auto Preset Stations, press and hold the
Channel Searching" from speaker and the LED will blink quickly when the radio is searching for stations in range of frequency
87.5MHz – 108MHz simultaneously.
3. The radio's searching will end and lock into the first station available for listening. All stations found within range will be preset and
stored into the speaker memory automatically.
4. To change from the current Preset station, press the ">"
5. To adjust volume in FM Radio mode, press and hold the ">"
6. Press the button to mute the radio, and press and hold again to resume radio for listening.
V
MAINTAINING YOUR SYSTEM FOR CONTINUED ENJOYMENT
• When not in use, turn the speaker off. To extend the battery life of your external audio/mobile device, turn off the Bluetooth signal
when not in use.
• Do not operate speaker under running water or fully immerse it in water. Splash-proof design requires rubber seal covers tightly
closed and speaker positioned away from direct water spray.
• For best results, wipe speaker dry if it becomes wet from excess moisture to prevent the internal parts of the unit from possible
damage.
Disclaimer: Updates to Firmware and/or hardware components are made regularly. Some instructions, specifications and illustrations
may differ slightly from those shown. No legal right or entitlements may be obtained from the descriptions made in this manual.
MODE LED EFFECT
OFF OFF
Pairing Blinking White 3-4
seconds
ON (Bluetooth) Blinking On
ON (Radio) Blinking On
TROUBLESHOOTING
Sound not clear or no sound
• Check to make sure battery is fully recharged.
• Make sure device is powered On
No sound
• Check volume level on speaker and mobile device or other music source
• Make sure Bluetooth device is within range 0-33'/10m
• Check to make sure Bluetooth device is connected
• Check to make sure the correct audio source is selected
No response from speaker
• Make sure the internal battery has been charged.
• Reset the Bluetooth speaker (with the power on) by pressing and holding the Power button
SPECIFICATIONS AND COMPATIBILITY
Power Source ......Micro USB Port/PC USB Port or DC5, 500 mA
Built in Battery Lithium ...................................... 3.7V, 300mAh
Music Play time ................... >2 Hours (at 74% volume setting)
Bluetooth v2.1 + EDR ............ Supports A2DP, AVRCP, HSP/HFP
Connection Distance ................................................ 33'/10 m
Audio Frequency Responses ...................... 100Hz to 20,000Hz
FM Band .............................. 87.5MHz~108MHz, step 0.1MHz
LOCATION OF CONTROLS
1
2
4
7
6
5. > Button (Next, Volume Up,
1. Power On/Off Button
2. Charge Indicator
6. Telephone Button
3. Bluetooth Indicator
7. Play/Pause Button
4. < Button (Previous, Volume
8. Microphone
Down, Preset Station Down)
LIMITED WARRANTY
MEM-CE, LLC. warrants this product against defects for 90 days from the date of original purchase. MEM-CE, LLC. shall not
be responsible for any lost data or other incidental or consequential damages related to this product. Some jurisdictions do not
allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you. This limited warranty gives you specic legal rights, and you may have
other rights which may vary from one state, province or country to another.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEM-CE, LLC.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT: WWW.MEMOREX-CE.COM
OR CONTACT CUSTOMER SERVICE: For customers calling within the United States and Canada, call 1-877-363-6673
MEM-CE, LLC.
11485 Valley View Road, Eden Prairie, MN 55344 USA MEMOREX-CE.COM
Memorex and the Memorex logo are trademarks of Imation Corp and its affiliates. The Bluetooth
owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license. All other trademarks are the property of their respective
owners.
For additional setup, operating assistance or an electronic version of this user manual, please visit www.MEMOREX-CE.COM
Please read these instructions completely
before operating this product.
button twice, some smartphones may not have this function.
U
button for 2-3 seconds while in Power On/Bluetooth mode. A voice tone
U
button again for 2-3 seconds to return to
U
button for 2-3 seconds; a voice will announce "Radio
V
or "<" button to advance to next or go back to previous station.
y x
or "<" button to increase or decrease volume.
y x
LED INDICATOR
MODE
Radio Auto Search & Preset Mode
Low Battery
Charging
Line-in Audio source in use
for 10 seconds.
u
Output Power............................................2W (RMS) at 4 Ohm
Weight ...........................................................................108g
Dimensions ..............................................78.5x78.5x46.5mm
Compatibility ..................Compatible with Bluetooth v2.1 + EDR
(Enhanced Rate) or 2.1 Standard
Accessories ................. USB Cable, Suction Cup Mount, Manual
3
10
5
9 11
8
9. USB Charging Port
Preset Station Up) 10. Suction
11. Speaker
word mark and logos are registered trademarks
®
User Guide
MEMOREX-CE.COM
MW234R
LED EFFECT
Blinking On - Fast
Audible Tones
Light On
Light Off
