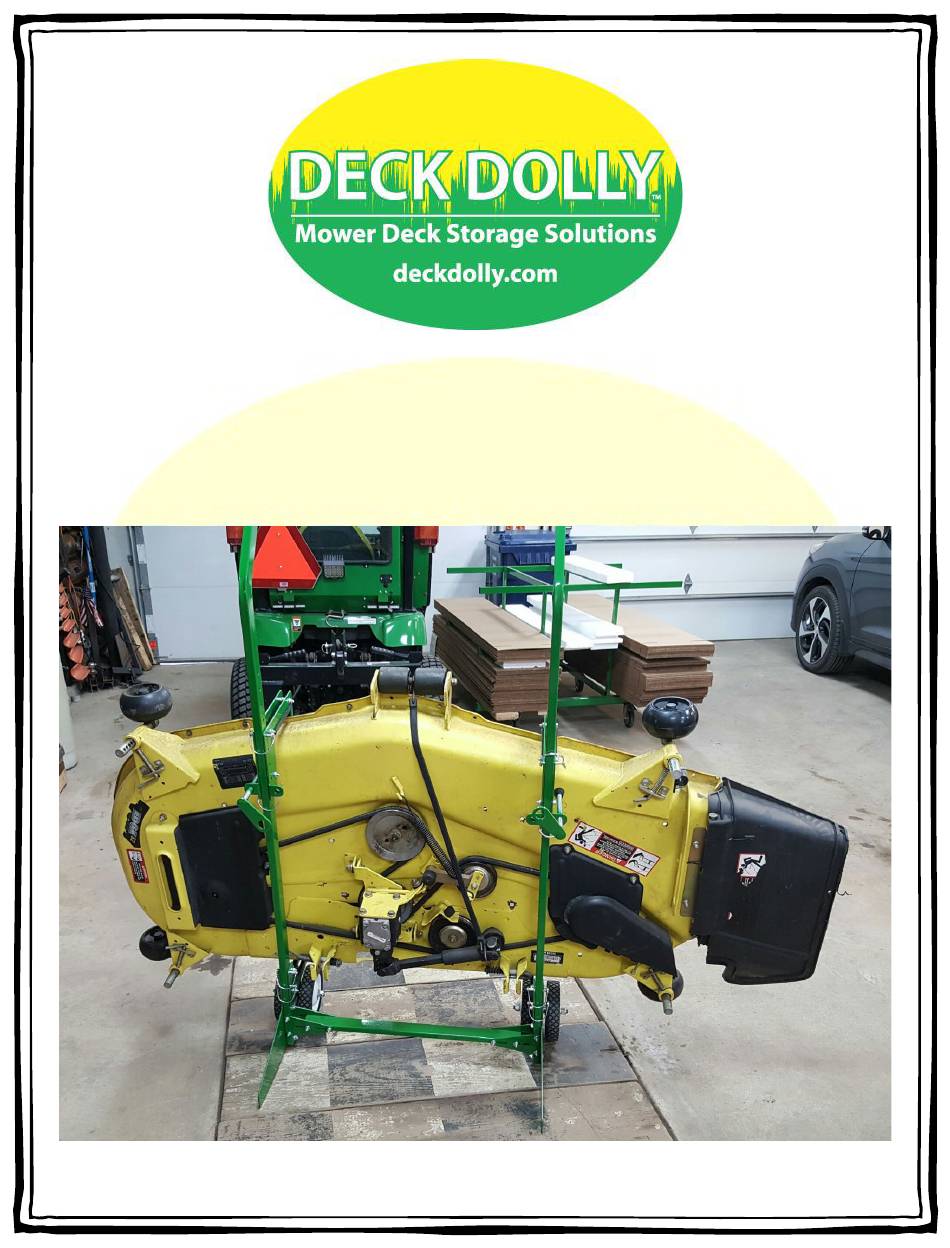

- Page 1 ASSEMBLY INSTRUCTIONS Universal DeckDolly To be used with any and all mower decks.
- Page 2 IMPORTANT!! After assembly, please be sure to operate the Deck Dolly on level, hard surfaces only. Standing the Deck Dolly in the upright position on soft or uneven surfaces may lead to injury and/or damage. Note: These instructions show the dolly with optional dual wheels.
- Page 3 4 Bottom Brackets with 4 5/16 pins, 4 pcs of trim loc, 6 ¼ x 1 ½ bolts with nuts, 6 aluminum spacers. ← 2 Uprights. 4 Top Brackets with 4 1/4 pins, 4 pcs of trim loc, 6 ¼ x 1 ½ bolts with nuts, 6 aluminum spacers, 2 deck stabilization bolts with 2 rubber caps.
- Page 4 STEP 1 Preassemble the bottom cross support tube and brackets as shown with ¼ “x 2 ¼” bolts while leaving the nuts loose. STEP 2 Preassemble the Base Plates and Tires as shown below. The regular nut should be between the wheel and base and the serrated nut should be to the outside of the base plate.
- Page 5 STEP 4 Assemble the pieces as shown below tight with ¼”x2 ¼” bolts. Use a square to insure the legs are parallel to each other and tighten. Width is not a concern. STEP 5 The Base Plate may be tightened when assembled as shown below with 5/16” x 1 ¼” bolts.
- Page 6 Check all bolts for tightness before operating the Deck Dolly. You may now lay the dolly over the deck with the lower brackets under the rear of...
