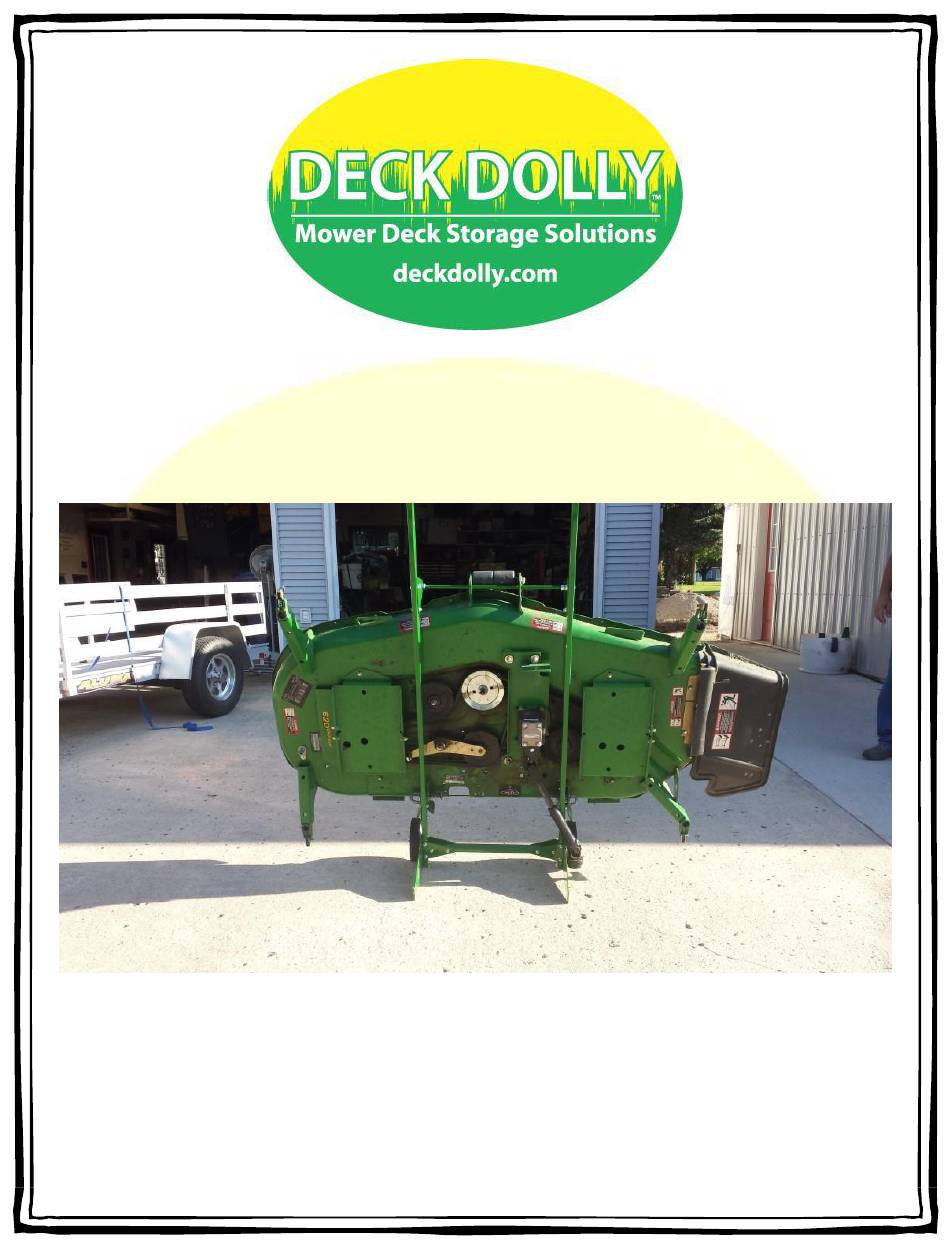

- Page 1 ASSEMBLY INSTRUCTIONS (To be used with the following models) JD 2320, 2520, 2720, 2305 and others...
- Page 2 IMPORTANT!! After assembly, please be sure to operate the Deck Dolly on level, hard surfaces only. Standing the Deck Dolly in the upright position on soft or uneven surfaces may lead to injury and/or damage. Assembly Instructions 1) Open packaging and inspect to ensure contents are complete.
- Page 3 2 Uprights with end plugs. 2- JD 2x20 Brackets Installs with 4 - 5/16” x 1 ¼” bolts...
- Page 4 Preassemble the bottom cross support tube and brackets as shown with ¼ “x 2 ¼” bolts while leaving the nuts loose. 3) Preassemble the Upper Deck Support as shown below with 4 1/2” nuts. 4) Preassemble the Base Plates and Tires as shown below. The regular nut should be on the inside and the serrated nut should be to the outside of the base plate.
- Page 5 5) Tap ends caps into Uprights as shown below. 6) Assemble the pieces as shown below hand tight with ¼”x2 ¼” bolts. 7) The Base Plate may be tightened when assembled as shown below with 5/16” x 1 ¼” bolts.
- Page 6 9) With the Deck Dolly preassembled, lay the unit over the deck and align and insert the J-hooks into the large holes. You may now tighten those bolts.
- Page 7 You should now align and tighten the lower cross support tube when the brackets are centered in the lower deck mount. Check all bolts for tightness before operating the Deck Dolly. Please take care to watch the lower deck wheels when operating the Dolly for the first time.
