- Page 1 MINOX NV 400 Anleitung Instruction Notice d’utilisation...
- Page 2 MINOX NV 400 • Deutsch • English • Français Achtung! Attention! entfernen Sie bitte bei Tageslicht niemals den Objektivschutzdeckel. never remove the lens cap in daylight. n’enlevez jamais le couvercle de l’objectif en plein jour.
- Page 3 This User’s Manual will advise you on how to obtain the best performance results from your MINOX Night-Vision scope. We hope this MINOX Night-Vision scope will give you a great deal of pleasure and always keep you perfectly in the picture!
- Page 4 MINOX NV 400...
-
Page 5: Table Of Contents
Contents Introduction Get familiar with your Night-Vision scope Page 4 Control elements General information Operating instructions Use in daylight Inserting batteries Switching on Switching off Use at night Switching on Adjusting Infra-red illuminator Switching off Safe keeping Important information Advice on care Page 3 Troubleshooting The Night-Vision scope does not switch on... -
Page 6: Get Familiar With Your Night-Vision Scope

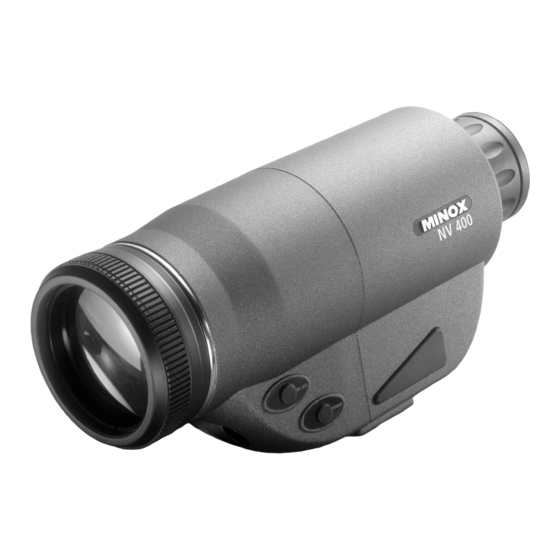

Get familiar with your Night-Vision scope Control elements 1. Objective lens 2. Front focusing ring 3. Image intensifier tube 4. Eyepiece and focusing ring 5. Battery compartment 6. Infra-red illuminator power switch 7. Main power switch 8. Infra-red illuminator General Notes This top quality optical-electronic product is fitted with a Generation 2+ residual light amplifier. -
Page 7: Use At Night
fault, because the Night-Vision scope always switches off gradually. For use at night Switching on Remove the lens cap. Actuate the main switch. The gre- en LED lights up. When you look through the eyepiece you will see a green, fluorescing image. Adjustment Aim at an object situated at a distance of 20-30 m (22-33 yds). -
Page 8: Advice On Care
- Never disassemble the scope. - Always insert the batteries as specified and observe correct poling. - Do not use an external power supply. - Remove the batteries from the battery compartment if the device is not being used for a prolonged period. - Always cover the lens with the lens cap when not in use. -
Page 9: The Image Diminishes Or Disappears
The image tube is defective The image tube is subject to natural wear. If the light amplification of the image tube becomes less, please send your Night-Vision scope directly to the MINOX Customer Service where a new image tube can be inserted, if neccessary. -
Page 10: Technical Data
Infrared illuminator Tripod thread Battery Dimensions Weight Order number Accessories MINOX NV 400 2,0 x 1.58 inch / 40 mm 3 groups in 5 elements Generation 2+ 40 Ip/mm 1 x CR 123 A 3.35 x 6.89 x 2.36 inch / 175 x 85 x 65 mm approx. -
Page 11: Customer Service
Customer Service For your notes You can reach our Customer Service under the following address, where they will be pleased to help you: MINOX GmbH Walter-Zapp-Straße 4 D-35578 Wetzlar, Germany Tel.: +49 (0) 6441 / 917-0 Fax: +49 (0) 6441 / 917-612 info@minox.com... - Page 12 Änderungen in Konstruktion und Ausführung vorbehalten. Design subject to alterations without notice. Sous réserve de modifications. MINOX GmbH Walter-Zapp-Str. 4 D - 35578 Wetzlar, Germany Tel.: +49 (0) 6441 / 917-0 Fax: +49 (0) 6441 / 917-612 e-mail: info@minox.com www.minox.com...
