Summary of Contents for Shengmilo MX04

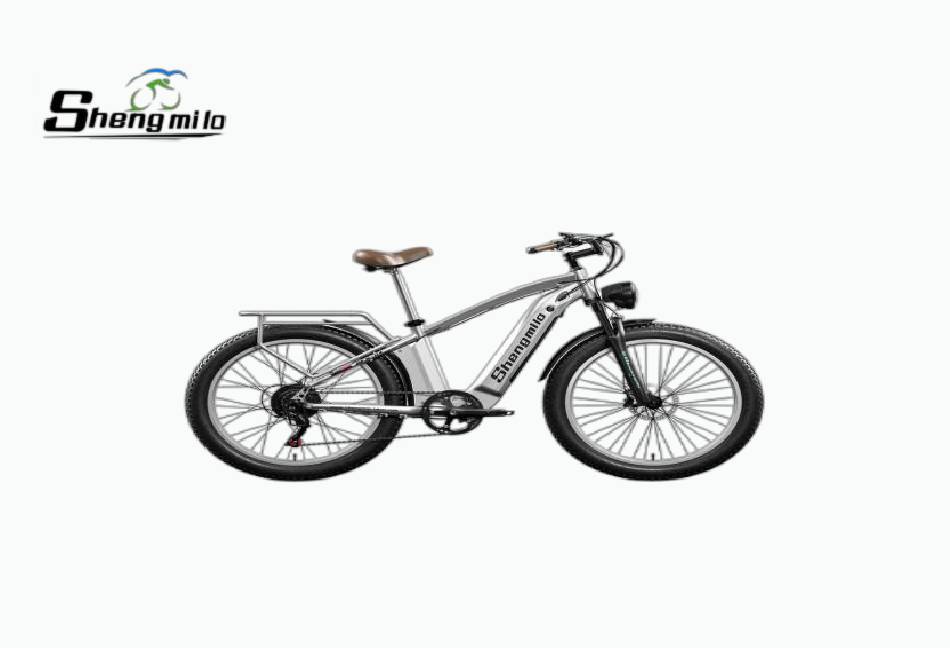

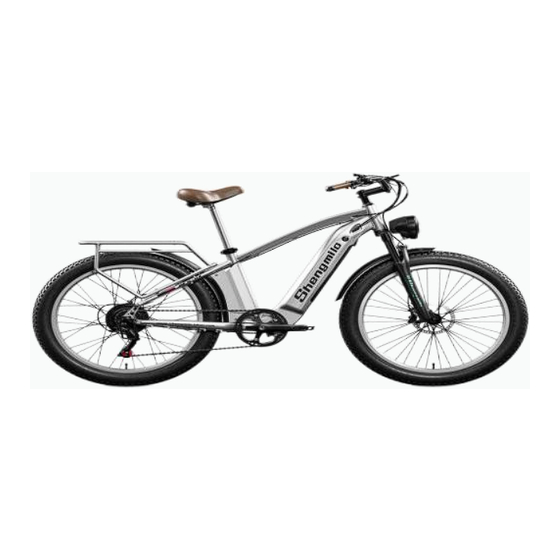

  • Page 1 MX04 Owner's Manual www.shengmilo-bikes.com...
  • Page 2: About Manual

    This manual contains details of the product, information on its operation and maintenance, and other helpful tips for owners. Read it carefully and familiarize yourself with the Shengmilo MX04 before using it to ensure safe use, reduce the risk of damage and premature wear, and prevent accidents.
  • Page 3 Visit www.shengmilo-bikes.com to download the latest version. Assembly and first adjustment of your Shengmilo MX04 require special tools and skills, and it is recommended that this be performed by a trained bicycle mechanic if possible.
  • Page 4: Table Of Contents

    Headlight & Front Fender Installation .................................13 Adjust the Seat Height ......................................16 Safety Checklist ........................................17 Shengmilo E-Bike Use and Care ..................................18 Basic Display Settings ......................................18 Battery Charging ........................................21 Riding Limitations ....................................... 28 Maintenance .........................................29 Limited Warranty .........................................31 WARRANTY WILL COVER .....................................31...
  • Page 5: Bike Specication

    LCD Display Bike Specication Shimano Shift Lever Power Switch & Information Thumb Throttle Trumpet Saddle Head Tube Battery LED Headlight Motor Front Suspension Fork / Front Shock Rear Brake Front Brake Controller Rear Derailleur...
  • Page 6 A - Total Length B - Handlebar Height C - Wheelbase D - Min Seat Height E - Max Seat Height F - Chain Stay Length G - Standover Height H - Wheel Diameter I - Head Tube Length J - Handlebar Length...
  • Page 7 48V 2.0 A smart charger 48 V 15Ah lithium battery Battery Charger Sine wave brushless control 37 –56 miles (65- 90KM pedal assist Controller Range mode) 500W BAFANG Geared Hub Motor KING-METER waterproof LCD display Motor Display Total Payload 400 lbs (180kg) Weight 57 lb (26KG) Capacity...
  • Page 8: Bike Assembly Guide

    2 . Reduce the weight of the e-bike to make it easier to maneuver the bike while assembling. 3 . Avoid battery damage during the assembly process. Go to page to learn about removing and charging the battery. * Please go to our YouTube channel “ Shengmilo Ebike” to watch our assembly tutorial videos!
  • Page 9: Recommended Torque Values

    Recommended Torque Values Recommended Torque( NM) Hardware Location Handlebar 12-18 Stem 12-18 Saddle 12-18 Front Wheel(For bikes with bolts on front wheel) 15-22 Rear wheel 30-38 Bottom Bracket Parts 30-50 Pedals 28-33 Disk Mounting Bolts Disk Caliper Mount Crank Bolts 32-36 Rear Derailleur Cable Pinch Front Derailleur Clamp...
  • Page 10: Assembly Instructions

    Assembly Instructions ◆ Handlebar Installation ( 4mm Hex Wrench ) Step 1: Loosen the bolts on your bike stem. Step 2 : Center your handlebars and rotate them to align to the marking pointed to in the below image. Step 3:: Tighten bolts to handlebar stem, but don’t tighten completely as you may want to further adjust the angle later to align more precisely.
  • Page 11: Front Wheel Installation

    ◆ Front Wheel Installation Step 1: Prepare your quick-release skewer for the next step by removing the thumb nut and one of the cone spring. Step 2: Install the quick-release skewer starting from the brake rotor side of the wheel, inserting the quick-release skewer through the hub and then replacing the second cone spring on the other side.Ensure both springs are pointed narrow-side-in towards the wheel hub.
  • Page 12 Step 3 : Tighten the thumb. Step 4 : Align the fork dropouts with the axle of the wheel hub, making sure the dropouts are securely positioned on the axle. Also ensure the brake rotor is properly inserted into the caliper. Step 5 : Tighten the thumb nut until the quick-release lever is held in line with the axle, and then use your palm of your hand to close the quick-release lever.
  • Page 13: Headlight & Front Fender Installation

    Step 6 : Rotate the front wheel. Make sure the quick release skewer lever on the front wheel is fully closed, and check the wheel balance in Pedal- Only Mode. If you notice the riding is imbalanced or the rotation of the front wheel makes noise, it means the bolts were not completely tightened or not aligned horizontally. ◆...
  • Page 14 NOTICE: The bolt extractors can be found in the Shengmilo folding hex key set. 1. Loosen the bolts on the headlights with a PH1 wrench 2. Align the headlight bolt holes with the holes on the fork bracket 3. Set the nut to tighten the bolt...
  • Page 15 Step 2 : Pull one end of the fender brace until the loop at the end is centered in the bracket, reinsert the bolt through the loop at the end of the brace, and tighten completely with a 4mm hex wrench and a 8mm bolt extractor holding the nut.
  • Page 16: Adjust The Seat Height

    Adjust the Seat Height: Open the seatpost quick release lever. Adjust the seatpost height by sliding the seatpost up or down to a height appropriate for your leg length and preferred riding position. Do not extend the seatpost beyond the minimum insertion marking etched onto the seatpost. NOTICE: The seat angle has been preadjusted to factory safety standards.
  • Page 17: Safety Checklist

    Safety Checklist Safety Check Basic Steps o Test front and rear brakes for proper function. o Ensure brake pads are not overworn and are correctly positioned in relation to rims. Brakes o Make sure brake control cables are lubricated, correctly adjusted and display no obvious wear. o Check that brake control levers are lubricated and tightly secured to handlebars.
  • Page 18: Shengmilo E-Bike Use And Care

    Shengmilo E- Bike Use and Care The following table of contents provides general guidance on Shengmilo e-bike variable power assist settings and their effects on both range and perfor- mance. This content will apply broadly to most riders, but multiple factors will affect individual results including rider fitness and weight, terrain, proper maintenance, etc.
  • Page 19 Display Screen ◆ Battery Level Function List Speed Speed Uint Lighting Indication Push-assistance Level Indication Area Range/Time Unit Function List (Check form 1 Text Indication down below)
  • Page 20 P o w e r B u t t o n A b n o r m a l i t y F o r m 1 Display Operation ◆ *Go look on our website: www.shengmilo-bikes.com Owner’s Manual Shengmilo MX04 LCD Display User Manual...
  • Page 21: Battery Charging

    Battery Charging ◆ Charging Procedure for Off-bike Charging Step 1 : Find the keys located on the handlebar and remove them. If you cut them from the handlebars, be careful not to damage any of the wires. NOTICE: Please keep your key and its spare in a safe place. Once lost, they are difficult to copy. Step 2 : Use the key to unlock the battery.
  • Page 22 Step 3 : Safest way to charge your battery Start by plugging the charger into the battery charging port. With the battery inside the bike, place the charger on a flat, safe place and connect the charger's DC output plug (barrel connector )to the charging port on the side of the battery.
  • Page 23 • Longer-than-expected charge time • Strange smell, smoke, or liquid emanating from battery and/or charger • Overheating battery and/or charger Please stop charging and contact www.shengmilo-bikes.com immediately.. ◆ Charging Tips • The battery can be recharged on or off the bike.
  • Page 24 14° Fahrenheit (-10° Celsius) and over 104° Fahrenheit (40° Celsius). • Do not cover the charger when charging. • Keep the battery away from children while charging. • Make sure to only use an approved Shengmilo bike charger purchased directly from www.shengmilo-bikes.com for your specific bike...
  • Page 25 • The Shengmilo bike can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause damage.
  • Page 26 ◆ Charger Care Information Check the charger, charger cables, and battery for damage before beginning each charge. 2. Always charge in a safe area that is cool, dry, indoors, away from direct sunlight, dirt, or debris, in a clear area away from potential to trip on the charging cords, or for damage to occur to the bike, battery, or charging equipment while parked and/or charging.
  • Page 27 Shengmilo MX04 can reach speeds of up to 25 miles per hour with throttle mode, which not only allows you to travel faster but also reassures riders with extra power whenever needed, depending on traffic conditions and rider energy levels. If you are an adventurer who...
  • Page 28: Riding Limitations

    ◆ Pedal-only In this mode, the Shengmilo will perform like a normal bike, as you’ll be riding without any assistance from the motor. This mode is especially useful if you run out of battery, or are looking for more intensive resistance training.
  • Page 29: Maintenance

    3. Shengmilo MX04 can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause problems.
  • Page 30 ◆ Chain Maintenance 1. We recommend cleaning the chain after each ride, especially in rainy and humid environments. Use a dry cloth to wipe the chain and its accessories clean. Use a brush to remove sand and dirt stuck in the chain, along with use warm soapy water if needed. Do not use strong acidic or alkaline cleaning agents (such as rust remover), because these chemicals can damage the chain.
  • Page 31: Limited Warranty

    Warranty Info •All Shengmilo e-bikes are covered under our manufacturer's 1 year, 6 months, and three months warranty for the original owner against all manufacturing defects (All free Accessories are not covered by warranty service).
  • Page 32: Parts & Components

    • This warranty includes a replacement frame only. Labor charges to changeover parts to replacement frames are not included. • Shengmilo reserves the right to use scratch and dent stock when replacing a frame under this warranty. Frame styles and/or colors not in stock may be replaced with a compatible style and/or color at the discretion of Shengmilo.
  • Page 33 • For the avoidance of doubt, Shengmilo will not be liable and/or responsible for any damage, failure, or loss caused by any unauthorized service or use of unauthorized parts.
  • Page 34: Contact Us

    We are here to help! If you have questions, please: Access Shengmilo’s official website www.shengmilo-bikes.com. Contact us directly by email at support@shengmilo-bikes.com.
