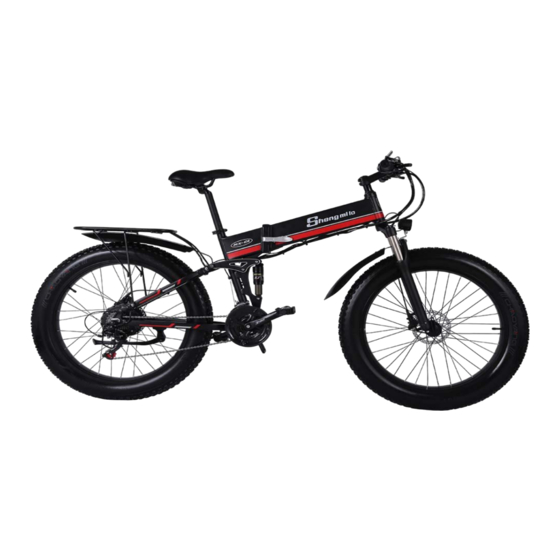

MX01
Owner's Manual
www.shengmilo-bikes.com

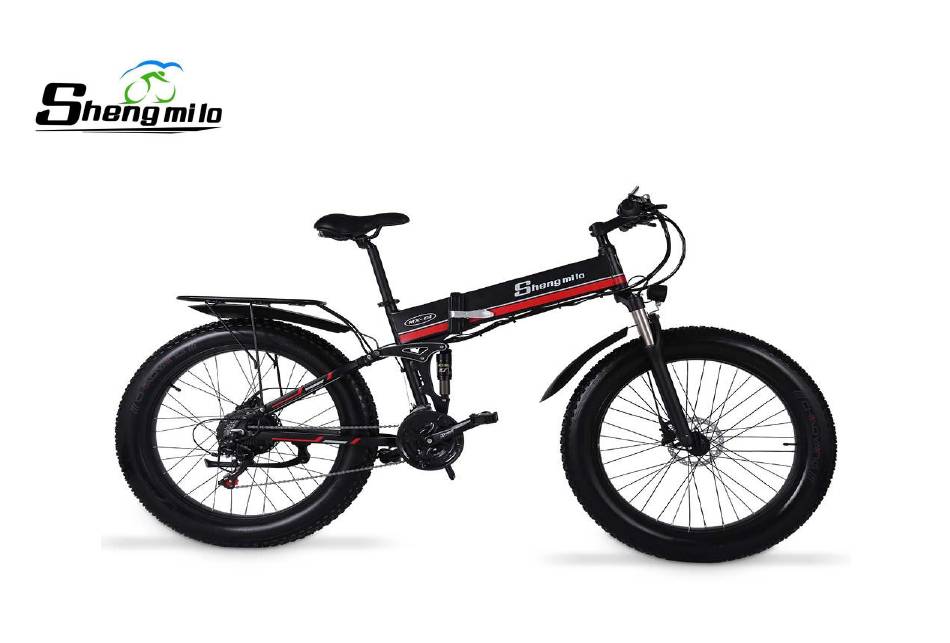

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shengmilo MX01

Summary of Contents for Shengmilo MX01

  • Page 1 MX01 Owner's Manual www.shengmilo-bikes.com...

  • Page 2: About Manual

    This manual contains details of the product, information on its operation and maintenance, and other helpful tips for owners. Read it carefully and familiarize yourself with the Shengmilo MX01 before using it to ensure safe use, reduce the risk of damage and premature wear, and prevent accidents. Be sure to retain this manual as your convenient Shengmilo MX01 information source.

  • Page 3: Table Of Contents

    Assembly Instructions .............................................9 Front Wheel Installation ..........................................10 Safety Checklist ............................................19 Safety Precautions ............................................20 While Riding ..............................................20 Shengmilo E-Bike Use and Care ........................................21 Basic Display Settings ..........................................21 Battery Charging ............................................24 Riding Limitations ............................................29 Maintenance ..............................................30 Front Fork Maintenance ..........................................30...

  • Page 4: Bike Specication

    LCD Display Remote LCD Display Bike Specication Shimano Shift Lever LED Light Switch Throttle Power Switch & Information Saddle Battery Controller Head Tube LED Headlight Rear Brake Front Suspension Fork / Front Shock Motor Front Brake Rear Derailleur Rear Shock...
  • Page 5 76 in A - Total Length 43 in B - Handlebar Height C - Wheelbase 35 in D - Min Seat Height 40 in E - Max Seat Height 21 in F - Chain Stay Length G - Standover Height H - Wheel Diameter I - Head Tube Length 27 i n...
  • Page 6 48V 2.0 A smart charger 48 V 12. 8 Ah lithium battery Battery Charger 40 – 45 m il e s (65- 70K M pe d al as s i s t mo de ) Controller 48/ 22A Range 1000W brushless gear motor 3.5-inch waterproof LCD display Motor Display...

  • Page 7: Bike Assembly Guide

    2 . Reduce the weight of the ebike to make it easier to maneuver the bike while assembling. 3 . Avoid battery damage during the assembly process. Go to page to learn about removing and charging the battery. * Please go to our YouTube channel “ Shengmilo Ebike” to watch our assembly tutorial videos!

  • Page 8: Recommended Torque Values

    Recommended Torque Values Recommended Torque( NM) Hardware Location Handlebar 12-18 Stem 12-18 Saddle 12-18 Front Wheel(For bikes with bolts on front wheel) 15-22 Rear wheel 30-38 Bottom Bracket Parts 30-50 Pedals 28-33 Disk Mounting Bolts Disk Caliper Mount Crank Bolts 32-36 Rear Derailleur Cable Pinch Front Derailleur Clamp...

  • Page 9: Assembly Instructions

    Assembly Instructions Handlebar Installation ( 4mm Hex Wrench ◆ Step 1: Loosen the bolts on your bike stem. Step 2 : Tighten bolts to handlebar stem, but don’t tighten completely as you may want to further adjust the angle later to align more precisely. Test the positioning,and adjust the handlebar to your preferred angle.

  • Page 10: Front Wheel Installation

    Front Wheel Installation ◆ Step 1: Prepare your quick-release skewer for the next step by removing the thumb nut and one of the cone spring. Step 2: Install the quick-release skewer starting from the brake rotor side of the wheel, inserting the quick-release skewer through the hub and then replacing the second cone spring on the other side.Ensure both springs are pointed narrow-side-in towards the wheel hub.
  • Page 11 Step 3 : Tighten the thumb. Step 4 : Align the fork dropouts with the axle of the wheel hub, making sure the dropouts are securely positioned on the axle. Also ensure the brake rotor is properly inserted into the caliper.
  • Page 12 Step 5 : Tighten the thumb nut until the quick-release lever is held in line with the axle, and then use your palm of your hand to close the quick-release lever. Step 6 : Rotate the front wheel. Make sure the quick release skewer lever on the front wheel is fully closed, and check the wheel balance in Pedal- Only Mode. If you notice the riding is imbalanced or the rotation of the front wheel makes noise, it means the bolts were not completely tightened or not aligned horizontally.
  • Page 13 The bolt extractors NOTICE: can be found in the Shengmilo folding hex key set. 1. Loosen the bolts on the headlights with a PH1 wrench 2. Align the headlight bolt holes with the holes on the fork bracket 2. Set the nut to tighten the bolt...
  • Page 14 Step 2 : Pull one end of the fender brace until the loop at the end is centered in the bracket, reinsert the bolt through the loop at the end of the brace, and tighten completely with a 4mm hex wrench and a 8mm bolt extractor holding the nut.
  • Page 15 ◆ Seat Adjustment Adjust the Seat Height: Open the seatpost quick release lever. Adjust the seatpost height by sliding the seatpost up or down to a height appropriate for your leg length and preferred riding position. Do not extend the seatpost beyond the minimum insertion marking etched onto the seatpost.
  • Page 16 Adjust the Seat Angle: Step 1 : Loosen the seat adjustment bolt beneath the seat. Move the seat backward or forward and tilt to adjust the angle within the limit markings etched on the seat rail. Do not exceed the limit markings, to ensure the safety of yourself and the bike. Step 2 : Tighten the seat adjustment bolt.
  • Page 17 Rear Rack Installation (4mm Hex Wrench) ◆ Step 1: There are a total of 2 bolts for installing the rear rack. In order to better identify them, we preinserted them in the proper place. Please remove them with a 4mm hex wrench. Step 2: Align the holes on rear rack with the holes on seatstay.
  • Page 18 Pedals Installation (15mm wrench) ◆ Make sure your pedals are installed on the correct side, as installing on the wrong side will damage the threads. Indicators for the right pedal (R) and the left pedal (L) can be found in two places: the stickers on the plastic cover, and the bottom of the pedal threads.

  • Page 19: Safety Checklist

    Safety Checklist Safety Check Basic Steps o Test front and rear brakes for proper function. o Ensure brake pads are not overworn and are correctly positioned in relation to rims. Brakes o Make sure brake control cables are lubricated, correctly adjusted and display no obvious wear. o Check that brake control levers are lubricated and tightly secured to handlebars.

  • Page 20: Safety Precautions

    Safety Precautions The following safety notes provide additional information on the safe operation of your Shengmilo MX01 and should be closely reviewed. Improper operation or failure to confirm correct installation, compatibility, and maintenance of any component or accessory may result in serious injury or death.

  • Page 21: Shengmilo E-Bike Use And Care

    Shengmilo E- Bike Use and Care The following table of contents provides general guidance on Shengmilo e-bike variable power assist settings and their effects on both range and perfor- mance. This content will apply broadly to most riders, but multiple factors will affect individual results including rider fitness and weight, terrain, proper maintenance, etc. While Shengmilo hopes and believes you will thoroughly enjoy your e-bike, no guarantees of universal performance characteristics for all owners can be given.
  • Page 22 Display Screen ◆ Information on Display Location Power Level Speed Display Area: Maximum speed MAX, average speed Unit MPH, KM/H The meter will calculate the true speed based on the wheel diameter and signal data. Vehicle Mode: Walk boost mode; Cruise: constant speed cruise mode;...
  • Page 23 Display Operation ◆ Operation Directions Turn on bike Press and hold MODE (3)until power engages Press and release up arrow Increase pedal assist (PAS) level Decrease pedal assist (PAS) level Press and release down arrow Toggle odometer, trip odometer Press and release MODE Toggle current speed ("SPEED”), Press and hold up MODE and arrow...

  • Page 24: Battery Charging

    Battery Charging Charging Procedure for Off-bike Charging ◆ Step 1 : Find the keys located on the handlebar and remove them. If you cut them from the handlebars, be careful not to damage any of the wires. NOTICE: Please keep your key and its spare in a safe place. Once lost, they are difficult to copy. Step 2 : Please pull out the lock of the frame from the bottom to the top, and then pull the lock on the frame from the inside out.
  • Page 25 Step 4:The LCD display on the handlebars of your bike from Shengmilo features a battery charge level indicator. Once one bar is left on display, users should charge the battery as soon as possible. When the battery is fully depleted, the last bar will flash, warning the user to charge the battery as quickly as possible.
  • Page 26 Step 4 : Safest way to charge your battery Start by plugging the charger into the battery charging port. With the battery inside the bike, place the charger on a flat, safe place and connect the charger's DC output plug (barrel connector 2) to the charging port on the side of the battery.
  • Page 27 Celsius) and over 104° Fahrenheit (40° Celsius). • Do not cover the charger when charging. • Keep the battery away from children while charging. • Make sure to only use an approved Shengmilo bike charger purchased directly from www.shengmilo-bikes.com for your specific bike serial number.
  • Page 28 • The Shengmilo bike can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause damage.

  • Page 29: Riding Limitations

    ◆ In this mode, the Shengmilo will perform like a normal bike, as you’ll be riding without any assistance from the motor. This mode is especially useful if you run out of battery, or are looking for more intensive resistance training.

  • Page 30: Maintenance

    2. Fully charge the battery after each use, no matter how much power is used. This will prolong the battery life. If the battery is not used for a long time, store the battery with a full charge and charge it once a month. 3. Shengmilo MX01 can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause problems.

  • Page 31: Limited Warranty

    • This warranty includes a replacement frame only. Labor charges to changeover parts to replacement frames are not included. • Shengmilo reserves the right to use scratch and dent stock when replacing a frame under this warranty. Frame styles and/or colors not in stock may be replaced with a compatible style and/or color at the discretion of Shengmilo.

  • Page 32: Parts & Components

    • For the avoidance of doubt, Shengmilo will not be liable and/or responsible for any damage, failure, or loss caused by any unauthorized service or use of unauthorized parts. • The Battery is not warranted from damage resulting from power surges, use of an improper charger, improper maintenance, or another such as misuse, normal wear, or water damage.

  • Page 33: Contact Us

    We are here to help! If you have questions, please: Access Shengmilo’s official website www.shengmilo-bikes.com. Contact us directly by email at support@shengmilo-bikes.com.
