  • Page 1 X13SAV-LVDS USER'S MANUAL Revision 1.0b...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 The motherboard comes in a mini-ITX form factor and supports both DC12V and ATX power input. Built with the Intel Q670E chipset, the X13SAV-LVDS holds a capacity of 64GB of DDR4 Non-ECC SODIMM memory in two slots. The X13SAV-LVDS is optimized for high- performance, high-end computing platforms that address the needs of next generation server applications that require small form factor hardware.
  • Page 4 Super X13SAV-LVDS User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: Marketing@supermicro.com (General Information) Support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 5: Table Of Contents

    Preface Table of Contents Chapter 1 Introduction 1.1 Checklist ..........................8 Quick Reference .......................11 Quick Reference Table ......................12 Motherboard Features .......................14 1.2 Processor and Chipset Overview ..................17 1.3 Special Features ........................17 Recovery from AC Power Loss ..................17 1.4 System Health Monitoring ....................18 Onboard Voltage Monitors ....................18 Fan Status Monitor with Firmware Control ...............18 Environmental Temperature Control .................18...
  • Page 6 Super X13SAV-LVDS User's Manual General Guidelines for Optimizing Memory Performance ..........32 DIMM Installation ......................33 DIMM Removal .........................33 2.5 Rear I/O Ports ........................34 2.6 Front Control Panel ......................38 2.7 Connectors .........................43 Power Connections ......................43 Headers ..........................45 2.8 Jumper Settings .........................52 How Jumpers Work ......................52 2.9 LED Indicators ........................57...
  • Page 7 Preface 4.6 Security ..........................102 4.7 Boot ..........................106 4.8 Save & Exit ........................108 4.9 MEBx ..........................110 Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes ..................111 A.2 Additional BIOS POST Codes ..................112 Appendix B Software B.1 Microsoft Windows OS Installation ...................113 B.2 Driver Installation ......................115 B.3 SuperDoctor 5 .........................116...

  • Page 8: Checklist

    Introduction Congratulations on purchasing your computer motherboard from an industry leader. Supermicro motherboards are designed to provide you with the highest standards in quality and performance. In additon to the motherboard, several important parts that are included in the retail box are listed below.

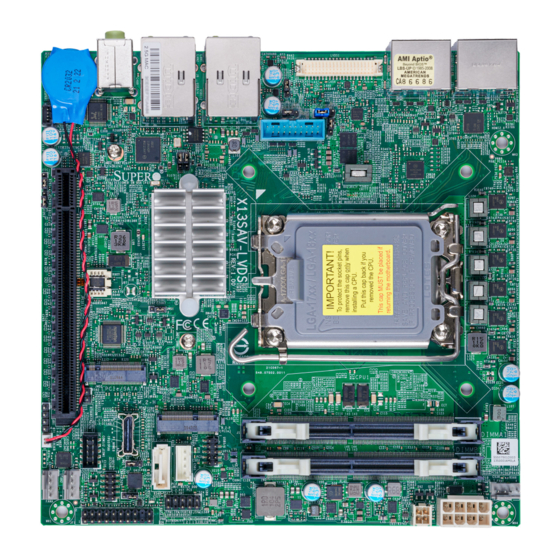

  • Page 9 Chapter 1: Introduction Figure 1-1. X13SAV-LVDS Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.
  • Page 10 Super X13SAV-LVDS User's Manual Figure 1-2. X13SAV-LVDS Motherboard Layout (not drawn to scale) LVDS1 JRF1 JAUDIO1 HDMI1.4/DP HDMI2.0/DP JLCDPWR1 JPL1 LAN2 LAN1 JRF2 USB3/4 USB1/2 USB7/8 JMD2_SRW2 DESIGNED IN USA CPU1 Intel Q670E PCH JBT1 JNS1 JMD2 JMD1_SRW1 (PCIe) JMD1 M.2-P (PCIe)

  • Page 11: Quick Reference

    Chapter 1: Introduction Quick Reference JPL1 LAN2 LAN1 JAUDIO1 JRF1 USB3/4 USB1/2 HDMI 1.4/DP HDMI 2.0/DP JPL2 LVDS1 LVDS1 JRF1 JAUDIO1 HDMI1.4/DP HDMI2.0/DP JLCDPWR1 JPL1 JSPKR1 JLCDPWR1 JRF2 LAN2 LAN1 JRF2 USB3/4 USB1/2 USB7/8 JMD2_SRW2 USB7/8 JMD2_SRW2 DESIGNED IN USA JI2C1 CPU1 JI2C2...

  • Page 12: Quick Reference Table

    Super X13SAV-LVDS User's Manual Quick Reference Table Jumper Description Default Setting (*) JBT1 CMOS Clear Open (Normal) C1, JI SMB to PCIe Slots Enable/Disable Pins 2-3 (Disabled) JLCDPWR1 LVDS Panel VCC Power 3.3V/5V Pins 1-2 (3.3V) JPAC1 Audio Enable Pins 1-2 (Enabled)
  • Page 13 Chapter 1: Introduction Connector Description JTPM1 Trusted Platform Module/Port 80 Connector LAN1, LAN2 LAN Ports LVDS1 Low Voltage Differential Signaling (LVDS) Connector MH1 - MH4 Mounting Holes P1_NVME0 I-SATA0/1/2/3 Ports (via OCuLink Connector) USB1/2, 3/4 Back Panel USB 3.2 Gen2 x1 Ports USB5/6 Front Accessible USB 2.0 Ports USB7/8...

  • Page 14: Motherboard Features

    Up to 64GB of DDR4 Non-ECC SODIMM memory with speeds of up to 3200 MT/s in two memory slots DIMM Size • Up to 4GB, 8GB, 16GB, 32GB Note: For the latest CPU/memory updates, refer to our website at http://www.supermicro.com/products/motherboard. Chipset • Intel PCH Q670E Chipset Expansion Slots •...
  • Page 15 Chapter 1: Introduction Motherboard Features BIOS • 256Mb AMI BIOS SPI Flash BIOS ® • ACPI 6.0, Plug and Play (PnP), SPI dual/quad speed support, and Real Time Clock (RTC) wake up Power Management • ACPI power management • S3, S4, S5 •...
  • Page 16 Super X13SAV-LVDS User's Manual Figure 1-3. System Block Diagram PCIe5.0_x16 PCIe x16 SLOT 32.0GT/s INTEL SVID IMVP9.1 PCIe4.0_x4 M.2 M KEY 16.0GT/s LGA1700 Digital port 1 Display Port DDI 1 DDR4 (CHA) DIMMA1 Digital port 2 3200MHz Display Port DDI 2...

  • Page 17: Processor And Chipset Overview

    With the support of the new Intel Microarchitecture 10nm Process Technology, the X13SAV-LVDS dramatically increases system performance for a multitude of medical and automation applications. The Intel PCH Q670E chipset support the following features: •...

  • Page 18: System Health Monitoring

    Super X13SAV-LVDS User's Manual 1.4 System Health Monitoring This section describes the health monitoring features of the motherboard. The motherboard has an onboard System Hardware Monitoring chip that supports system health monitoring. Onboard Voltage Monitors An onboard voltage monitor will scan the voltages of the onboard chipset, memory, CPU, and battery continuously.

  • Page 19: Acpi Features

    Supermicro website. 1.6 Power Supply The X13SAV-LVDS motherboard supports both +12V DC and ATX power input. Either option requires an 8-pin 12V connection to the JPV1 header, with an ATX power signal input requiring an additional connection using PN: CBL-PWEX-1063/1066 between header JPWR1 and the 24-pin power connector of an ATX power supply.

  • Page 20: Serial Port

    Super X13SAV-LVDS User's Manual 1.7 Serial Port The Super I/O (NCT5525D) provides a high-speed, 16550 compatible serial communication port (UART), which support serial infrared communication. The UART includes send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system.

  • Page 21: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 22: Processor And Heatsink Installation

    Thermal grease is pre-applied on a new heatsink. No additional thermal grease is needed. • Refer to the Supermicro website for updates on processor support. • All graphics in this manual are for illustrations only. Your components may look different.
  • Page 23 Chapter 2: Installation 2. Gently push down the load lever to release and lift it, then lift the load plate to open it completely. Lever lock 3. Use your thumb and your index finger to hold the CPU. Align the small triangle maker and notches on the CPU to the corresponding triangle maker and notches on the CPU load bracket.
  • Page 24 Super X13SAV-LVDS User's Manual 6. Close the load plate with the CPU inside the socket. Gently push the load lever down to the lever locks. Lever lock Attention! You can only install the CPU inside the socket in one direction. Make sure that it is properly inserted into the CPU socket before closing the load plate.

  • Page 25: Installing A Cpu Heatsink

    Chapter 2: Installation Installing a CPU Heatsink Note 1: The installation described in this section is for reference only. The actual instal- lation steps may vary depending on the CPU heatsink model. Refer to the heatsink instruction for more details. Note 2: Graphic drawings included in this manual are for reference only.
  • Page 26 Super X13SAV-LVDS User's Manual 3. Attach the backplate into the mounting holes around the CPU socket on the bottom side of the motherboard. Backplate bottom side Motherboard bottom side Mounting hole Motherboard Top side...
  • Page 27 Chapter 2: Installation 4. Apply the proper amount of thermal grease on the CPU. 5. Place the heatsink on top of the CPU so that the four mounting holes on the heatsink are aligned with those on the retention mechanism. 6.

  • Page 28: Removing The Heatsink

    Super X13SAV-LVDS User's Manual Removing the Heatsink Warning: We do not recommend that the CPU or heatsink be removed. However, if you do need to remove the heatsink, follow the instruction below to uninstall it to avoid damaging the CPU or other components.

  • Page 29: Motherboard Installation

    Chapter 2: Installation 2.3 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.

  • Page 30: Installing The Motherboard

    Super X13SAV-LVDS User's Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis, if applicable. 2. Locate the mounting holes on the motherboard. See the previous page for the location. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 31: Memory Support And Installation

    Memory Support The X13SAV-LVDS supports up to 64GB of DDR4 Non-ECC SODIMM memory with speeds of up to 3200 MT/s in two memory slots. Refer to the table below for the recommended DIMM population order and additional memory information.

  • Page 32: General Guidelines For Optimizing Memory Performance

    Super X13SAV-LVDS User's Manual General Guidelines for Optimizing Memory Performance • DIMM slots must be populated in the following order: DIMMA1, DIMMB1. • It's recommended to use DDR4 memory of the same type, size, and speed. • Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.

  • Page 33: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Install the desired number of SODIMMs into the memory slots, starting with DIMMA1 and then DIMMB1. 2. Align the key on the bottom of the SODIMM module against the receptive point on the memory slot. Take note of the notches on the side of the DIMM module and of the locking clips on the socket to avoid causing damage.

  • Page 34: Rear I/O Ports

    Super X13SAV-LVDS User's Manual 2.5 Rear I/O Ports See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. LVDS1 JRF1 JAUDIO1 JLCDPWR1 HDMI1.4/DP HDMI2.0/DP JPL1 LAN2 LAN1 JRF2 USB3/4 USB1/2...
  • Page 35 Chapter 2: Installation HDMI and DP Port Two High Definition Multimedia Interface (HDMI) ports are on the I/O back panel. This connector is used to display both high definition video and digital sound through an HDMI- capable display. HDMI 2.0 allows faster frame rates and is backward compatbile with previous HDMI versions.
  • Page 36 Super X13SAV-LVDS User's Manual Audio Ports The green jack on the I/O back panel audio port is the Line Out connection and the pink jack is the Mic In connection. HD Audio Pin Definitions Color Definition Green Line Out Pink Mic In 1.
  • Page 37 Chapter 2: Installation Universal Serial Bus (USB) Ports There are four USB 3.2 Gen2 x1 ports (USB1/2, 3/4). The motherboard also has one front access USB 2.0 headers (USB5/6) and one front access USB 3.2 Gen1 x1 header (USB7/8). The onboard headers can be used to provide front side USB access with a cable (not included).

  • Page 38: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 39 Chapter 2: Installation Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS -- see Chapter 4). To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer.
  • Page 40 Super X13SAV-LVDS User's Manual Overheat (OH)/Fan Fail Connect an LED cable to pins 7 and 8 of the Front Control Panel to use the Overheat/Fan Fail LED connections. The LED on pin 8 provides warnings of overheating or fan failure.
  • Page 41 Chapter 2: Installation HDD LED The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to show hard drive activity status. Refer to the table below for pin definitions. HDD LED Pin Definitions (JF1) Pins Definition...
  • Page 42 Super X13SAV-LVDS User's Manual NMI Button The non-maskable interrupt (NMI) button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions. NMI Button Pin Definitions (JF1) Pins Definition Control Ground 1. NMI...

  • Page 43: Connectors

    Chapter 2: Installation 2.7 Connectors Power Connections Main ATX Power Supply Connector JPV1 is the 12V DC power connector, a required input for either ATX or 12V DC power source. In addition, when using ATX power, JPWR1 is a necessary connection to the 24-pin ATX power header from the PSU via PN: CBL-PWEX-1063/1066.
  • Page 44 Super X13SAV-LVDS User's Manual 4-pin HDD Power Connector JPH1 is a 4-pin power connector that provides power to onboard HDD devices. Refer to the table below for pin definitions. 4-pin HDD Power Pin Definitions Pin# Definition 1. 4-pin HDD Power Connector...

  • Page 45: Headers

    Chapter 2: Installation Headers Fan Headers There are three 4-pin fan headers on the motherboard. Although pins 1-3 of the fan headers are backward compatible with the traditional 3-pin fans, we recommend you use 4-pin fans to take advantage of the fan speed control via Pulse Width Modulation through the thermal management.
  • Page 46 Super X13SAV-LVDS User's Manual General Purpose I/O Header The JGP1 (General Purpose Input/Output) header is a general purpose I/O expander on a pin header via the SMBus. Each pin can be configured to be an input pin or output pin in 2.54mm pitch.
  • Page 47 Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Go to the following link for more information on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...
  • Page 48 Super X13SAV-LVDS User's Manual LVDS Connector LVDS1 is the LVDS connector. Low-voltage differential signaling (LVDS) is a high-speed digital interface that operates at low power. It is a type of connection that is mostly used with monitors. LVDS Connector Pin Definitions...
  • Page 49 Parallel ATA. Note: For more information on the SATA HostRAID configuration, refer to the Intel SATA HostRAID user's guide posted on our website at https://www.supermicro.com/ support/manuals/. M.2 Slot The motherboard has two M.2 slots (JMD1 and JMD2). M.2 was formerly known as Next Generation Form Factor (NGFF) and serves to replace mini PCIe.
  • Page 50 Pin Definitions Pin# Definition SPEAKER_LN_OUT SPEAKER_LP_OUT SPEAKER_RN_OUT SPEAKER_RP_OUT OCuLink Connector (P1_NVMe0) The X13SAV-LVDS features one internal OCuLink connector offering four SATA ports via break-out cable for additional storage interface. 1. Internal Speaker 2. OCuLink Connector LVDS1 JRF1 JAUDIO1 HDMI1.4/DP JLCDPWR1 HDMI2.0/DP...
  • Page 51 Chapter 2: Installation COM Header The motherboard has one COM header that provides one serial connection (COM1) and supports RS-232 function. COM Port Pin Definitions Pin# Definition Pin# Definition Ground 1. COM Header LVDS1 JRF1 JAUDIO1 HDMI1.4/DP HDMI2.0/DP JLCDPWR1 JPL1 LAN2 LAN1 JRF2...

  • Page 52: Jumper Settings

    Super X13SAV-LVDS User's Manual 2.8 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 53 Chapter 2: Installation Watch Dog Timer Watchdog (JWD1) is a system monitor that can reboot the system when a software application hangs. Close pins 1-2 to reset the system if an application hangs. Close pins 2-3 to generate a non-maskable interrupt (NMI) signal for the application that hangs. Refer to the table below for jumper settings.
  • Page 54 Super X13SAV-LVDS User's Manual LAN1/LAN2 Enable/Disable Use jumper JPL1 to enable or disable LAN port 1 and JPL2 to disable or enable LAN port 2. Refer to the table below for jumper settings. LAN1/2 Enable/Disable Jumper Settings Jumper Setting Definition...
  • Page 55 Chapter 2: Installation LVDS Power Voltage Use the JLCDPWR1 jumper to select the power voltage for the LVDS panel. Make sure that the specifications of the cable is compatible with the panel to prevent damage. LVDS Voltage Selection Jumper Settings Jumper Setting Definition Pins 1-2...
  • Page 56 Super X13SAV-LVDS User's Manual Slot7 PCIe Bifurcation Use JRF1 and JRF2 to adjust the PCIe lane options on Slot 7 expansion slot. The options are x16 or x8x8. PCIe Bifurcation Jumper Settings JRF1 JRF2 Pins 1-2 Pins 1-2 x16 (Default)

  • Page 57: Led Indicators

    Chapter 2: Installation 2.9 LED Indicators LAN LEDs Two LAN ports (LAN 1/2) are located on the I/O back panel of the motherboard. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection.
  • Page 58 Super X13SAV-LVDS User's Manual Power LED LED1 is the Power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

  • Page 59: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 60: No Video

    Super X13SAV-LVDS User's Manual 5. The battery on your motherboard may be old. Check to verify that it still supplies approximately 3VDC. If it does not, replace it with a new one. No Video 1. If the power is on, but you have no video, remove all add-on cards and cables.

  • Page 61: Losing The System's Setup Configuration

    Chapter 3: Troubleshooting 3. Make sure that you are using the correct type of Non-ECC SODIMM DDR4 modules recommended by the manufacturer. 4. Check for bad DIMM modules or slots by swapping a single module among all memory slots and check the results. Losing the System's Setup Configuration 1.
  • Page 62 Super X13SAV-LVDS User's Manual B. If the system becomes unstable before or during OS installation, check the following: 1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as USB flash or media drives.

  • Page 63: Technical Support Procedures

    Before contacting Technical Support, take the following steps. Also, note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.

  • Page 64: Frequently Asked Questions

    Warning: Do not shut down or reset the system while updating the BIOS to prevent possible system boot failure! Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recov- ery instructions, refer to the AMI BIOS Recovery Instructions posted at http://www.

  • Page 65: Battery Removal And Installation

    Chapter 3: Troubleshooting 3.4 Battery Removal and Installation Battery Removal To remove the battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Remove the battery cable at the BT1 connector on the board. 3.

  • Page 66: Returning Merchandise For Service

    Super X13SAV-LVDS User's Manual 3.5 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number.

  • Page 67: Chapter 4 Uefi Bios

    Chapter 4: BIOS Chapter 4 UEFI BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 68: Main Setup

    Super X13SAV-LVDS User's Manual 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.
  • Page 69 Chapter 4: BIOS Memory Information Total Memory This feature displays the total size of memory available in the system.

  • Page 70: Advanced

    Super X13SAV-LVDS User's Manual 4.3 Advanced Use the arrow keys to select the Advanced menu and press <Enter> to access the menu features. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.
  • Page 71 Chapter 4: BIOS High Precision Event Timer Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU.
  • Page 72 Super X13SAV-LVDS User's Manual Power Configuration Watch Dog Function If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on jumper settings when it is expired for more than five minutes. The options are Disabled and Enabled.
  • Page 73 Chapter 4: BIOS • CPU C3 state • CPU C6 state • CPU C7 state • CPU C8 state • CPU C9 state • CPU C10 state • Performance L1 Data Cache • Performance L1 Instruction Cache • Performance L2 Cache •...
  • Page 74 Super X13SAV-LVDS User's Manual Intel (VMX) Virtualization Technology Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disabled and Enabled. Active Processor Cores This feature determines how many processor cores will be activated for each processor package.
  • Page 75 Chapter 4: BIOS Power Limit 2 Override Select Enabled to support rapid power limit (PL2) override. The options are Disabled and Enabled. Power Limit 2 Use this feature to configure the value for Power Limit 2. The value is in milliwatts and the step size is 125mW.
  • Page 76 Super X13SAV-LVDS User's Manual Chipset Configuration  Warning: Setting the wrong values in the following features may cause the system to malfunc- tion. System Agent (SA) Configuration The following information will display: • VT-d: Supported Memory Configuration  Memory Configuration •...
  • Page 77 Chapter 4: BIOS Force Single Rank Select enabled to use only Rank 0 in each DIMM. The options are Disabled and Enabled. Memory Remap Use this feature to enable or disable memory remap above 4GB. The options are En- abled and Disabled. MRC Fast Boot Use this feature to enable or disable fast path through the memory reference code.
  • Page 78 Super X13SAV-LVDS User's Manual Aperture Size Use this feature to set the Aperture size, which is the size of system memory reserved by the BIOS for graphics device use. The options are 128MB, 256MB, 512MB, 1024MB, and 2048MB. DVMT Pre-Allocated...
  • Page 79 Chapter 4: BIOS PEG Configuration  PCIe M.2-H Enable Root Port Use this feature to enable or disable the PCI Express Graphics (PEG) device in the port specified by the user. The options are Disabled and Enabled. Max Link Speed Use this feature to select PCIe support for the device installed in the M.2 slot.
  • Page 80 Super X13SAV-LVDS User's Manual VT-d Select Enabled to activate Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing.
  • Page 81 Chapter 4: BIOS PTN3460 Switch  LVDS Panel Support Use this feature to select the supported IGFX graphics device ouput to the LVDS panel. The options are Disabled, Onboard EDID, and Offboard EDID. If the feature above is set to Onboard EDID or Offboard EDID, the next feature is available for configuration.
  • Page 82 Super X13SAV-LVDS User's Manual Priority of HTTP Boot Instance of Priority 1: Enter a value to set the rank target port. The default is 1. Select IPv4 or IPv6 Use this feature to select the targeted LAN port to boot from. The options are IPv4 and IPv6.
  • Page 83 Chapter 4: BIOS Network Configuration  Network Stack Select Enabled to enable Preboot Execution Environment (PXE) or Unified Extensible Firmware Interface (UEFI) for network stack support. The options are Disabled and Enabled. IPv4 PXE Support Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled. IPv4 HTTP Support Select Enabled to enable IPv4 HTTP boot support.
  • Page 84 Super X13SAV-LVDS User's Manual Enter Configuration Menu Interface Name Interface Type MAC address Host addresses Route Table Gateway addresses DNS addresses Interface ID This feature shows the interface ID for the specified network device. DAD Transmit Count This feature sends Neighbor Solicitation messages while performing a Duplicate Address Detection (DAD) to make sure there is no IP address duplication.
  • Page 85 Chapter 4: BIOS AMT Configuration USB Provisioning of AMT Use this feature to enable or disable USB provisioning. The options are Disabled and Enabled. MAC Pass Through Use this feature to enable or disable the MAC Pass Through function. The options are Disabled and Enabled.
  • Page 86 Super X13SAV-LVDS User's Manual Secure Erase Configuration  Secure Erase mode Select Real to securely erase a solid state drive. The options are Simulated and Real. Force Secure Erase Select Enabled to force a secure erase of the solid state drive on the next boot. The options are Disabled and Enabled.
  • Page 87 Chapter 4: BIOS Above 4G MMIO BIOS Assignment (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled. SR-IOV Support Use this feature to enable or disable Single Root IO Virtualization Support.
  • Page 88 Super X13SAV-LVDS User's Manual SATA And RST Configuration  SATA Controller(s) Use this feature to enable or disable the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled. Storage Option ROM/UEFI Driver Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot.
  • Page 89 Chapter 4: BIOS Serial Port Console Redirection  COM1 Console Redirection Select Enabled to enable console redirection support for a serial port. The options are Enabled and Disabled. *If the feature above is set to Enabled, the following features are available for configuration: COM1 Console Redirection Settings Use this feature to specify how the host computer will exchange data with the client...
  • Page 90 Super X13SAV-LVDS User's Manual COM1 Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.
  • Page 91 Chapter 4: BIOS AMT SOL Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 92 Super X13SAV-LVDS User's Manual AMT SOL Redirection After BIOS POST Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS.
  • Page 93 Chapter 4: BIOS Trusted Computing  The motherboard supports TPM 1.2 and 2.0. The following Trusted Platform Module (TPM) information displays if a TPM 2.0 module is detected: • Vendor Name • Firmware Version Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for Trusted Platform Module (TPM) support to enhance data integrity and network security.
  • Page 94 Super X13SAV-LVDS User's Manual Intel Trusted Execution Technology Intel Trusted Execution Technology (TXT) helps protect against software-based attacks and ensures protection, confidentiality, and integrity of data stored or created on the system. Use this feature to enable or disable TXT Suppport. The options are Disabled and Enabled.
  • Page 95 Chapter 4: BIOS Blink LEDs Use this feature to identify the physical network port by blinking the associated LED. Use the keyboard to select a value. UEFI Driver Adapter PBA Device Name Chip Type PCI Device ID PCI Address Link Status MAC Address Virtual MAC Address Intel(R) Ethernet Connection (3) I225-LM - XX:XX:XX:XX:XX:XX...
  • Page 96 Super X13SAV-LVDS User's Manual Commit Changes and Exit Use this feature to save all changes and exit TLS settings. Discard Changes and Exit Use this feature to discard all changes and exit TLS settings. Delete Certification Use this feature to delete certification.

  • Page 97: Event Logs

    Chapter 4: BIOS 4.4 Event Logs Use this menu to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled. Erasing Settings Erase Event Log If No is selected, data stored in the event log will not be erased.
  • Page 98 Super X13SAV-LVDS User's Manual SMBIOS Event Log Standard Settings Log System Boot Event This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled. MECI The Multiple Event Count Increment (MECI) counter counts the number of occurences that a duplicate event must happen before the MECI counter is incremented.

  • Page 99: Thermal & Fan

    Chapter 4: BIOS 4.5 Thermal & Fan Use this menu to view System Health settings. System Health • System Temperature • CPU Temperature • System Temperature • Peripheral Temperature • PCH Temperature • FAN1 • FAN2 • FANA • Vcpu •...
  • Page 100 Super X13SAV-LVDS User's Manual • VCC1_8_DL_PCH • 3.3VCC • VBAT Fan Control Fan Control Setting Fan Speed Control Mode Use this feature to select the fan speed control mode. The options are Quiet, Stable, Full Speed, and Customize. • FAN1 and FAN2 CONTROL •...
  • Page 101 Chapter 4: BIOS • PWM3 • Temperature 4 • PWM4...

  • Page 102: Security

    Super X13SAV-LVDS User's Manual 4.6 Security Use this menu to configure the security settings for the system. Administrator Password Press Enter to create a new, or change an existing, Administrator password. Hard Drive Security Frozen Use this feature to enable or disable the BIOS security frozen command for SATA and NVMe devices.
  • Page 103 Chapter 4: BIOS Secure Boot Mode Use this item to configure Secure Boot variables without authentication. The options are Standard and Custom. Enter Audit Mode Select this feature to enter the audit mode to configure PK.  Key Management This submenu allows you to configure the following Key Management settings. ...
  • Page 104 Super X13SAV-LVDS User's Manual  Authorized Signatures Update Select Yes to load the factory default db. Select No to load the db from a external file. The options are Yes and No. Append Select Yes to add the database from the manufacturer's defaults to the existing db. Select No to load the db from a file.
  • Page 105 Chapter 4: BIOS  Export Secure Boot variables This feature allows you to copy NVRAM content of Secure boot variables to files in a root folder on a file system device. The options are Yes and No.  Enroll EFI Image This feature allows the image to run in Secure Boot Mode.

  • Page 106: Boot

    Super X13SAV-LVDS User's Manual 4.7 Boot Use this menu to configure Boot settings. • Boot Option #1 • Boot Option #2 • Boot Option #3 • Boot Option #4 • Boot Option #5 • Boot Option #6 • Boot Option #7 •...
  • Page 107 Chapter 4: BIOS UEFI NETWORK Drive BBS Priorities  This feature sets the system boot order of detected devices. UEFI Application Boot Priorities  This feature sets the system boot order of detected devices. • Boot Option #1...

  • Page 108: Save & Exit

    Super X13SAV-LVDS User's Manual 4.8 Save & Exit Use this menu to save settings and exit from the BIOS. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 109 Chapter 4: BIOS Default Options Load Optimized Default To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save As User Defaults To set this feature, select Save as User Defaults from the Save &...

  • Page 110: Mebx

    Super X13SAV-LVDS User's Manual 4.9 MEBx Use this menu to create a password for MEBx. Intel(R) ME Password Use this feature to create a password for the Intel Management Engine BIOS Extention.

  • Page 111: Appendix A Bios Codes

    Appendix A: BIOS Codes Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes During the Power-On Self-Test (POST) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.

  • Page 112: Additional Bios Post Codes

    Super X13SAV-LVDS User's Manual A.2 Additional BIOS POST Codes The AMI BIOS supplies additional checkpoint codes, which are documented online at http:// www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide"). For information on AMI updates, refer to http://www.ami.com/products/.

  • Page 113: Appendix B Software

    1. Create a method to access the MS Windows installation ISO file. That can be a USB flash or media drive. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities," select the proper driver, and copy it to a USB flash drive.
  • Page 114 Super X13SAV-LVDSUser's Manual 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure B-2.

  • Page 115: Driver Installation

    Appendix B: Software B.2 Driver Installation The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard.

  • Page 116: Superdoctor ® 5

    B.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 117: Appendix C Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 118 Super X13SAV-LVDS User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
  • Page 119 Appendix C: Standardized Warning Statements Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 120: Appendix D Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

  • Page 121: Recovering The Bios Block With A Usb Device

    USB flash or media drive. Note 1: If you cannot locate the "Super.ROM" file in your driver disk, visit our website www.supermicro.com to download the BIOS package. Extract the BIOS binary im- age into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 122 Super X13SAV-LVDS User's Manual Note 2: Before recovering the main BIOS image, confirm that the "Super.ROM" bi- nary image file you download is the same version or a close version meant for your motherboard. 2. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB port and reset the system until the following screen appears: 3.
  • Page 123 Appendix D: UEFI BIOS Recovery 4. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the <Enter> key. You will see the BIOS recovery progress as shown in the screen below: Note: Do not interrupt the BIOS flashing process until it has completed.
  • Page 124 Super X13SAV-LVDS User's Manual 8. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.
