Quick Start Guide
Overview
The HyperLight
Pull Sleeve Kit is an optional accessory for DVIGear AOC cables that enables installers
®
to safely and easily pull bundles of AOC cables through existing conduit without damaging the cables.
Kit Contents
The HyperLight Pull Sleeve Kit consists of the following components:
•

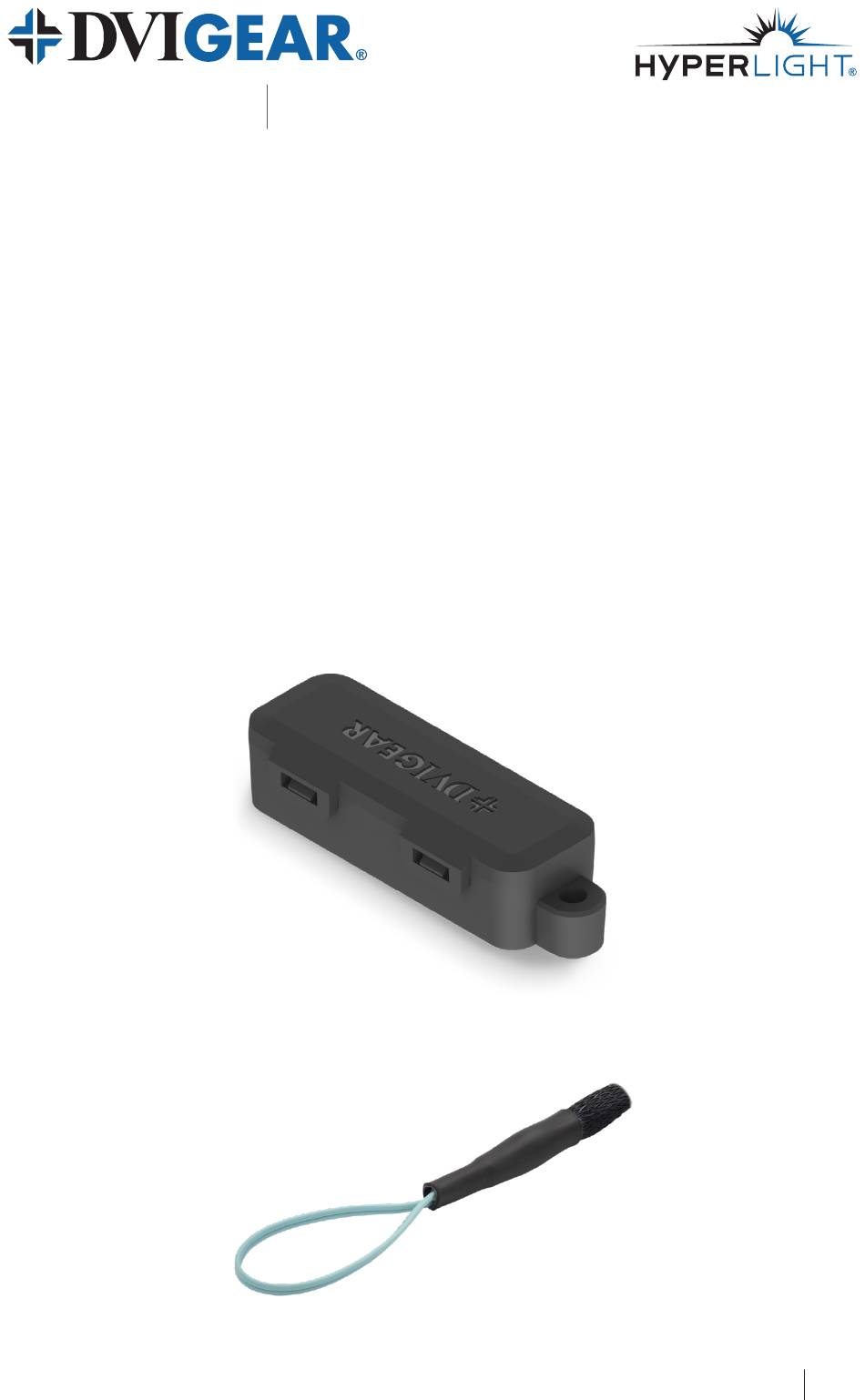

HyperLight Pull Sleeve
•
HyperLight Cable Pull Cover (p.n. DVI-2600-AOC-CVR) x 2
The installer will need to provide the following items in order to successfully install the cable:
•
Electrical Tape
•
Knife for cutting electrical tape
HyperLight Cable Pull Cover
HyperLight Cable Pull Sleeve
DVI-2600-AOC-PSK
Pull Sleeve Kit
