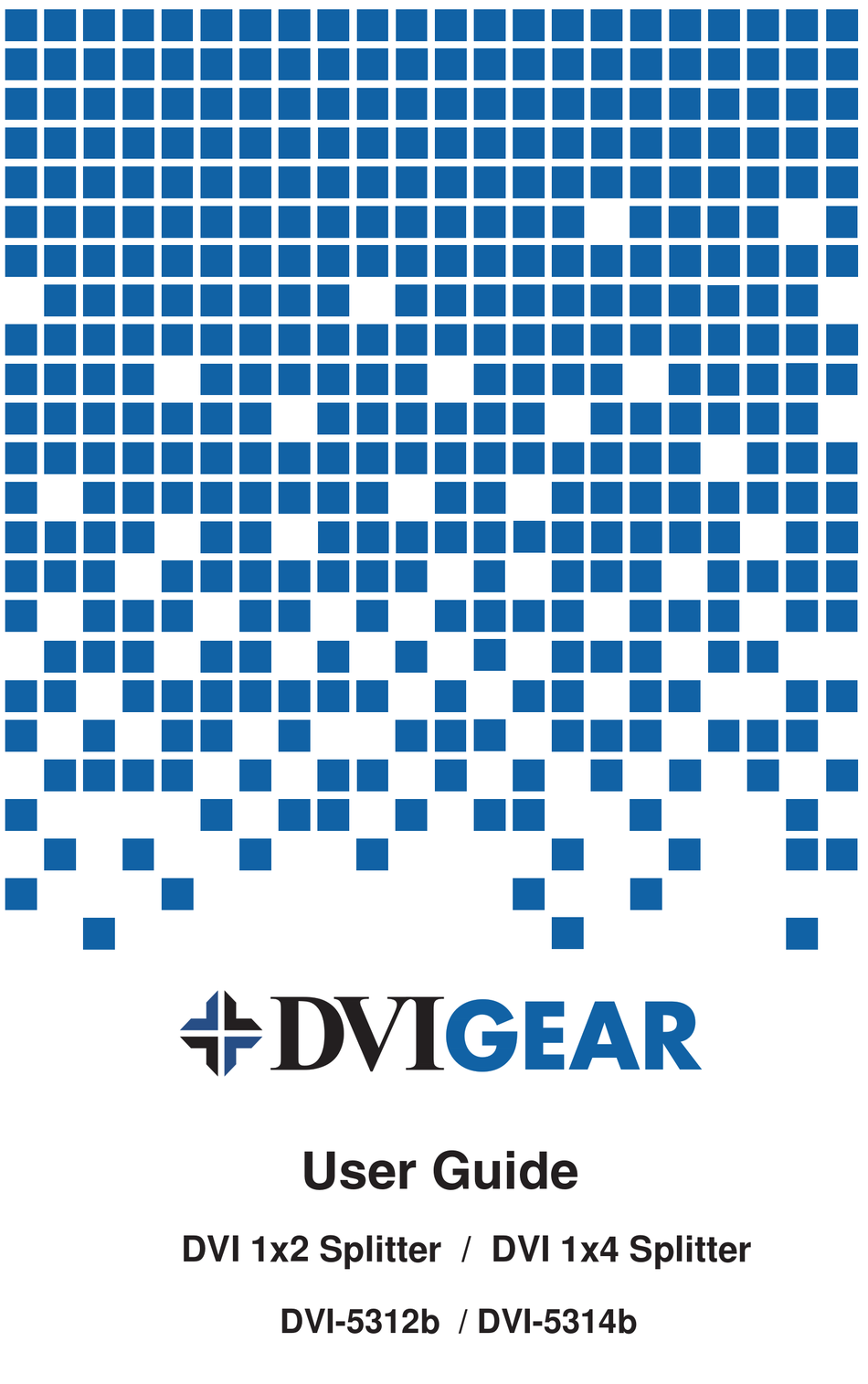

- Page 1 User Guide DVI-D Fiber Optic Cable DVI 1x2 Splitter / DVI 1x4 Splitter DVI-5312b / DVI-5314b...
-
Page 2: Table Of Contents
Table of Contents Section Page Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance... -
Page 3: Introduction
Converters, as well as Signal Switchers and Distribution Amplifiers. Liability Statement Every effort has been made to ensure that this product is free of errors. DVIGear cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. - Page 4 Getting the Best Results There are many factors affecting the quality of results when distributing DVI or HDMI type signals. Some basic precautions will ensure the best possible performance from your new HDMI Splitter. • Output display device – The quality of the output signal will depend largely upon the type and quality of the DVI or HDMI display device used.
-
Page 5: Specifications
Support HDTV Formats 480i, 480p, 576i, 576p, 720p, 1080i and 1080p Support PC Resolutions Up to 1920x1200 Maximum Input Cable Length 12.5 meters DVIGear SHR™ Series Maximum Output Cable Length 10 meters DVIGear SHR™ Series I/O Connectors Inputs 1x DVI-D... -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or DVIGear immediately. Please have the Model Number, Serial Number and Invoice Number available for reference when you call. -
Page 7: Operating The Unit
*Note: Proper operation of DVI Splitter depends on the use of the highest quality cables available. DVIGear’s SHR DVI or HDMI to DVI cables provide low loss, high bandwidth signal handling and are the recommended cables for use with all DVI and HDMI products. The distance specification cannot be guaranteed unless SHR cables are used throughout the system. - Page 8 EDID Operation On the rear of the unit you will find an EDID switch. This switch controls what EDID information the splitter will report back to the source. This EDID information will be from an on-board memory chip of the most commonly used resolutions up to 1920x1200 or retrieved from the actual displays.
-
Page 9: Troubleshooting
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions. Should the dealer’s technical personnel be unable to assist you, please contact DVIGear via telephone at (888) 463-9927 (United States and Canada); international callers may dial (770) 421-6699, or through e-mail at support@dvigear.com. -
Page 10: Limited Warranty
In no event shall DVIGear be responsible or liable for any damage arising from the use of such defective products whether such damages be direct, indirect, consequential or otherwise, and whether such damages are incurred by the reseller, end-user or any third party. - Page 11 Your Digital Connectivity Experts Toll Free 888.463.9927 DVIGear, Inc. Phone 770.421.6699 1059 Triad Court, Suite 8 Toll Free 888.463.9927 400 Meadowmont Village Circle 770.234.4207 Marietta, Georgia 30062-2258 Phone 919.969.6681 Suite 425 919.869.1310 Chapel Hill, NC 27517 www.dvigear.com www.dvigear.com DVI-5300b-UG-02 / AUG.2009...
