DVIGear HyperLight DVI-2300-AOC-TX Quick Start Manual

Dvi active optical cables

Advertisement

Introduction

DVIGear's HyperLight
cutting edge technology to deliver unprecedented resolution, performance and value. HyperLight DVI
cables provide robust features in a rugged yet compact and lightweight form factor. They are fully
HDCP 1.4 compliant and support signals with data rates up to 4.95 Gbps. These features enable
HyperLight cables to support any Single-Link DVI resolution with cable lengths up to 100 meters.
These cables are plenum-rated (UL CMP-OF), compact, lightweight and highly flexible. Constructed
using a hybrid design of 4x POF (Polyfluorinated Optical Fiber) and 6x copper wires, they are rugged,
yet flexible, with a minimum bend radius of just two millimeters. To minimize cable diameter, two
removable DVI docking connectors may be detached, revealing a connector cross section that
measures just 13.9 x 14.2 millimeters. The docking connectors include fixation screws for added
security, as do the removable cable pull covers. These features make the cables easy to install
even in narrow conduits, as well as in plenum spaces.
HyperLight cables are designed for use in mission critical applications where image quality and
dependability are paramount. The video signals are transmitted over four optical fibers, which make
them immune to interference from environmental noise. The optical transmission path provides a
very low RFI / EMI profile, which allows the cables to be installed in sensitive applications with strict
security requirements. The cables draw power from the connected DVI source, eliminating the need
for an external power supply. HyperLight AOC cables are ideally suited for applications that require
ultra-high resolution DVI signals to be extended over long cable runs with flawless image quality.

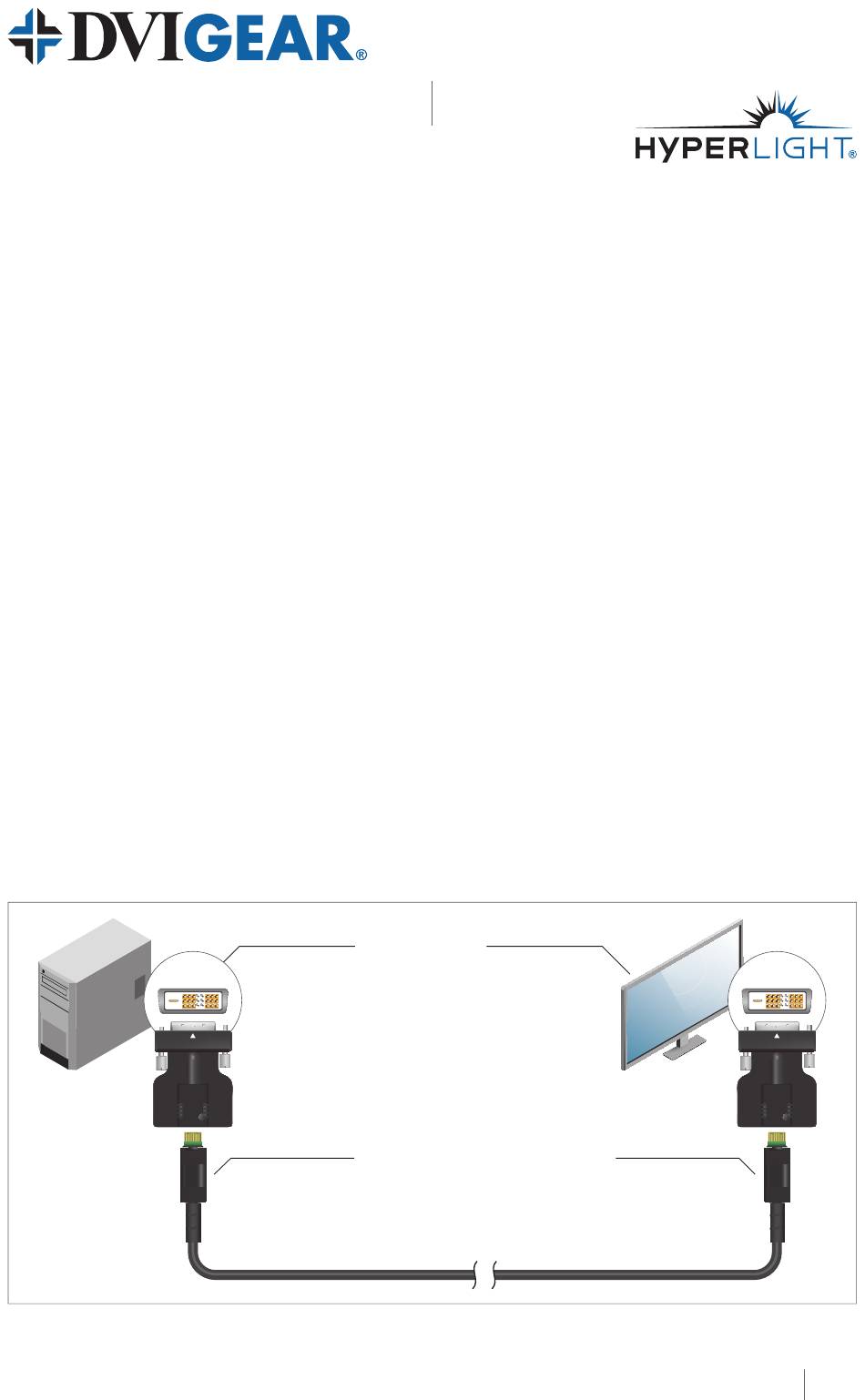

Typical Application

TRANSMITTER
DVIGear, DVIGear & Design, and HyperLight are trademarks of DVIGear, Inc.
and may not be used without the prior written permission of DVIGear, Inc.
Quick Start Guide
Series is a new generation of advanced Active Optical Cables (AOC) that employs
®
DVI Source
Note: Always use the supplied DVI docking connector on both ends of this cable.
Transmitter
TX
which eliminates the need for an external power supply.
DVI-23xxx-AOC DVI Active Optical Cable
DVI Active Optical Cables
DVI Display
This cable is powered by the DVI source,
DVI-23xxx-AOC
Receiver
RECEIVER
DISPLAY
DISPLAY
RX
1
