DVIGear DVI-26xxx-AOC Quick Start Manual

Introduction

DVIGear's HyperLight
cutting edge technology to deliver unprecedented resolution, performance and value. HyperLight cables
support DisplayPort 1.4 and provide a wide range of features in a compact, lightweight form-factor.
They are fully HDCP 1.4 / 2.2 compliant and support signals with data rates up to 32.4 Gbps. (HBR3).
These features enable HyperLight cables to support very high resolution applications at 4K / 60Hz
(4:4:4) with cable lengths up to 100 meters and 8K / 30Hz (4:4:4) up to 50 meters.
HyperLight cables are plenum rated (UL CMP-OF), compact, lightweight and highly fl exible. Constructed
using a hybrid design of 4x POF (Polyfl uorinated Optical Fiber) and 6x copper wires, they are rugged,
yet fl exible, with a minimum bend radius of just two millimeters. To minimize cable diameter, two
removable DisplayPort docking connectors may be detached, revealing a connector cross-section that
measures just 10 x 12.4 millimeters. The docking connectors include a locking pin for added security.
These features make the cables easy to install even in narrow conduits as well as in plenum spaces.
These cables are designed for use in mission critical applications where image quality and
dependability are paramount. The video signals are transmitted over four optical fi bers, which make
them immune to interference from environmental noise. The optical transmission path provides a very
low RFI / EMI profi le, which allows the cables to be installed in sensitive applications with strict security
requirements. The cables draw power from the connected DisplayPort source, eliminating the need for
an external power supply. HyperLight AOC cables are ideally suited for applications that require ultra-
high resolution DisplayPort signals to be extended over long cable runs with fl awless image quality.

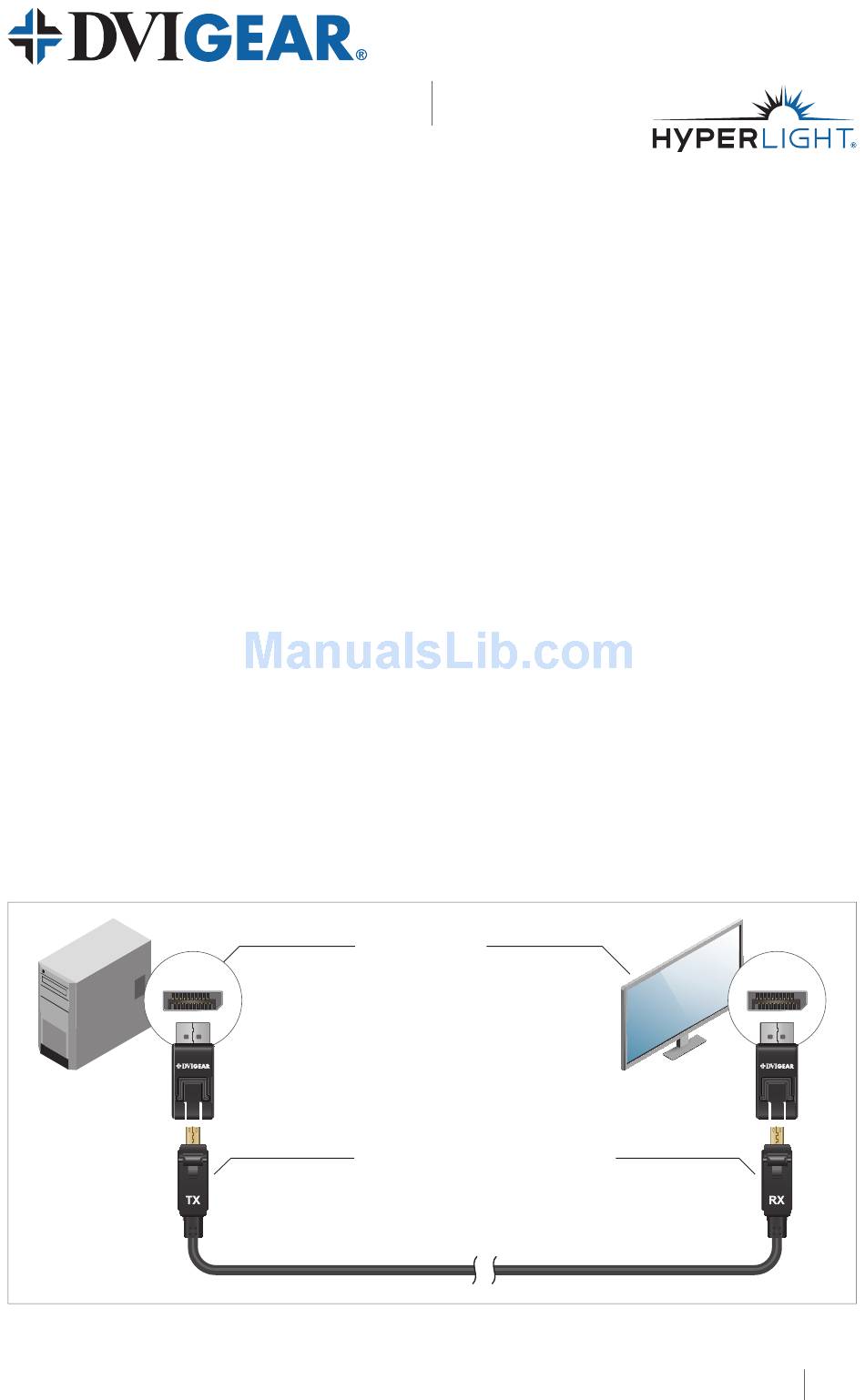

Typical Application

DVIGear, DVIGear & Design, and HyperLight are trademarks of DVIGear, Inc.
and may not be used without the prior written permission of DVIGear, Inc.
Quick Start Guide
Series is a new generation of advanced Active Optical Cables (AOC) that employ
®
DisplayPort
Source
SOURCE SOURCE
Note: Always use the supplied DisplayPort docking connector on both ends of this cable.
Transmitter
This cable is powered by the DisplayPort source,
which eliminates the need for an external power supply.
DVI-26xxx-AOC DisplayPort 1.4 Active Optical Cable
DisplayPort 1.4
Active Optical Cables
DisplayPort
Monitor
Receiver
DISPLAY DISPLAY
