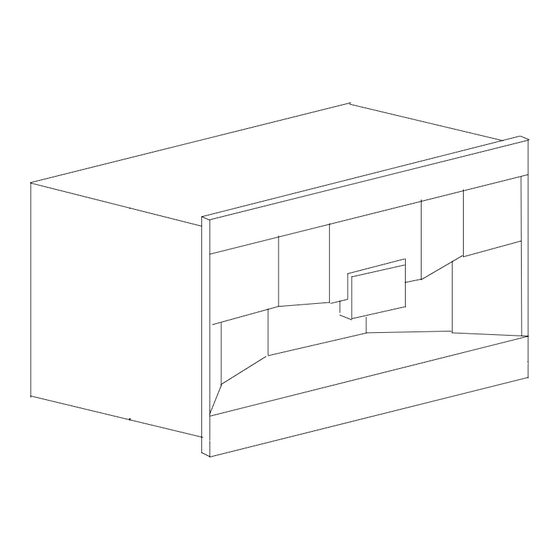

Miele CVA4075 Product Dimensions
Miele CVA4075 Product Dimensions

Miele CVA4075 Product Dimensions

Plumbed built-in coffee system

Advertisement

Product and Cut-out Dimensions
Plumbed Built-in Coffee System
CVA4075
E -
5 foot - 120 Volt - 15 Amp 3-wire molded plug connects left
upper rear.
W -
1/4 copper compression fitting connects right lower rear.
O -
Standard NEMA 5-15 outlet. Do not locate at point of
water connection. Location must be accessible.
• Width with optional EBA Trim Kits:
EBA4470
26" - 26 1/4"
EBA4476
28 3/8" - 28 1/2"
• Unit depth includes 2 1/8" for water connection
• All installations must be done in accordance with local codes.
O
Location Codes
Notes
W
E
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010107

Advertisement

loading

Summary of Contents for Miele CVA4075

  • Page 1 Product and Cut-out Dimensions Plumbed Built-in Coffee System CVA4075 Location Codes 5 foot - 120 Volt - 15 Amp 3-wire molded plug connects left upper rear. 1/4 copper compression fitting connects right lower rear. Standard NEMA 5-15 outlet. Do not locate at point of water connection.
  • Page 2 Product Dimensions Plumbed Built-in Coffee System CVA4075 Rear View 6 1/2" Location Codes 5 foot - 120 Volt - 15 Amp 3-wire molded plug. 1/4 copper compression connection fitting rotates 360 degrees SideView NOTE: Drawing is not to scale. SPECIFICATION SHEETS 010107...
  • Page 3 Product and Cut-out Dimensions Plumbed Built-in Coffee System CVA 4075 over H4XXX Oven Location Codes 5 foot - 120 Volt - 15 Amp 3-wire molded plug connects left upper rear. 1/4 copper compression fitting connects right lower rear. Standard NEMA 5-15 outlet. Do not locate at point of water connection.
