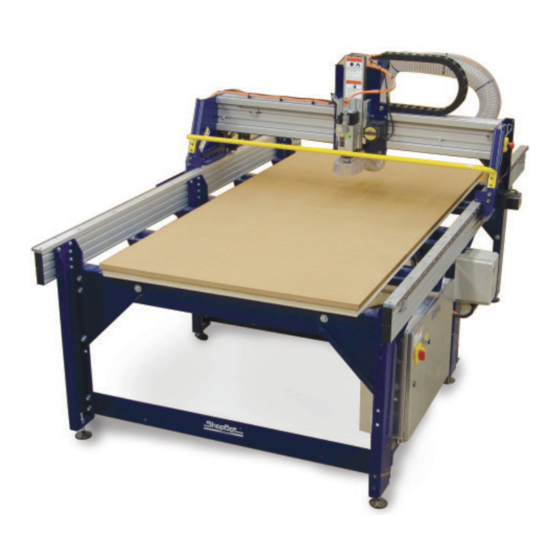

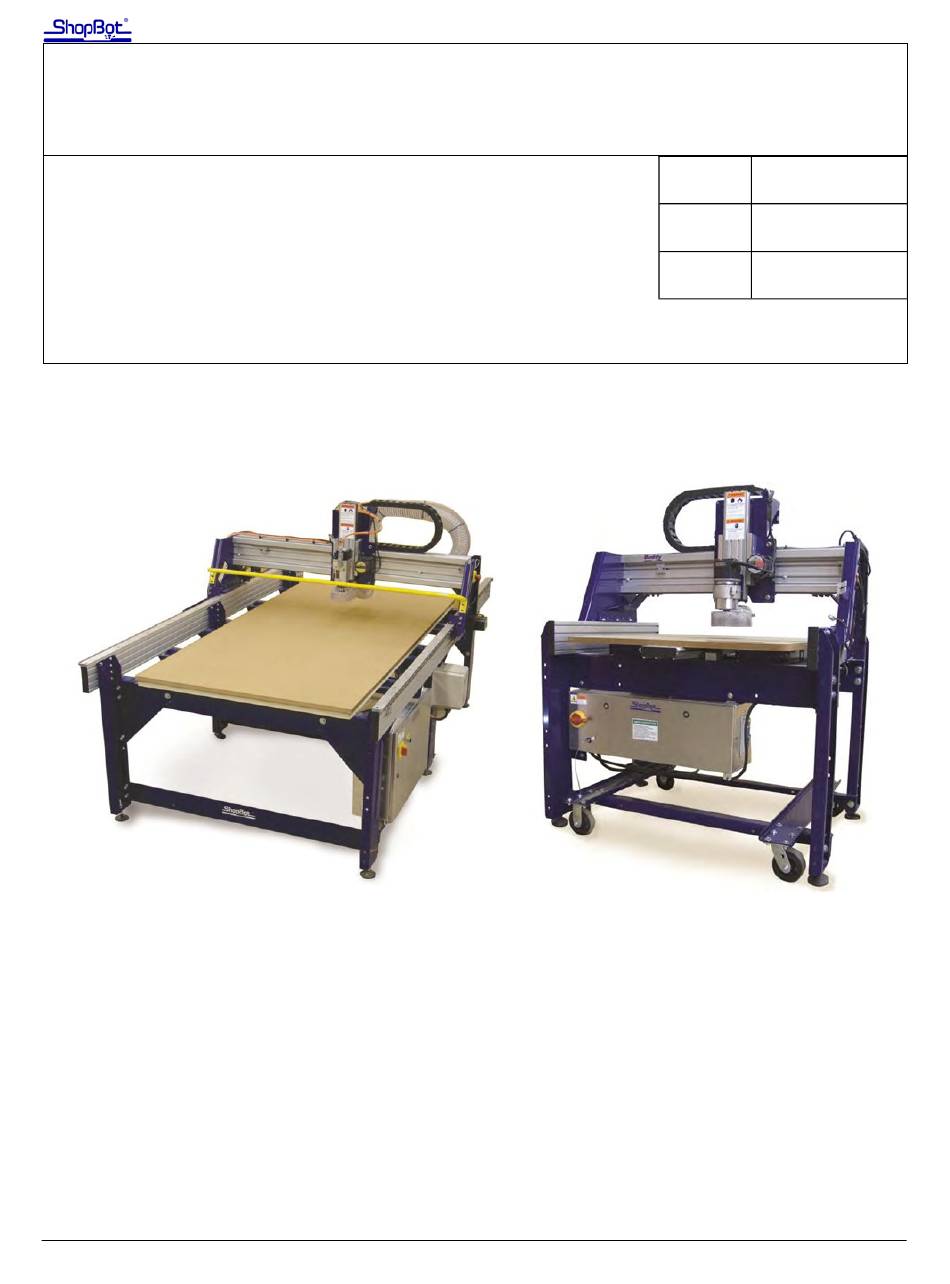

PRS Quick-Start Guide
(for PRS and Buddy tools)
Introduction:
This document is intended to help you get started with your new Shop-
Bot. For more detailed information on any of these topics, please refer-
ence the ShopBot User's Guide (www.shopbottools.com/ShopBotDocs/
gantry.htm). See also the list of resources on the back page for more in-
formation.
SBG 00185
Quick-Start Guide for PRSalpha and PRSstandard tools
Copyright 2015
Date:
11/16/2015
Revision:
11/16/2015
Owner:
M. Cummings
1
