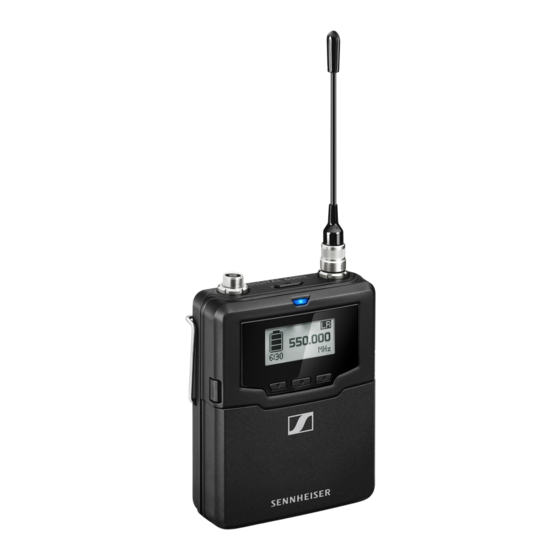

- Page 1 Installing the SK 6000 Installing the SK 6000 These sections contain detailed information about installing the SK 6000. You can find information about operating the SK 6000 under „Using the SK 6000“.
-
Page 2: Inserting And Removing The Ba 61 Rechargeable Bat- Tery
Charge the BA 61 rechargeable battery before using it for the first time. For information about charging, see „Charging rechargeable batteries“. ► To insert the BA 61 rechargeable battery into the SK 6000 bodypack trans- mitter: Insert the BA 61 rechargeable battery into the SK 6000 bodypack trans- ▷... - Page 3 Installing the SK 6000 To remove the BA 61 rechargeable battery from the SK 6000 bodypack transmitter: ▷ Press the two catches as shown in the figure and pull the BA 61 re- chargeable battery out of the SK 6000 bodypack transmitter.
-
Page 4: Inserting And Removing The B 61 Battery Compart- Ment
Installing the SK 6000 Inserting and removing the B 61 battery compart- ment We recommend using the BA 61 rechargeable battery instead of the B 61 battery compartment. You can find more information about this subject under „Rechargeable batteries and battery compartments“. - Page 5 Installing the SK 6000 To insert the B 61 battery compartment into the SK 6000 bodypack trans- mitter: ▷ Insert the B 61 battery compartment into the SK 6000 bodypack trans- mitter as shown in the figure until it audibly clicks into place.
- Page 6 Installing the SK 6000 CAUTION Damage to the bodypack transmitter and/or rechargeable battery/ battery compartment If you touch the following contacts, they may become dirty or bent. • Supply voltage contacts and bodypack transmitter contacts • BA 61 rechargeable battery charging and data contacts •...
-
Page 7: Mounting The Antenna
Connect the antenna to the SK 6000 bodypack transmitter antenna socket as shown in the figure. ▷ Tightly screw on the antenna coupling ring on the SK 6000 bodypack transmitter antenna socket. ► The antenna can be connected to the antenna socket very gently in only one direction. -
Page 8: Connecting A Microphone To The Sk 6000
Installing the SK 6000 Connecting a microphone to the SK 6000 We recommend using the following Lavalier microphones and headset mi- crophones with the SK 6000 and SK 6212 bodypack transmitters. ► Microphone Features Article no. MKE 1-4 Lavalier microphone, omni-directional... - Page 9 To connect a microphone to the bodypack transmitter: Use a 3-pin audio connector to connect the microphone cable to the ▷ SK 6000 bodypack transmitter audio socket as shown in the figure. Tightly screw on the microphone cable coupling ring on the audio sock- ▷...
- Page 10 You can connect instruments or audio sources with a line level to the SK 6000 bodypack transmitter. To do so, you require the Sennheiser CI 1-4 cable (6.3 mm (1/4") jack plug to 3-pin audio connector) To connect an instrument or line source to bodypack transmitter: ▷...
- Page 11 To connect the KA 9000 COM command adapter to the bodypack transmit- ter: ▷ Connect the 3-pin audio connector of the KA 9000 COM to the SK 6000 bodypack transmitter audio socket as shown in the figure. ▷ Connect the 3-pin audio connector of the Sennheiser microphone or Sennheiser CI 1-4 line/instrument cable to the KA 9000 COM audio socket.
- Page 12 Installing the SK 6212 Installing the SK 6212 These sections contain detailed information about installing the SK 6212. You can find information about operating the SK 6212 under „Using the SK 6212“. Inserting and removing the BA 62 rechargeable bat- tery ▷...
- Page 13 Installing the SK 6212 To remove the BA 62 rechargeable battery from the SK 6212 bodypack transmitter: ▷ Open the battery compartment on the SK 6212 bodypack transmitter as shown in the figure. Remove the BA 62 rechargeable battery from the SK 6212 bodypack ▷...
- Page 14 Installing the SK 6212 Mounting the antenna To mount the supplied antenna: ▷ Connect the antenna to the SK 6212 bodypack transmitter antenna socket as shown in the figure. ▷ Tightly screw the antenna coupling ring onto the SK 6212 bodypack transmitter antenna socket.
- Page 15 Installing the SK 6212 The antenna bends very easily. ▷ Make sure that the antenna does not touch the housing of the bodypack transmitter. ► Rigid antennas are also available as accessories as an alternative to the flexible antennas. See „Antennas and accessories“.
- Page 16 Installing the SK 6212 Connecting a microphone to the SK 6212 We recommend using the following Lavalier microphones and headset mi- crophones with the SK 6000 and SK 6212 bodypack transmitters. ► Microphone Features Article no. MKE 1-4 Lavalier microphone, omni-directional...
- Page 17 SK 6212 bodypack transmitter. ► For more information about using the particular microphone, see the corresponding instruction manual for the microphone. You can find this instruction manual in the download section of the Sennheiser website under www.sennheiser.com/download.
