Operating and Service Manual
MAX Guard 120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX Guard 120 and is the answer not in the manual?

Questions and answers

Related Manuals for lakeair MAX Guard 120

Summary of Contents for lakeair MAX Guard 120

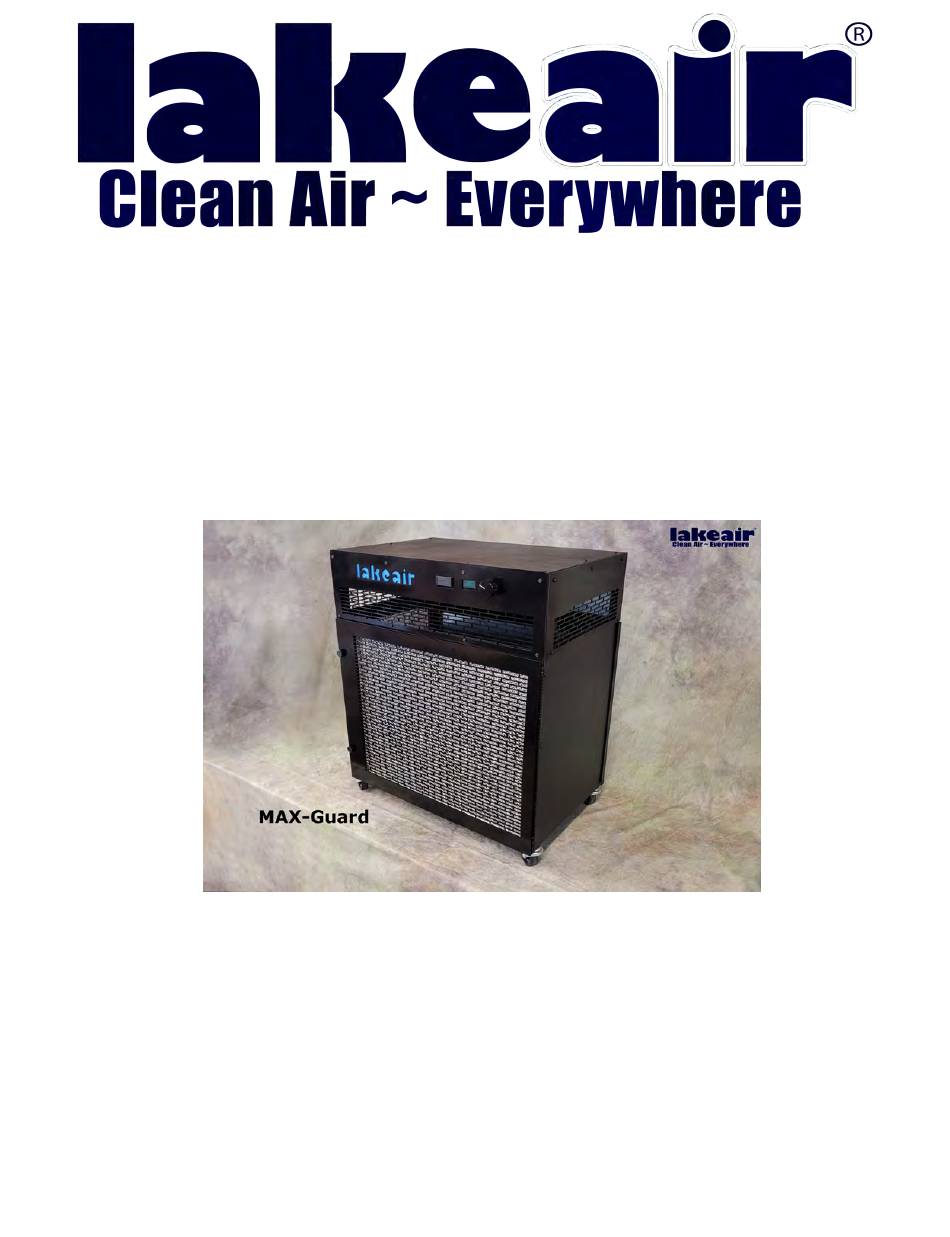

  • Page 1 Operating and Service Manual MAX Guard 120...
  • Page 2 INDEX...

  • Page 3: Operation

    ABOUT Your MAX-Guard The MAX-Guard air purifier was designed to provide long service. The unit was designed to be easily repairable. The product warranty is 7 years but you can expect 15 or more years of useful product life. The MAX-Guard is a heavy duty all air purifier. There are no circuit boards. We use simple switches that if necessary are easy to replace.

  • Page 4: Maintenance

    60,000 hours of normal use. Proper maintenance can greatly extend the blower life. Maintenance Your LakeAir Air Cleaner is a high quality, precision piece of equipment designed for many years of satisfactory performance. Adhere to a regular maintenance schedule and no problems should occur.
  • Page 5 MAX-Guard Major Parts Fuse Box 497546 Thumb Screw 470122 LED Indicator Safety Switch 497567 100139 Potentiometer 371922 Blower 300781 Motor Mount 200478 Universal Plug 497546...

  • Page 6: Filter Removal And Installation

    Filter Removal and Installation PreFilter The pre filter is the first of 3 filters used in the MAX-Guard. The pre filter removes large particles from the air stream. It also extends the life of the main filter. The prefilters rating is MERV 2 and its Part# is 490052.

  • Page 7: Main Filter

    Main Filter The main filter will be one of 4 different filters. Possible options are Standard HEPA (20 x 16 x 4.75), MERV 15 Media filter (20 x 16 x 4), Electrostatic filter (20 x 16 x 4.5) or UVGI HEPA (20 x 26 x 2.4) The main filters fit snugly into the filter box and can be removed easily.
  • Page 8 Electrostatic Cell Removing and Re-installing CAUTION Always Ground the Cell before handling! When you open the door to the Unit all power is cut off. It is possible however that some residual electricity is still residing in the Filter Cell. So, the FIRST thing to do is ground the voltage side of the cell.

  • Page 9: Uv Bulb Replacement

    UVGI Filter The UVGI (ultra violet germicidal irradiation) filter sits behind the main filter and is surrounded on both sides by carbon filters. The carbon filters serve 2 purposes to 1. Remove gasses and odors from the air and 2. Block UVC rays from escaping the unit. Carbon absorbs the UVC energy making it harmless to people and pets.

  • Page 10: Special Warnings

    Special Warnings Caution: Ultraviolet energy. Protect eyes and skin. This product utilizes UVC Bulbs to provide microbial sanitation. The light waves are invisible to the human eye but are extremely dangerous. This unit must be run with all safety devices and switches in working order. Do NOT By-Pass any safety measures.

  • Page 11: Return Shipping

    Filter cleaning and replacement recommendations. Filter and Bulbs listing Replace/Clean Filter / Kit Part# Annually Standard HEPA filter # 499180 Annually UVGI HEPA Filter # 499176 Annually MERV 15 Media Filter # 499097 Annually Pre Filter # 490052 Standard Carbon Filter # 499075 3 months 3 months...

  • Page 12: Specifications

    Specifications Capacity............300-1500 cfm Standard HEPA Filter....... 4.5 inch mini pleat UVGI HEPA Filter........2.4 inch mini pleat HEPA Efficiency........99.97% to 0.3 micron Electrostatic Precipitator ........ 4.5 inch / 5kv Cell Collection Area........5000 sq. inches Electrostatic Efficiency......97% to 0.1 micron MERV 15 Media ....
  • Page 13 Positioning Your MAX-Guard There are several things to take into consideration when choosing where to place the MAX-Guard in the room. While the unit will draw in a large quantity of air it will not necessarily move air on the far end of a large room.
  • Page 14 Washing Your Electrostatic Filter Your electrostatic filter gathers smoke, dirt and other particles from the air. These particles are bonded to the filter plates by a strong electromagnetic force. As these particles build up the filter becomes less efficient. It is important to clean the filter on a regular basis.

  • Page 15: Troubleshooting

    Trouble Shooting...

  • Page 16: User's Responsibility

    The blowers of the LakeAir MAX Guard is warranted for (1) year from the date of purchase to the original purchaser. A extended blower warranty is available for purchase and extends the warranty to 7 years.
