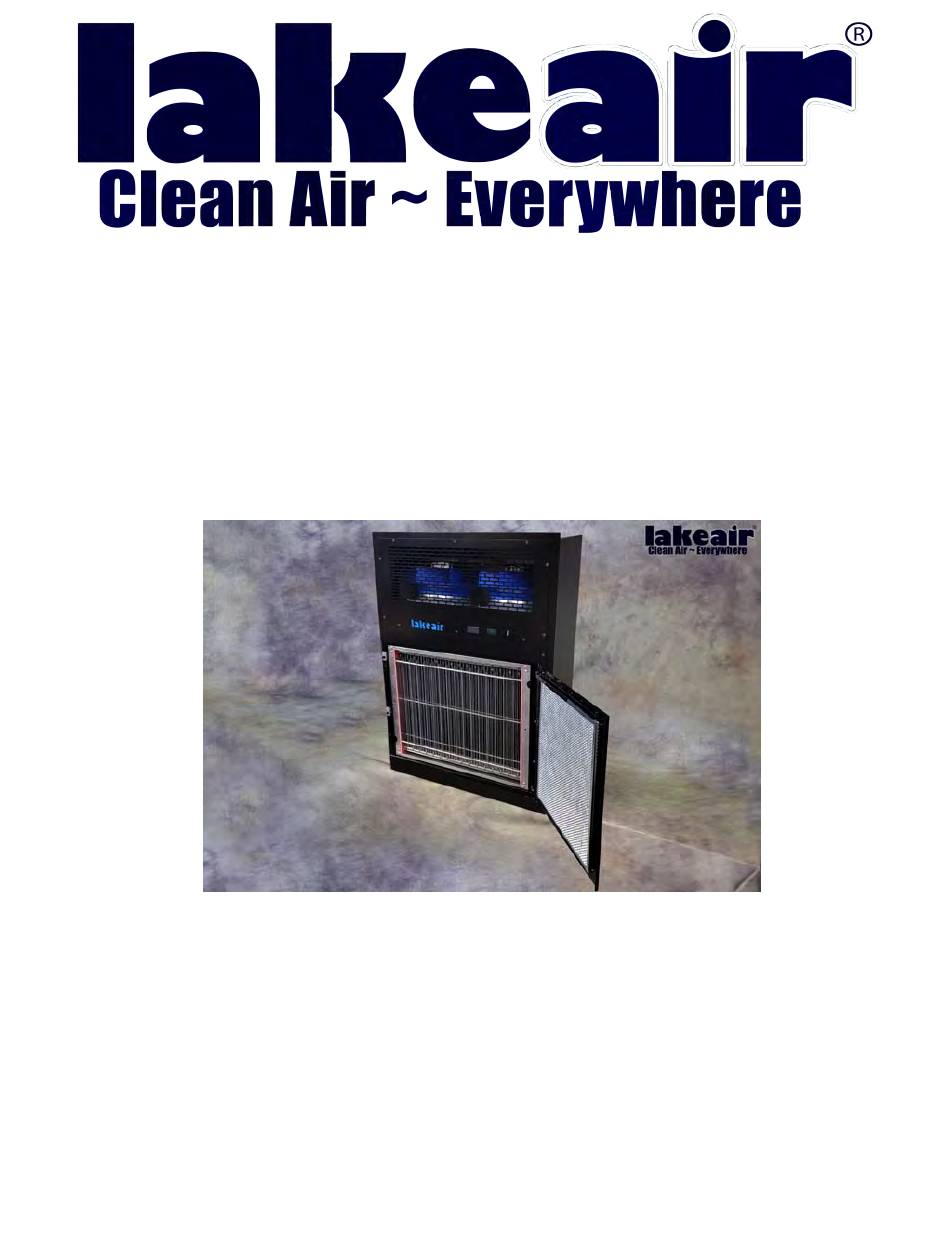

- Page 1 Operating and Service Manual WM-RC2 120 Volt...
-
Page 2: Table Of Contents
INDEX TOPIC Page Index About the WM-RC2 Unpacking Operation Getting to know your WM-RC2 Major Parts Unit Maintenance Pre Filter Main Filter Electrostatic Filter UVGI Filter Filter and Bulb Parts List Trouble shooting Trouble Shooting Specifications Warranty Coming Soon Coming Soon Coming Soon... - Page 3 ABOUT Your WM-RC2 TheWM-RC2 air purifier was designed to provide long service. The unit was designed to be easily repairable. The product warranty is 7 years but you can expect 15 or more years of useful product life. The WM-RC2 is a heavy duty all air purifier. There are no circuit boards. We use simple switches that if necessary are easy to replace.
- Page 4 The internal control box is fitted with a 1/2 inch threaded receptacle. Thread a piece of rigid conduit into the control box receptacle. Attach a junction box on the other side of the stud and connect it to the rigid conduit (see image A-1 below) Feed the power/control wire through the conduit and into the junction box.
-
Page 5: Getting To Know Your Wm-Rc2
Maintenance Your LakeAir Air Cleaner is a high quality, precision piece of equipment designed for many years of satisfactory performance. Adhere to a regular maintenance schedule and no problems should occur. This unit should be checked periodically for “dust load” and cleaned if found to have a large accumulation of dust and lint. -
Page 6: Major Parts
WM-RC2 Major Parts Fuse Box 497546 Thumb Screw 470122 LED Indicator Safety Switch 497567 100139 Potentiometer 371922 TOP View Of Motor Cabinet Blower 300781 Motor Mount 200478 Universal Plug 497546... - Page 7 Filter Removal and Installation The pre filter is the first of 3 filters used in the WM-RC2. The pre filter removes large particles from the air stream. It also extends the life of the main filter. The prefilters rating is MERV 2 and its Part# is 490052. The pre filter is mounted into the door of the WM-RC2 To remove or re-install lift the end of the prefilter over the filter stop and slide along filter channel...
-
Page 8: Main Filter
Main Filter The main filter will be one of 4 different filters. Possible options are Standard HEPA (20 x 16 x 4.75), MERV 15 Media filter (20 x 16 x 4), Electrostatic filter (20 x 16 x 4.5) or UVGI HEPA (20 x 26 x 2.4) The main filters fit snugly into the filter box and can be removed easily. - Page 9 Electrostatic Cell Removing and Re-installing CAUTION Always Ground the Cell before handling! When you open the door to the Unit all power is cut off. It is possible however that some residual electricity is still residing in the Filter Cell. So, the FIRST thing to do is ground the voltage side of the cell.
-
Page 10: Electrostatic Filter
Filter cleaning and replacement recommendations. Filter and Bulbs listing Filter / Kit Part# Replace/Clean Standard HEPA filter # 499180 Annually UVGI HEPA Filter # 499176 Annually MERV 15 Media Filter # 499097 Annually Pre Filter # 490052 Annually 3 months Standard Carbon Filter # 499075 Cannablend Filter... -
Page 11: Uvgi Filter
Specifications Capacity............300-1500 cfm Standard HEPA Filter....... 4.5 inch mini pleat UVGI HEPA Filter........2.4 inch mini pleat HEPA Efficiency........99.97% to 0.3 micron Electrostatic Precipitator ........ 4.5 inch / 5kv Cell Collection Area........5000 sq. inches Electrostatic Efficiency......97% to 0.1 micron MERV 15 Media .... - Page 12 The blowers of the LakeAir MAX Guard is warranted for (1) year from the date of purchase to the original purchaser. A extended blower warranty is available for purchase and extends the warranty to 7 years.
