Operating and Service Manual
CM2-RC2 120 Volt

Advertisement

Table of Contents
loading

Related Manuals for lakeair CM2-RC2 120 Volt

Summary of Contents for lakeair CM2-RC2 120 Volt

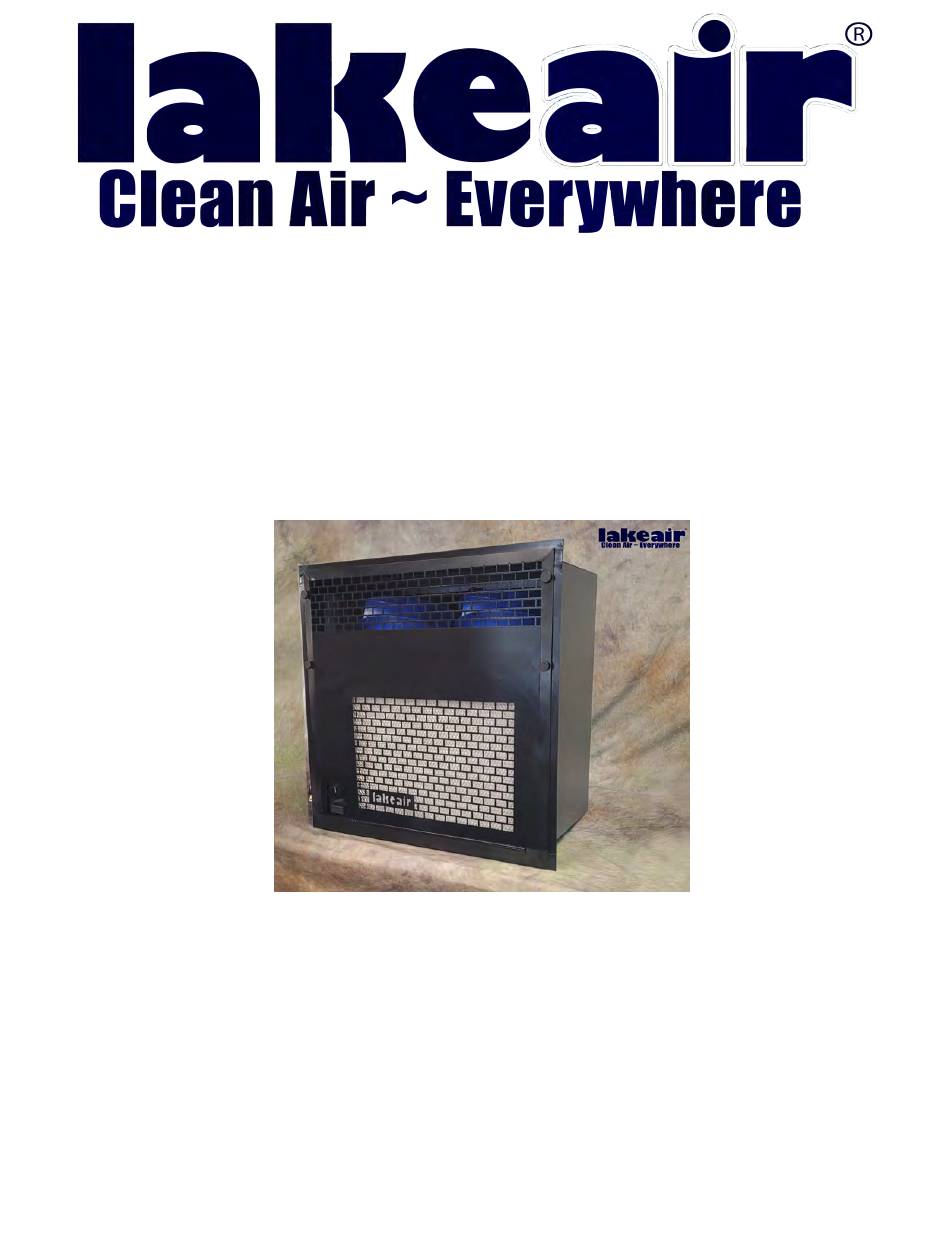

  • Page 1 Operating and Service Manual CM2-RC2 120 Volt...
  • Page 3 ABOUT Your CM2-RC2 The CM2-RC2 air purifier was designed to provide long service. The unit was designed to be easily repairable. The product warranty is 7 years but you can expect 15 or more years of useful product life. The CM2-RC2 is a heavy duty all air purifier. There are no circuit boards. We use simple switches that if necessary are easy to replace.
  • Page 4 The wire coming from the unit (unless ordered with on-board speed control) has 6 conductors. You can purchase more wire from LakeAir if needed. This wire should be of sufficient gauge for run lengths under 40 feet.

  • Page 5: Maintenance

    Maintenance Your LakeAir Air Cleaner is a high quality, precision piece of equipment designed for many years of satisfactory performance. Adhere to a regular maintenance schedule and no problems should occur. This unit should be checked periodically for “dust load” and cleaned if found to have a large accumulation of dust and lint.
  • Page 6 CM2-RC2 Major Parts Fuse Box 497546 Carbon Filter 499024 Power Indicator 100139 Safety Switch 497567 Rocker Switch 497612 TOP View Of Motor Cabinet Blower 300781 Motor Mount 200478 Universal Plug 497546...

  • Page 7: Filter Removal And Installation

    Filter Removal and Installation The pre filter is the first of 3 filters used in the CM2-RC2. The pre-filter removes large particles from the air stream. It also extends the life of the main filter. The pre-filter's rating is MERV 2 and its Part# is 499035.
  • Page 8 Electrostatic Cell Removing and Re-installing CAUTION Always Ground the Cell before handling! When you open the door to the Unit all power is cut off. It is possible however that FIRST some residual electricity is still residing in the Filter Cell. So, the thing to do is ground the voltage side of the cell.
  • Page 9 Carbon filters should be replaced when odors re-appear Electrostatic filter cell should be inspected to see when dirty Filters can be ordered from the LakeAir website at www.lakeair.com. You can also order by calling the customer service number 800-558-9436. Text support is availalable...

  • Page 10: Specifications

    Specifications Capacity............200-850 cfm Standard HEPA Filter....... 4.5 inch mini pleat UVGI HEPA Filter........2.4 inch mini pleat HEPA Efficiency........99.97% to 0.3 micron Electrostatic Precipitator ........ 4.5 inch / 5kv Cell Collection Area........3000 sq. inches Electrostatic Efficiency......97% to 0.1 micron MERV 15 Media ....

  • Page 11: User's Responsibility

    The blowers of the LakeAir MAX Guard is warranted for (1) year from the date of purchase to the original purchaser.

  • Page 12: Customer Service

    If you have questions or need support it can be found in many ways. Email: Email support can be obtained by sending an email to sales@lakeair.com. We try to answer all email support matters within 12 hours. If emails are sent during regular business hours 8:00 AM - 6:00 PM CST replies should be much sooner.
