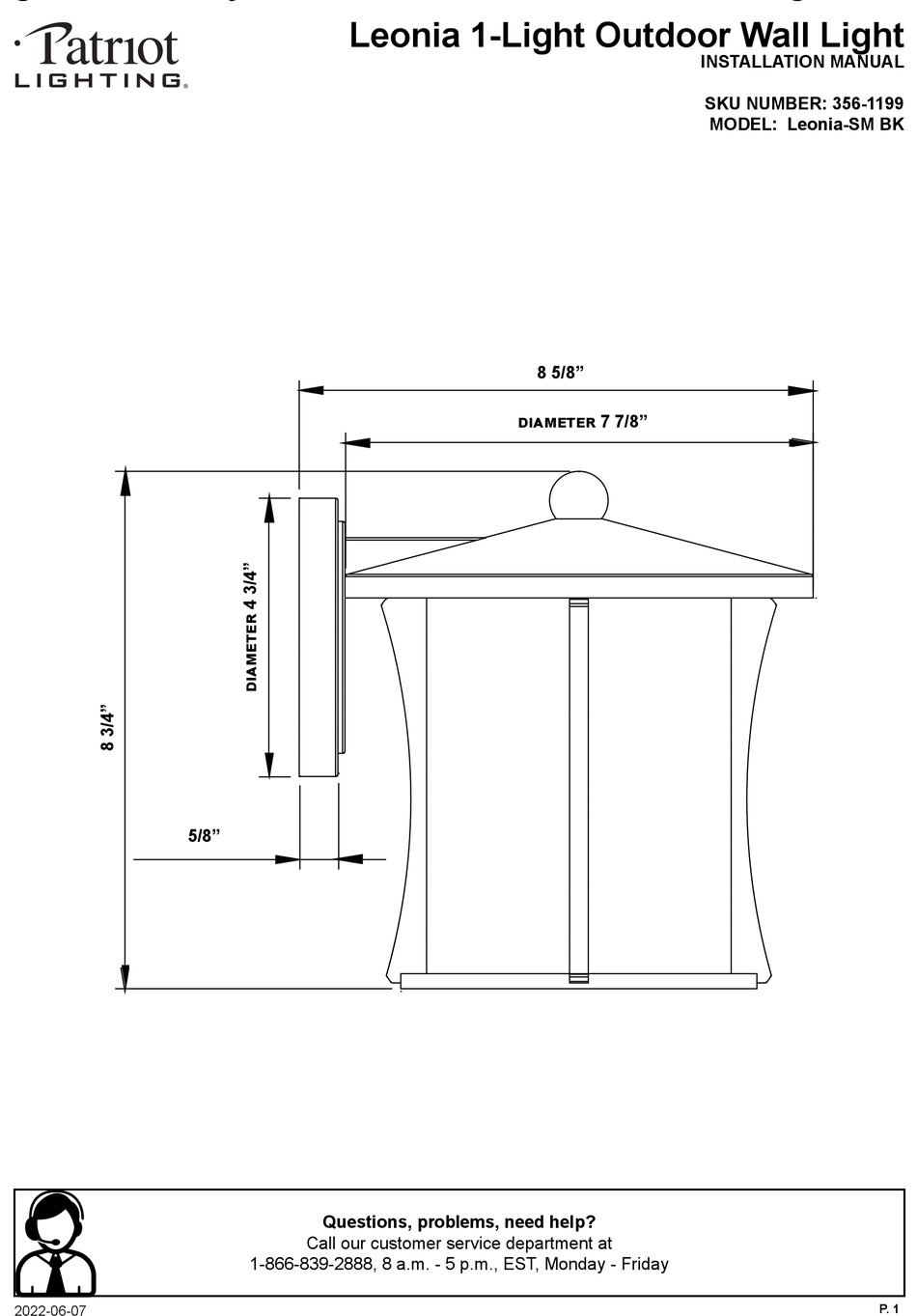

- Page 1 Leonia 1-Light Outdoor Wall Light INSTALLATION MANUAL SKU NUMBER: 356-1199 MODEL: Leonia-SM BK 8 5/8” diameter 7 7/8” 5/8” Questions, problems, need help? Call our customer service department at 1-866-839-2888, 8 a.m. - 5 p.m., EST, Monday - Friday P. 1 2022-06-07...
- Page 2 PACKAGE CONTENTS Bulb (not supplied) Junction box (not supplied) Not supplied P. 2...
- Page 3 PARTS LIST REPLACEMENT PART PART # DESCRIPTION QUANTITY AVAILABILITY Mounting Plate Not Available Fixture Backplate Not Available Glass Diffuser Not Available Frame Not Available Bolt #8x8 mm Not Available Cap Nut Not Available Bolt #8x15 mm Not Available Bolt (#8x19 mm) And Nut Not Available Twist-cap Connector Not Available...
- Page 4 Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. PATRIOT LIGHTING® is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with damage.
- Page 5 INSTALLATION 1.1. If the house ground wire is copper (option A) fix the copper (ground) wire from the junction box to the mounting plate (A) by wrapping it around the green (ground) bolt (FF), then connect it to the fixture copper (ground) wire with a provided twist cap connector (EE).
- Page 6 Patriot Lighting products will remain beautiful for many years if you properly care for them. Patriot Lighting does not recommend the use of harsh abrasive cleansers on any of its products. Harsh cleansers will damage the finish of your product.
