Large Die Crimping

CRIMPING WITH LARGE DIE SERIES

Crimping with large dies is essentially identical to crimping with the small dies except that the Cone Insert is
removed from the crimper base
Remove the Cone Insert from the
crimper base and lubricate all
contact surfaces of the die set.
WARNING: Failure to lubricate will
cause damage to die sets and
crimper

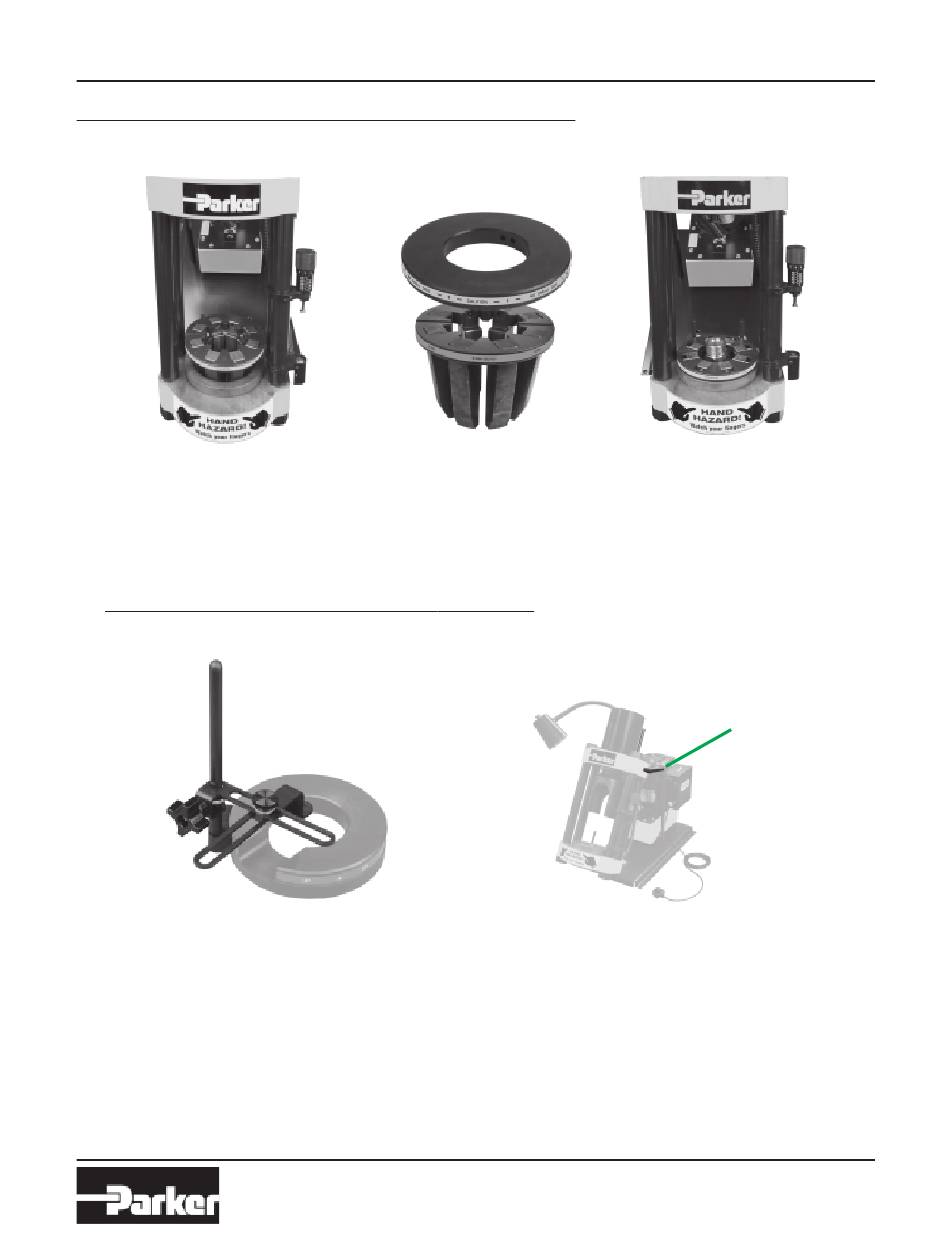

TH8-D206 CRIMPER FEATURES

The easily removable Coupling Stop makes
repetitive crimps faster by not having to
visually align the fitting before each crimp.
Crimping Machine
TH8-D206
Insert the die set and Pusher
Plate in the order illustrated.
The adjustable retraction stop limits the retraction
of the ram to only the amount required to easily
remove the hose and fitting. This feature saves
time when doing multiple crimps.
7
Align the hose and coupling as
recommended. Load the Pusher
Plate and Pusher and press and
hold the start/stop switch until the
crimper shuts off. Check the final
crimp diameter to be certain that it
is within specifications.
Retraction Stop
