Summary of Contents for Parker TH8-D206

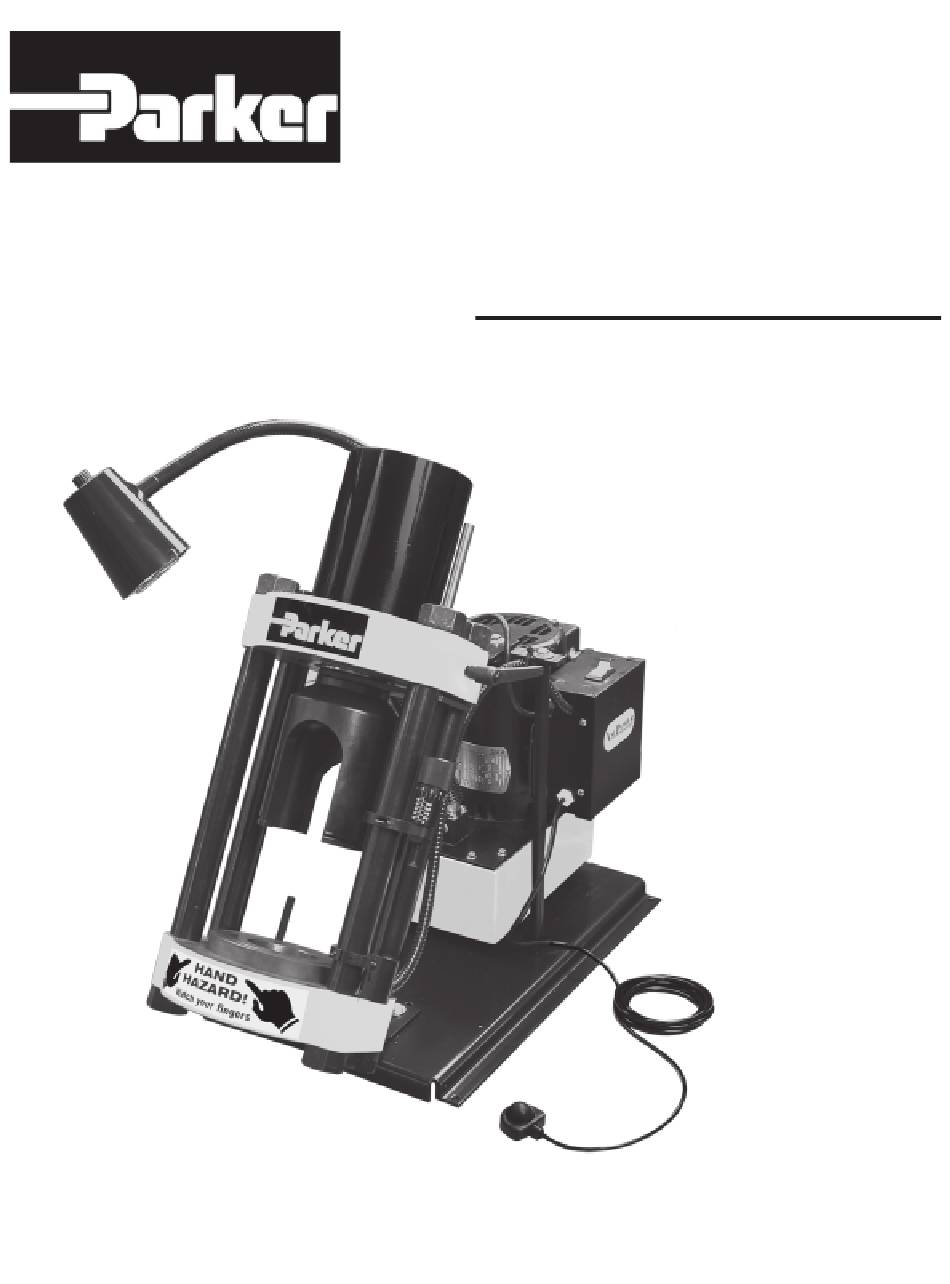

- Page 1 Bulletin 4480-T22-US Crimping Machine TH8-D206 Bulletin 4480-T22-US Technical Manual Crimping Machine Effective: July, 2004 TH8-D206 Hose Products Division Parker Hannifin Corporation Wickliffe, Ohio www.parkerhose.com...
-
Page 2: Table Of Contents
Injections by high-pressure fluid discharge. Before selecting or using any of these Products, it is important that you read and follow the instructions below. Only Hose from Parker’s Stratoflex Products Division is approved for in flight aerospace applications, and no other Hose can be used for such in flight applications. -
Page 3: Th8-D206 Component Identification (Pictures)
Bulletin 4480-T22-US Crimping Machine Component Identification (pictures) TH8-D206 TH8-D206 Component Identification Power Switch &Circuit Breaker Work Light Oil Fill & Vent Cap Pusher Micro-Crimp Adjuster Start/Stop Switch Bent Tube Standard Large Pusher Plate Pusher Plate Pusher Plate Small Die Series... -
Page 4: Quick Start Guider And Calibration Check
If the motor shuts off too quickly or before the dies are completely closed, rotate the stem in. If the motor does not shut off or shuts off in substantially more than 1 second, rotate the stem out. Recheck calibration. Hose Products Division Parker Hannifin Corporation Wickliffe, Ohio www.parkerhose.com... -
Page 5: Parker Crimp Specifications
Select crimper number TH8-D206 from the drop down menu, then click Crimp Spec button at left. You will then be able to choose from a list of hose and fitting combinations approved with this machine. Once the hose and fitting has been chosen, a page will open with all crimp information. -
Page 6: Crimping With Small Die Series
Check the finished crimp diameter to of the die set. hydraulic ram and press and hold the be certain that it is within the crimp start switch until the motor shuts off. specification limits. Hose Products Division Parker Hannifin Corporation Wickliffe, Ohio www.parkerhose.com... -
Page 7: Crimping With Large Die Series
Check the final crimper crimp diameter to be certain that it is within specifications. TH8-D206 CRIMPER FEATURES Retraction Stop The easily removable Coupling Stop makes The adjustable retraction stop limits the retraction repetitive crimps faster by not having to of the ram to only the amount required to easily visually align the fitting before each crimp. -
Page 8: Troubleshooting Guide
Check crimp diameter and re-calibrate if necessary PROBLEM: DIES STICKING IN COMPRESSION CONE Inadequate lubrication of the compression cone and die surfaces. Use only the grease shipped with the machine or equivalent. Hose Products Division Parker Hannifin Corporation Wickliffe, Ohio www.parkerhose.com... -
Page 9: Th8-D206 Component Identification (Graphic)
Bulletin 4480-T22-US Crimping Machine Component Identification TH8-D206 TH8-D206 COMPONENT IDENTIFICATION TH8-D206 Crimper Assembly (101996) ITEM PART NUMBER DESCRIPTION 101585 TH8-206 Base TH8-206 Support Rod 101624 90126A031 3/8 Flat Washer 92865A622 3/8-16 X 3/4 Hex Bolt TH8-206 Support Rod Brace 101621... - Page 10 Bulletin 4480-T22-US Crimping Machine Component Identification TH8-D206 TH8-D206 COMPONENT IDENTIFICATION TH8-D206 Crimper Head Assembly (101987) ITEM PART NUMBER DESCRIPTION 100679 80-Ton Cone Base 100642 Strain Rod Heavy Hex Nut 1 1/4-12 Gd.8 90500A040 100661 Limit Switch Bracket 91251A146 6-32 X 3/8 SHCS...
-
Page 11: Safety Guide (Parker Publication 4400-B.1)
• Injuries resulting from inhalation, ingestion or exposure to fluids. Before selecting or using any of these Products, it is important that you read and follow the instructions below. Only Hose from Parker’s Stratoflex Products Division is approved for in flight aerospace applications, and no other Hose can be used for such in flight applications. - Page 12 Parker’s Stratoflex Products Divi- electrically nonconductive, including but not limited to sion. Do not use any other Parker Hose for in flight applications near high voltage electric lines, only spe- applications, even if electrically conductive. Use of cial nonconductive Hose can be used.
- Page 13 2.10 Mechanical Loads: External forces can significantly tions are tHose available from Parker’s Stratoflex Prod- reduce Hose life or cause failure. Mechanical loads ucts Division. Do not use any other Hose or Fittings which must be considered include excessive flexing, for in flight applications.
- Page 14 For Parker damage to sealing surfaces are corrected or elimi- Hose that does not specify a Parker Fitting, the user is nated. See instruction 2.10 solely responsible for the selection of the proper Fit- 3.12 System Checkout: All air entrapment must be elimi-...
- Page 15 Never attempt to patch or repair a Hose As- replaced at specific replacement intervals, based on sembly that has failed. Consult the nearest Parker previous service life, government or industry recom- distributor or the appropriate Parker division for Hose mendations, or when failures could result in unaccept- Assembly replacement information.
-
Page 16: Offer Of Sale
(“Buyer”) shall be governed by all of the following Terms and Conditions. Buyer’s order for any such item, when communicated to Parker Hannifin Corporation, its subsidiary or an authorized distributor (“Seller”) verbally or in writing, shall constitute acceptance of this offer. - Page 17 Bulletin 4480-T22-US Crimping Machine TH8-D206 Parker Hannifin Corporation Hose Products Division 30240 Lakeland Boulevard Wickliffe, OH 44092 Phone: (440) 943-5700 Hose Products Division Fax: (440) 943-3129 Parker Hannifin Corporation www.parkerhose.com Wickliffe, Ohio www.parkerhose.com...
