Summary of Contents for Parker IQAN

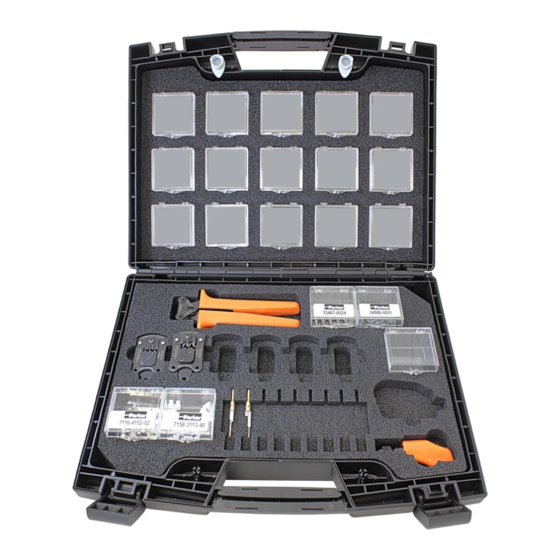

- Page 1 Manual Crimping & Extraction Parker – Repair Kit 6/16...
- Page 2 1 Introduction 1.1 General details 1.1.1 Description crimping tool……………………………………………………….. 4 Handling instruction stripping and crimping …………………………………... 5 1.1.2 Description extraction tool ……………………………………………………… 6 1.1.3 2 Processing tools …………………………………………… 7 2.1 Description housing, contacts, Parker – Repair Kit 6/16...
- Page 3 1 Introduction General Details 1.1.1 Description Crimping Tool - Press out the pins in direction of arrow - Open the handles completely - Attach tool head - Press in the pins in direction of arrow Parker – Repair Kit 6/16...
- Page 4 Open the tool, lay in the terminal and close the tool lightly until the terminal is held. Insert the cable. Close the tool until it opens automatically. Remove the crimped terminal out of the tool. Parker – Repair Kit 6/16...
- Page 5 - Insert the pin into the handle - Turn the knurled screw rightwards - Insert the extraction tool into the housing - Press contact towards the extraction tool - Remove the contact out of the housing Parker – Repair Kit 6/16...
- Page 6 Part No. / mm² 33467-0024 / 0,35 to 0,5 Part No. / Pol. 34566-0103 / 73 Part No. 20085125 Part No. 34586-0001 Part No. 20085129 Part No. / mm² 7116-4152-02 / 2,0 Part No. 7158-3113-40 Part No. 20085126 Parker – Repair Kit 6/16...
