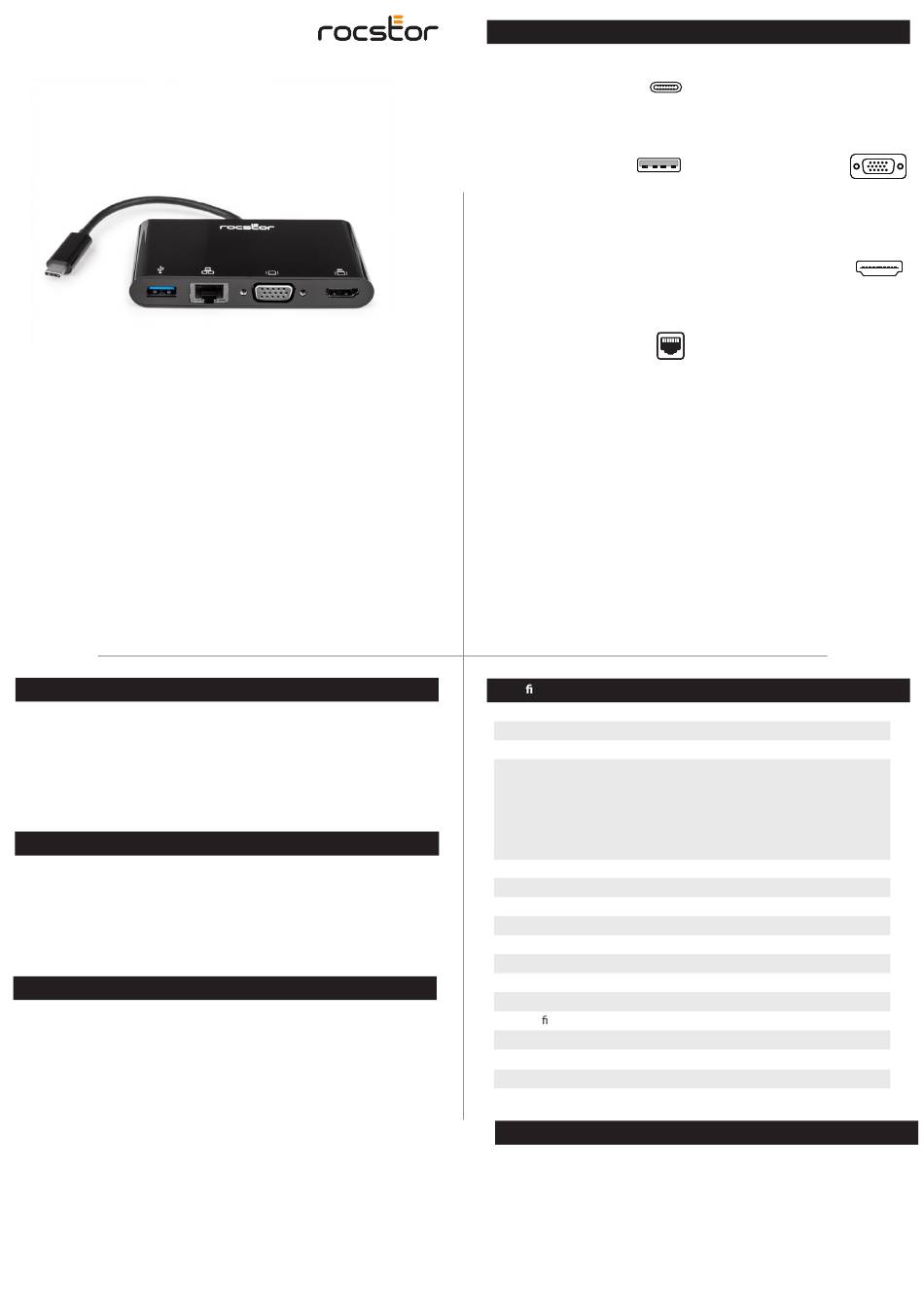

Rocstor Y10A248-B1 User Manual

User Manual
USB Type-C® Multiport Adapter - HDMI® 4K - VGA
GbE - USB®3.0 Port - Black
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.

Introduction

This is a premium Rocstor USB-C to USB 3.0, HDMI, VGA and RJ45 port Adapter. The
USB3.0 port allows you to connect a USB device or another hub to the host computer,
the Gigabit Ethernet port allows the host computer to get access to the network, and
the HDMI port and VGA port (DP Altmode) allows you to connect an HDMI monitor
and a VGA monitor so that you can watch videos or slideshows together on a big
screen. It can work on Macbook or Google new Chromebook Pixel and other USB-C
supported devices.

Package Contents

Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• 1 x Main Unit
• User Manual

How to Use

1- Connect the USB-C male port of this product to Macbook or
Chromebook or other USB-C host.
2- Connect HDMI output of this product to HDTV with one HDMI cable.
3- Connect VGA output of this product to VGA display with one VGA cable.
4- Connect the USB 3.0 output of this product to a USB 3.0/USB 2.0 device.
5- Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet
cable.
6- Automatically or manually set IP address of computer.
Y10A248-B1
®

Features

Upstream:
USB Type-C Male
(Connect to host computer)
Downstream:
USB-A
• Supports USB 3.0 super speed (5Gbps)
transmission, downward compatible
USB2.0.
• Supports max 900mA downstream
charging.
• Supports to charge and transmit data for
the USB device simultaneously.
RJ45
• Supports 10/100/1000Mbps bandwidth
for RJ45 port.
Features
• Support twisted pair crossover detection and auto-correction
• Support HDMI and VGA to display simultaneously
• Easy to use and Portable.
Note: When both video ports are connected, HDMI and VGA display the
same image with resolution up to 1080P@60Hz.
Speci cation

Input / Output Connector

Input
Output

Warranty

Limited Warranty

Environmental

Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

Regulatory Approvals

Certi cations

Power Supply

USB 3.0 Port

Accessories

User Manual

System Requirement

Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
VGA
• Supports VGA resolution up to
1920x1200@60Hz.
HDMI
• Supports HDMI video resolution up to
4Kx2K@30Hz,9Gbps Bandwidth.
USB Type-C Male x1
USB-C Male x1
HDMI Female x1
VGA Female x1
USB 3.0 Female x1
RJ45 x1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
UP to 4.5W (5V/0.9A)
English Version
