OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
REQUIRED MINIMUM VALUES:
24VDC : 1KΩ MIN, 2W MIN OR 3K9Ω MIN, 0.5W MIN
48VDC : 3.9KΩ MIN, 2W MIN OR 15KΩ MIN, 0.5W MIN
DC E2XC1X05 / E2XC1X10 UNITS
Line Monitoring
B
Stage 1: Apply power to Sounder +ve & -ve
Stage 2: Apply power to Sounder +ve & -ve. Connect Stage 2 to -ve
Stage 3: Apply power to Sounder +ve & -ve. Connect Stage 3 to -ve
C
-ve OUT
+ve OUT
EARTH
EARTH
D
STAGE 2
STAGE 2
-ve IN
E
+ve IN
EARTH OUT
EARTH IN
F
DRAWING TO BS8888:2000
DRAWN
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS R.S.RAIT
ANGULAR DIMENSIONAL TOLS
CHECKED
G
R.N.POTTS
STANDARDS
APPROVED
Ex N
R.N.POTTS
3 4

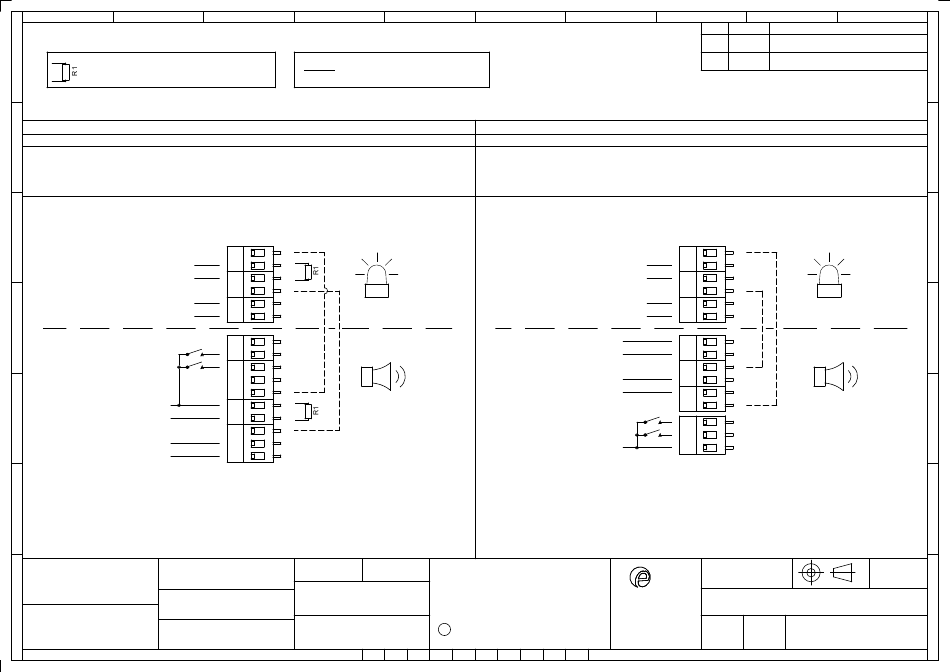

WIRING LINKING BEACON & SOUNDER
FACTORY FITTED
-
-
+
+
E
E
S3
S3
S2
S2
-
-
+
+
E
E
SURFACE FINISH WEIGHT (Kg)
DATE
05/08/2020
MATERIAL
DATE
05/08/2020
ALTERNATIVE MATERIAL
DATE
05/08/2020
5 6
TO OPERATE SOUNDER AND BEACON
INDEPENDENTLY, REMOVE FACTORY
FITTED WIRES LINKING THE UNITS
AC E2XC1X05 / E2XC1X10 UNITS
Power: Live & Neutral
Stage 1: Apply power to Sounder L & N
Stage 2: Apply power to Sounder L & N. Connect Stage 2 to Common
Stage 3: Apply power to Sounder L & N. Connect Stage 3 to Common
LIVE OUT
NEUTRAL OUT
EARTH IN
EARTH OUT
NEUTRAL IN
LIVE IN
STAGE 3
STAGE 2
COMMON
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
