Volume Control; Maintenance, Overhaul & Repair; Tone Table - E2S E2xC1X05R Manual

12.2

Volume Control

Warning - High noise levels above 85dB(A)
during operation. High levels of noise may
cause hearing loss, wear suitable ear
protection when equipment is in operation.
The output level of the E2x sounder can be set by adjusting
the volume control potentiometer (see Fig 4a for AC & Fig 6a
for DC). For maximum output, set the potentiometer fully
clockwise.
13) Interchangeable & Spare Parts
Warning – Hot surfaces. External surfaces
and internal components may be hot after
operation, take care when handling the
equipment.
The Beacon lens cover is interchangeable, contact E2S Ltd
for a replacement lens cover available in various colours.
To change the lens cover, unscrew the 4-off M5 Cap screws,
spring and flat washers using a 4mm Allen Key. Remove the
wire guard and replace the old cover with the new cover.

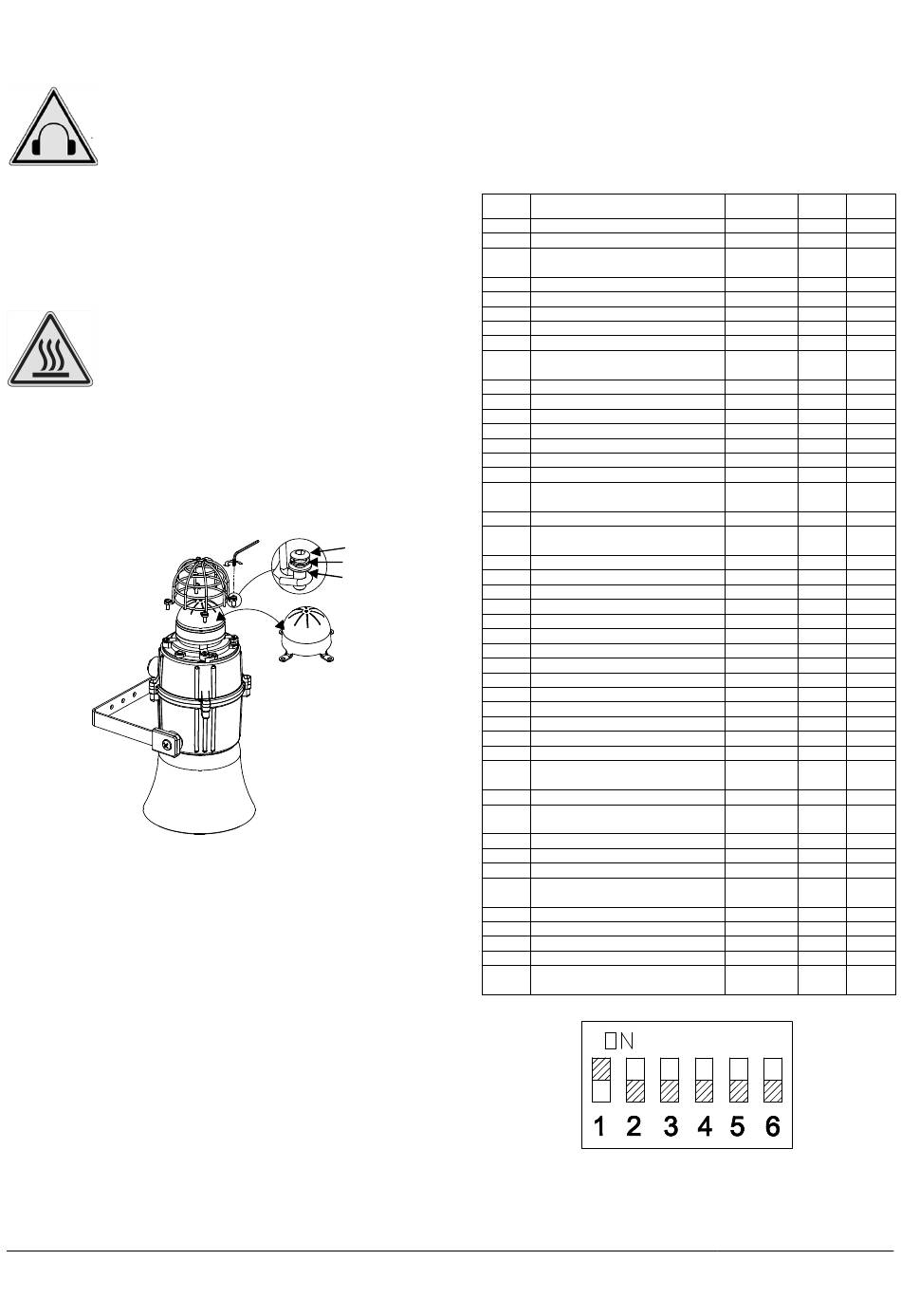

Fig. 10 Replacement of beacon lens cover
Fit the wire guard back onto the housing, over the new lens
cover aligning the fixing holes of the guard, lens cover and
housing. Refit the fixings to hold into place, the fixings MUST
be fitted in the order shown above.
14) Maintenance, Overhaul & Repair
Maintenance, repair and overhaul of the equipment should
only be carried out by suitably qualified personnel in
accordance with the current relevant standards:
EN60079-19 Explosive atmospheres - Equipment repair,
IEC60079-19 overhaul and reclamation
EN 60079-17 Explosive atmospheres - Electrical
IEC60079-17 installations inspection and maintenance
To avoid a possible ELECTROSTACTIC CHARGE the unit
must only be cleaned with a damp cloth.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D209-00-501-IS
M5 screw
M5 spring washer
M5 flat washer
Issue 1 20-08-22
Units must not be opened while an explosive atmosphere is
present.
If opening the unit during maintenance operations a clean
environment must be maintained and any dust layer removed
prior to opening the unit.

15) Tone Table

Stage 1 Frequency Description
1 340Hz Continuous
800/1000Hz @ 0.25 sec Alternating
2
500/1200Hz @ 0.3Hz sec
3
Slow Whoop
800/1000Hz @ 1Hz Sweeping
4
5 2400Hz Continuous
2400/2900Hz @ 7Hz Sweeping
6
2400/2900Hz @ 1Hz Sweeping
7
500/1200/500Hz @ 0.3Hz Sweeping
8
1200/500Hz @ 1Hz - DIN
9
PFEER P.T.A.P.
2400/2900Hz @ 2Hz Alternating
10
1000Hz @ 1Hz Intermittent
11
800/1000Hz @ 0.875Hz Alternating
12
2400Hz @ 1Hz Intermittent
13
14 800Hz 0.25 sec on, 1 sec off Intermittent
15 800Hz Continuous
660Hz 150mS on, 150mS off Intermittent
16
544Hz (100mS)/440 Hz (400m/S)
17
- NF S 32-001
18 660Hz 1.8 sec on, 1.8 sec off Intermittent
1.4KHz - 1.6KHz 1s, 1.6KHz - 1.4
19
KHz 0.5s - NFC48-265
20 660Hz Continuous
554Hz/440Hz @ 1Hz Alternating
21
544Hz @ 0.875 sec Intermittent
22
800Hz @ 2Hz Intermittent
23
800/1000Hz @ 50Hz Sweeping
24
2400/2900Hz @ 50Hz Sweeping
25
26 Bell
27 554Hz Continuous
28 440Hz Continuous
800/1000Hz @ 7Hz Sweeping
29
30 300Hz Continuous
660/1200Hz @ 1Hz Sweeping
31
32 Two tone chime
745Hz @ 1Hz Intermittent
33
1000 & 2000Hz @ 0.5 sec
34
Aletrnating - Signapore
420Hz @ 0.625 Sec Australian Alert
35
500-1200Hz 3.75 sec /0.25 sec
36
Australian Evac.
37 1000Hz Continuous - PFEER Toxic Gas
38 2000Hz Continuous
800Hz 0.25 sec on, 1 sec off Intermittent
39
544Hz (100mS)/440Hz (400mS)
40
- NF S 32-001
41 Motor Siren - slow rise to 1200Hz
42 Motor Siren - slow rise to 800Hz
43 1200Hz Continuous
44 Motor Siren - slow rise to 2400Hz
1KHz 1s on, 1s off Intermittent
45
- PFEER Gen. Alarm
Fig. 9 Dip Switch
1=ON; 0=OFF
Example shown: 100000 = Tone 2 (Default Setting)
www.e2s.com
Switch
Stage 2 Stage 3
1 2 3 4 5 6
0 0 0 0 0 0 Tone 2 Tone 5
1 0 0 0 0 0 Tone 17 Tone 5
0 1 0 0 0 0 Tone 2 Tone 5
1 1 0 0 0 0 Tone 6 Tone 5
0 0 1 0 0 0 Tone 3 Tone 20
1 0 1 0 0 0 Tone 7 Tone 5
0 1 1 0 0 0 Tone 10 Tone 5
1 1 1 0 0 0 Tone 2 Tone 5
0 0 0 1 0 0 Tone 15 Tone 2
1 0 0 1 0 0 Tone 7 Tone 5
0 1 0 1 0 0 Tone 2 Tone 5
1 1 0 1 0 0 Tone 4 Tone 5
0 0 1 1 0 0 Tone 15 Tone 5
1 0 1 1 0 0 Tone 4 Tone 5
0 1 1 1 0 0 Tone 2 Tone 5
1 1 1 1 0 0 Tone 18 Tone 5
0 0 0 0 1 0 Tone 2 Tone 27
1 0 0 0 1 0 Tone 2 Tone 5
0 1 0 0 1 0 Tone 2 Tone 5
1 1 0 0 1 0 Tone 2 Tone 5
0 0 1 0 1 0 Tone 2 Tone 5
1 0 1 0 1 0 Tone 2 Tone 5
0 1 1 0 1 0 Tone 6 Tone 5
1 1 1 0 1 0 Tone 29 Tone 5
0 0 0 1 1 0 Tone 29 Tone 5
1 0 0 1 1 0 Tone 2 Tone 15
0 1 0 1 1 0 Tone 26 Tone 5
1 1 0 1 1 0 Tone 2 Tone 5
0 0 1 1 1 0 Tone 7 Tone 5
1 0 1 1 1 0 Tone 2 Tone 5
0 1 1 1 1 0 Tone 26 Tone 5
1 1 1 1 1 0 Tone 26 Tone 15
0 0 0 0 0 1 Tone 2 Tone 5
1 0 0 0 0 1 Tone 38 Tone 45
0 1 0 0 0 1 Tone 36 Tone 5
1 1 0 0 0 1 Tone 35 Tone 5
0 0 1 0 0 1 Tone 9 Tone 45
Tone 45
1 0 1 0 0 1 Tone 34
0 1 1 0 0 1 Tone 23 Tone 17
1 1 1 0 0 1 Tone 31 Tone 27
0 0 0 1 0 1 Tone 2 Tone 5
1 0 0 1 0 1 Tone 2 Tone 5
0 1 0 1 0 1 Tone 2 Tone 5
Tone 5
1 1 0 1 0 1 Tone 2
0 0 1 1 0 1 Tone 38 Tone 34
