DOL 45R-T

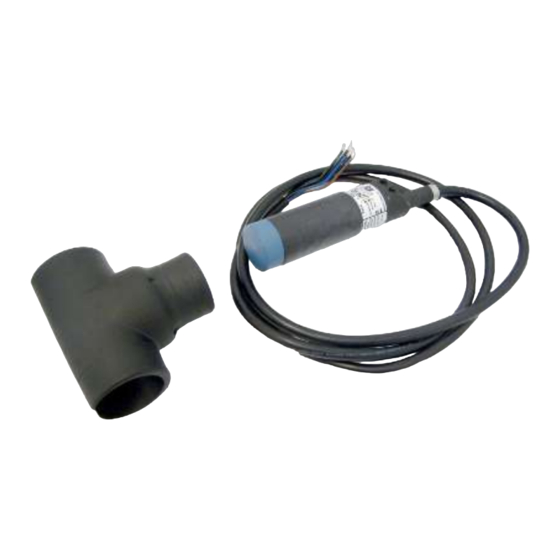

Capacitive Relay-Sensor
For other language variants of this document we refer to
your local dealer.
dol-sensors a/s
– Agro Food Park 15
– DK-8200 Aarhus N
– T: +45 7217 5888
Technical User Guide
www.dol-sensors.com
– F: +45 7217 5959
– www.dol-sensors.com
or
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for dol sensors 45R-T
Summary of Contents for dol sensors 45R-T

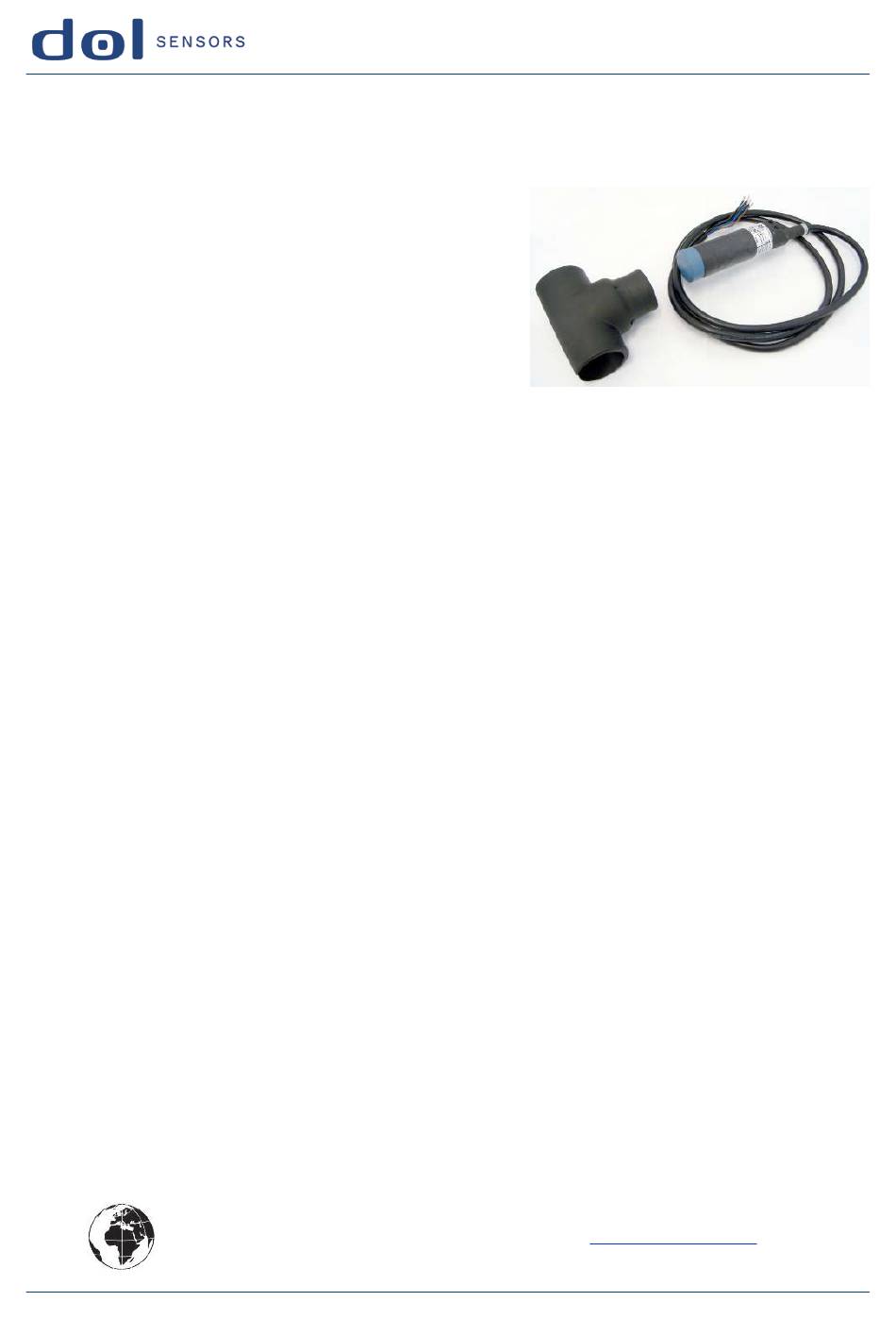

- Page 1 Technical User Guide DOL 45R-T Capacitive Relay-Sensor For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959...
- Page 2 Technical User Guide 1 Product description DOL 45R-T is designed for general detection of feed, grain and solids in tanks, silos and containers. The pow- erful integrated relay means that it can control many functions directly. The sensor's electronics are completely embedded in a thermoplastic casing. This achieves a very high resis- tance to moisture and other external influences in aggressive environments.
- Page 3 Change delay: Hold A + press 4xB (+10 sec.) hold A + 5+B (÷5 sec.) Hold A + 6+B (+1 hour.) Switch off delay.: Hold A + press 7xB switch off LED Hold A + 8xB Switch on LED Hold A + 9xB www.dol-sensors.com DOL 45R-T...
- Page 4 Technical User Guide 5 Technical data Electrical V AC/DC 10-30 Supply voltage V AC 90-250 variant depending 50 - 60 Frequency V AC Relay switch max. current 5 A at cos φ = 1 Relay switch max. current 2 A at cos φ = 0,8 0,35 A at cos φ...
