Technical User Guide
www.dol-sensors.com
– F: +45 7217 5959
– www.dol-sensors.com
or
Advertisement
Related Manuals for dol sensors 20R
Summary of Contents for dol sensors 20R
- Page 1 Technical User Guide DOL 20R capacitive sensor For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959...

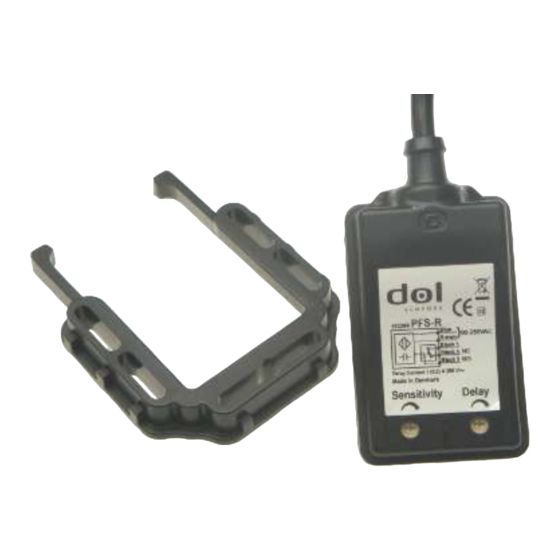

- Page 2 Technical User Guide 1 Product description DOL 20R is a capacitive sensor for detection of loose and solid materials. The sensor has a 5-way connection, power supply and a potential-free relay with NC and NO outputs. The product is intended for contactor operation, but will be well suited for a number of other agricultural and in- dustrial applications.
- Page 3 Distance can be adjusted on the trimmer. Sensor MaxRun-timer: DOL 20R Settings on the trimmer: Off, Period 1, Period 2 Contact 5 Maintenance If the sensor is located in a particularly dirty environment, it may be necessary to clean the area around the sensor.
- Page 4 Technical User Guide 0-12* Operating distance (Sn) 0-0.47* Adjustable 8-10 Hysteresis (H) Mechanical m (ft.) 2 (6.5) Cable length mm² (AWG) 5x0.5 (5x20) Cable dimensions Included Frame for mounting sensor Environment °C (°F) -20 - +70 (-4 – 158) Temperature, operation °C (°F) -30 - +80 (-22 –...
