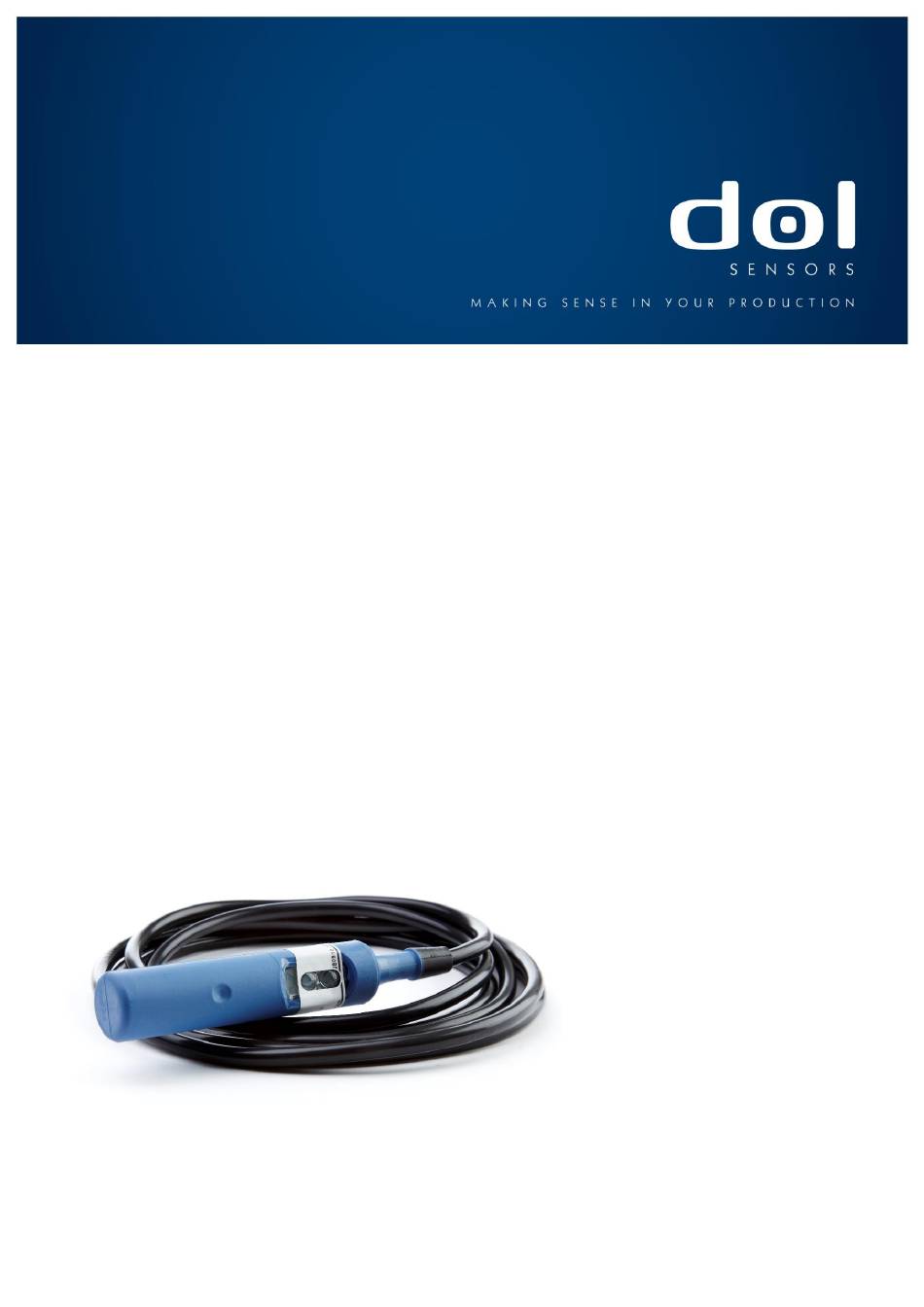

- Page 1 DOL 25 PNP/NPN/SCR TECHNICAL USER’S GUIDE...
- Page 2 EN - DOL 25 SENSOR TECHNICAL USER’S GUIDE EN - DOL 25 SENSOR TECHNICAL USER’S GUIDE PRODUCT DESCRIPTION DOL 25 is a small capacitive proximity sensor with adjustable sensitivity for detection of grain and solids. The sensor can have adjustable OFF time delay. DOL 25-PNP/NPN The sensor is DC supplied and has two NPN or PNP outputs (NO and NC).
- Page 3 EN - DOL 25 SENSOR TECHNICAL USER’S GUIDE INSTALLATION GUIDE PNP (Figure 4)/NPN (Figure 5) electric installation: 10-36 V DC Connect the sensor to a DC supply and connect the loads between the outputs and V- for the PNP version and V+ for the NPN version.
- Page 4 EN - DOL 25 SENSOR TECHNICAL USER’S GUIDE Sensor dimensions, Figure 9: Cable length Conductor dimensions 4 x 0.26 mm (AWG22) M12 sensor plug Conductor colours Brown 1. V+ Black NO output 2. NC output White NC output 3. V- 4.
