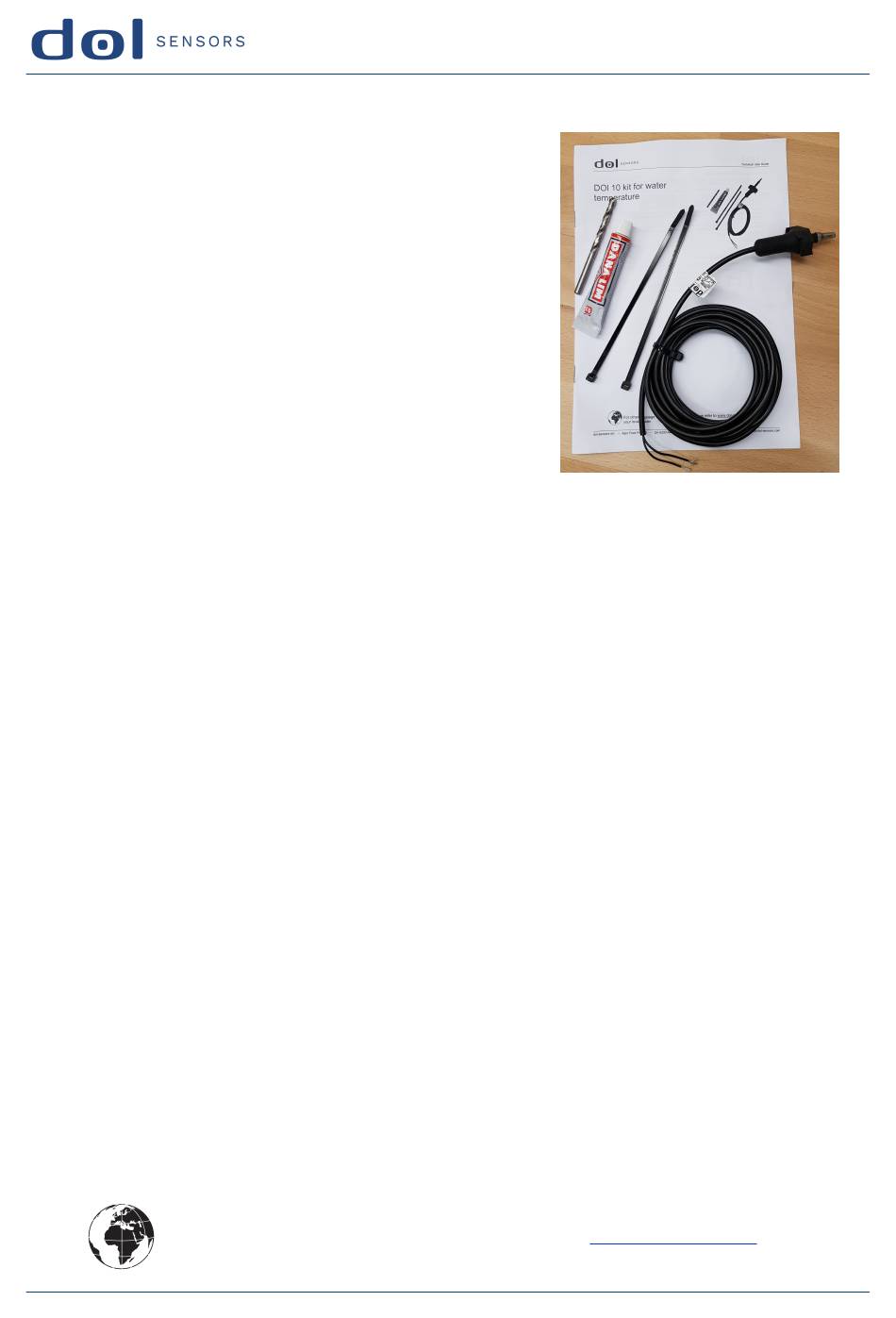

- Page 1 Technical User Guide DOl 10 kit for water temperature For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959...

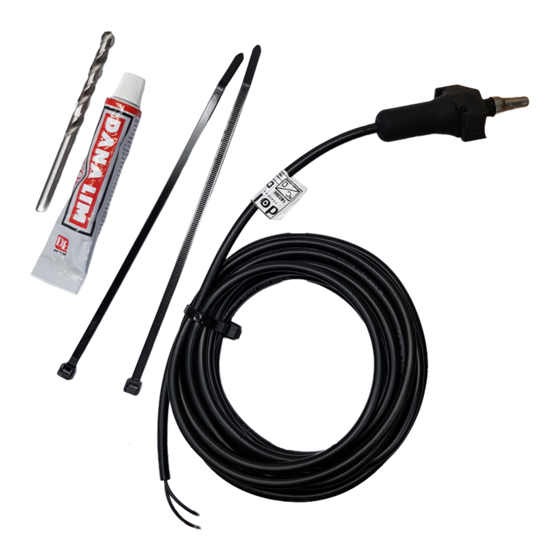

- Page 2 • Copyright by dol-sensors. 1 Product description DOL 10 kit is used to measure the water temperature in the water line in connection with water flushing. (A) Controller (B) Water line (C) Cable two-wire, Ø5 mm...
- Page 3 Technical User Guide 2 Mounting guide 2.1 Recommended tools Below follows a list of tools recommended for installation of the DOL 10 kit. Item Description Tape measure Cordless drill Needle-nose pliers Side cutter 2.2 Mounting Must be mounted approx. 2/3 from the start of the middle water line.
- Page 4 Apply glue to the sensor body and pull the sensor into the rubber case by pulling the cable. NB! NOTE! While pulling, rotate the sensor to distribute the silicone glue in the entire case. www.dol-sensors.com DOl 10 kit for water temperature...
- Page 5 Place the two strips in the two grooves on the rubber case. Tighten the strips to make sure the case fits closely to the water line. Cut off the strips and fasten the DOL 10 cable to the installation and connect it to the controller as specified in Circuit Diagram [} 6].
- Page 6 4.36 8.43 3.19 24.94 5.73 13.68 4.30 8.24 3.14 24.17 5.66 13.30 4.23 8.06 3.09 23.44 5.59 12.93 4.16 7.26 2.87 22.72 5.51 12.58 4.10 6.59 2.68 Table 1: Sensor characteristics. *Zero power measurement www.dol-sensors.com DOl 10 kit for water temperature...
- Page 7 Technical User Guide Example of connection. For correct connection see the controller documentation. Temperature sensor Figure 2: Example of connection. DOl 10 kit for water temperature www.dol-sensors.com...
- Page 8 Technical User Guide 4 Maintenance The product may be cleaned by a high-pressure cleaner without using: • solvents • corrosive/caustic agents 5 Technical data Electrical °C -40 to +60 Measurement range °C +0.5 Accuracy < 90 sec. Time constant Mechanical TECHNOMELT®...
