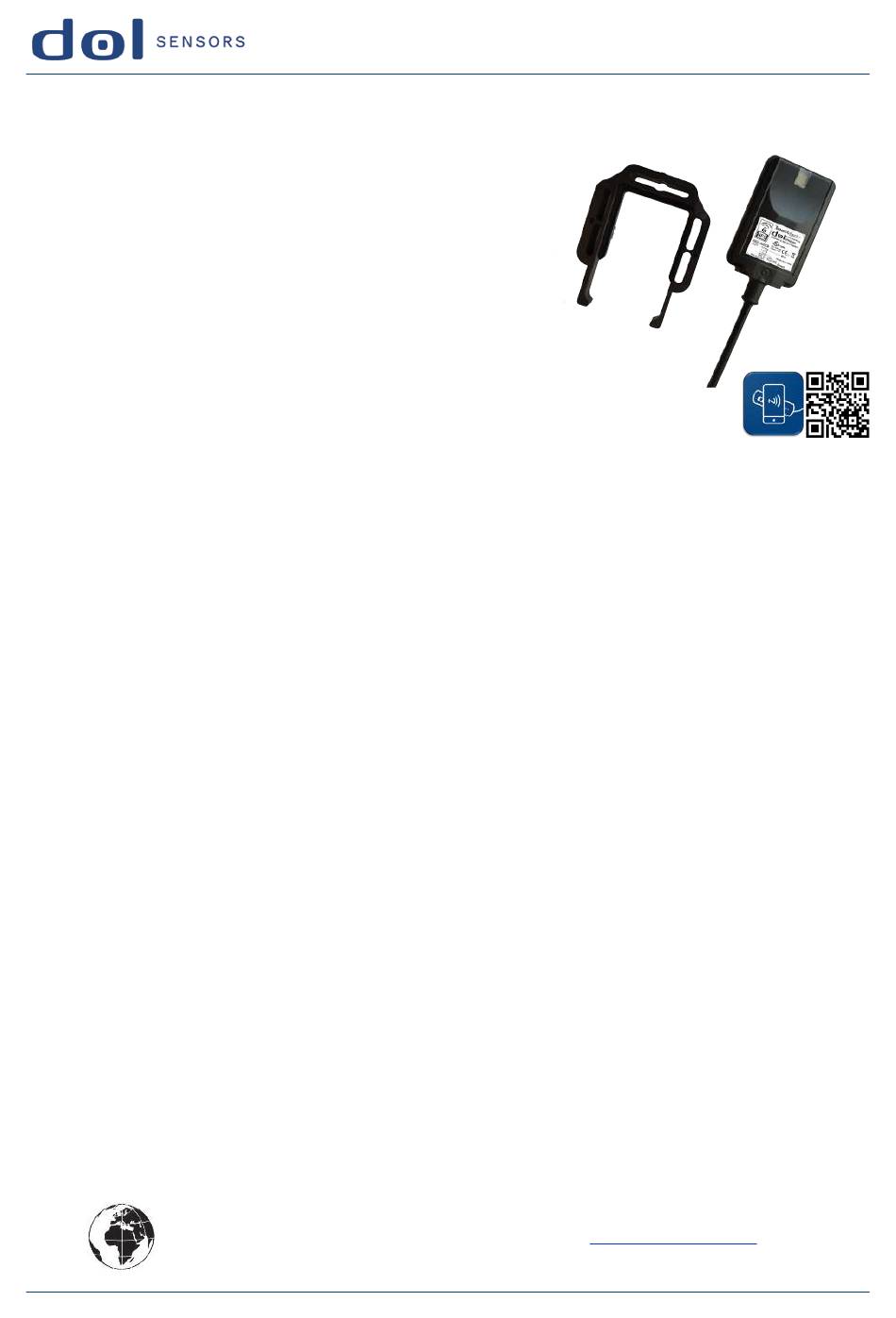

- Page 1 Technical User Guide iDOL 20SCR capacitive sensor SmartAdjust For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959...
- Page 2 Technical User Guide 1 Product description iDOL 20SCR is a capacitive sensor for detection of loose and solid materials. The sensor has a 2-wire connection (ON or OFF), which is protected against higher current (Ie) than specified, incl. connection / short-circuit directly to supply voltage.
- Page 3 < 3 (Ue = 20 - 90) OFF current (Ir) mA RMS/DC < 1 (Ue = 90 - 280) < 6 Voltage drop (Out) (current > 20 RMS/V DC < 150 Time delay, start-up 0 - 3600 Time delay, ON (adjustable) www.dol-sensors.com iDOL 20SCR...
- Page 4 Technical User Guide 0 - 3600 Time delay, OFF (adjustable) 0 - 12 Operating distance (Sn) (ad- 0 - 0.47 justable) 4 - 10 Safe activation distance (Sa) 0.16 - 0.39 Repeatability (R) 4 - 10 Hysteresis (H) 0 - 7200 MaxRunTimer* (adjustable) Red LED LED indicator for sensor ON...
