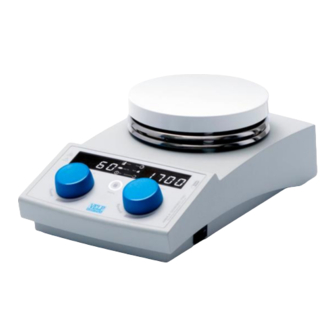

Velp Scientifica AREX-6 Connect PRO How To Connect

CONTACT YOUR IT SPECIALIST FOR ALL THE INFORMATION ABOUT YOUR WIFI
CONNECTION

1. ACTIVATE ERMES ACCOUNT

o Create Your VELP Account or login if you already have it.
o Access to your profile page and select
Account". Accept Terms and Conditions and Activate your
Ermes
Ermes account.
o An email will be send to the email address that you have insert
during the registration containing your ID, Password and a link to
proceed to VELP Ermes authentication.
o At the first login on VELP Ermes a new password will be request:
remember to change it!

2. CONNECT TO YOUR WIFI CONNECTION

o Turn
on your
VELP_AREX6_(serial number) available on the Wi-Fi list, in order
to connect the instrument.
Note If the instrument doesn't appears in the list or it was already
configured with another WiFi, follow the RESET procedure:
1. Push for 3 seconds both knobs
2. Push the central button until is displayed STAR AP
3. Push and Rotate the right knob to select YES
4. Push the right knob to confirm
5. Select VELP_AREX6_(serial number) available on the Wi-Fi list,
in order to connect the instrument.
o Open a browser from your device, insert the address 192.168.0.50
and set the parameters required to connect the instrument to your
Wi-Fi and press on Push to confirm. As Passkey, insert: velp
EXAMPLE:
PassKey: velp
SSID: (your WiFi name)*
Pwd: (your WiFi password)*
Auth: Wpa & WPA2 Personal
Press on Push to confirm and wait until the "This site can't be
reached" is displayed on your screen.
*If necessary, please contact your IT administrator.
o Wait until the Wi-Fi LED Icon stop blinking.
NOTE: If the LED is still blinking after 2 minutes, please try the
procedure again and check if connection parameters are correct.
AREX6 CONNECT PRO/A1
"Configure Your VELP
AREX-6 Connect PRO,
How to Connect to Ermes Platform
AREX-6 Connect PRO
1
select the
3
2
4
1/2
