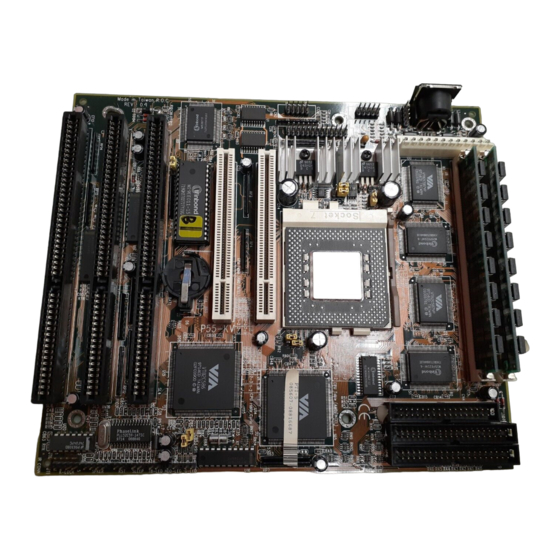

The P55-KV
mainboard is a high performance system hardware based on
R
Intel Pentium processor and is equipped with two PCI slots, three standard
ISA slots, Super Multi-I/O controller and dual port PCI-IDE connectors for
the future expansion. The hardware dimension is 220mm x 190mm with a
four-layer-design technology.
Specification
VIA VT82C580VPX PCIset chipset.
R
Intel Pentium Processor, AMD K5 & Cyrix M1 operating at 75 ~ 200 MHz
and P55C with 321 ZIF socket 7 and scalability to accept faster Processors
in the future.
Supports up to 128 MegaBytes of DRAM (a minimum of 4 MB) on board
(72 Pins SIMM x 2). BIOS will autometically detect and configure FP DRAM
and EDO DRAM (Refer to Chapter 2-4 System Memory Configuration).
Supports Onboard Pipelined Burst (synchronous) L2 Write Back Cache.
The cache memory combination can be 256KB/512KB (32KB*32, 64KB*32
SRAM, respectively).
Supports three 16 bit ISA slots, two 32 bit PCI slots, and provides two
independent high performance PCI IDE interfaces capable of supporting
PIO Mode 3 and Mode 4 devices. The P55-KV supports two PCI Bus
Masters and a jumperless PCI INT# control scheme which reduces configu-
ration confusion when plugging in PCI I/O controller card(s).
Supports ATAPI (e.g. CD-ROM) devices on both IDE interfaces.
Supports 1 floppy port, 1 parallel port (EPP,ECP port), and 2 serial ports
(16550 Fast UART compatible).
Supports a PS/2 style mouse and standard AT style keyboard connectors.
Supports Award Plug & Play BIOS . The BIOS is stored in Flash EPROM
form. It provides better upgradeability for the system.
Supports CPU Hardware sleep and SMM (System Management Mode).
P55-KV utilizes Lithium battery which provides environmental protection
and longer battery life.
Introduction 1-1
Chapter 1
Introduction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P55-KV and is the answer not in the manual?

Questions and answers

Summary of Contents for EPOX P55-KV

  • Page 1 Supports three 16 bit ISA slots, two 32 bit PCI slots, and provides two independent high performance PCI IDE interfaces capable of supporting PIO Mode 3 and Mode 4 devices. The P55-KV supports two PCI Bus Masters and a jumperless PCI INT# control scheme which reduces configu- ration confusion when plugging in PCI I/O controller card(s).
  • Page 2 1-2 P55-KV P55-KV Layout COM2 COM1 CONN. PRINTER Power Conn. Socket 7 32K * 32 32K * 32 82C586A FDD CONN. 82C585VPX Secondary IDE Primary IDE KEY-LOCK SPEAKER RESET SLEEP TB-LED HD-LED G-LED Figure 1-1...
  • Page 3: Hardware Design

    The Winbond W83877F Super I/O controller provides the standard PC I/O functions including: floppy interface, two 16 Byte FIFO serial ports and EPP/ECP capable parallel port. The P55-KV layout is shown in the previous page (left page) for user's reference. Care must be taken when inserting memory modules, inserting CPU or even plugging PCI cards into the associated slots to avoid damaging any circuits or sockets on board.
  • Page 4: Connectors And Jumpers

    P55-KV 2-2 Connectors and Jumpers This section describes all of the connectors and jumpers built into the mainboard. Please refer to Figure 1-1 (page 1-2) for the location of each connector and jumper. KeyLock - Keyboard lock switch & Power LED connector 1.Power LED(+)
  • Page 5 Hardware Design PS/2 MOUSE CONNECTOR 1.RED wire 2.BLUE wire 3.GREEN wire 4.NC 5.YELLOW wire IrDA/ASK IR CONNECTOR 1.VCC 2.NC 3.IRRX 4.GND 5.IRTX EPROM BIOS Selection 1-2 : 5V Flash EPROM.(Default) 2-3 : 12V Flash EPROM...
  • Page 6 P55-KV Intel Pentium Processor & with MMX technology AMD K5, K6 Installation Clock/CPU Op. 50/75 MHz 60/90 MHz 66/100 MHz J9 J8 J7 60/120 MHz 66/133 MHz 60/150 MHz 66/166 MHz 60/180 MHz 66/200 MHz Cyrix / IBM 6x86/L/MX Installation...
  • Page 7: System Memory Configuration

    Total Size 16MB 16MB 16MB 32MB 32MB 32MB 64MB 64MB 64MB 128MB Memory Configuration Table NOTE : 1. P55-KV supports both Fast Page DRAM and EDO DRAM SIMMs, but they cannot be used in different SIMM at the same time.
  • Page 8: Cache Memory Configuration

    2-4 Cache Memory Configuration The second level (L2) of cache is installed in the mainboard to increase the system performance. The P55-KV supports two types of combinations for the cache installation. Please refer to the following configurations for the details.
  • Page 9: Integrated Pci Bridge

    There are four interrupts in each PCI slot : INTA#, INTB#, INTC#, and INTD#. Since the P55-KV adapts the PCI auto-configuration with the system BIOS Setup utility. When the system is turned on after adding a PCI add-in card, the BIOS automatically configure interrupts, DMA channels, I/O space, and other paramaters.
  • Page 10: Award Bios Setup

    AWARD BIOS 3-1 CHAPTER 3 AWARD BIOS SETUP Award's ROM BIOS provides a built-in Setup program which allows user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS RAM so data will be retained even when the power is turned off.
  • Page 11: Standard Cmos Setup

    This menu shows all of the manufacturer's default values of P55-KV. Again, user can move the cursor by pressing direction keys and <PgDn> or <PgUp> keys to modify the parameters.
  • Page 12 AWARD BIOS 3-3 ROM PCI/ISA BIOS(2A5LDPAD) BIOS FEATURES SETUP AWARD SOFTWARE, INC. Virus Warning : Disabled Video BIOS Shadow : Enabled CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled External Cache : Enabled CC000-CFFFF Shadow : Disabled Boot Sequence : A, C D0000-D3FFF Shadow...
  • Page 13 3-4 CHAPTER 3 Quick Power On Self Test:This category speeds up Power On Self Test (POST) after you power on the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST. Enabled : Enable quick POST. Disabled: Normal POST.
  • Page 14 AWARD BIOS 3-5 Typematic Rate Setting This determines the typematic rate. Enabled Enable typematic rate and typematic delay programming. Disabled Disable typematic rate and typematic delay programming. The system BIOS will use default value of this 2 items and the default is controlled by keyboard.
  • Page 15: Chipset Features Setup

    3-6 CHAPTER 3 C8000 - CBFFF Shadow : CC000 - CFFFF Shadow: D0000 - D3FFF Shadow: D4000 - D7FFF Shadow: D8000 - DBFFF Shadow: DC000 - DFFFF Shadow: These categories determine whether optional ROM will be copied to RAM by 16K byte or 32K byte per/unit and the size depends on chipset.
  • Page 16 AWARD BIOS 3-7 DRAM Timing: The default value is 60ns. 60ns : 2 (faster) Burst Wait State, for 60~70ns Fast Page Mode/EDO DRAM. 70ns : 3 (slower) Burst Wait State, for 70ns Fast Page Mode/EDO DRAM. : The default value is Enabled. Video BIOS Cacheable Enabled : Enabled the Video BIOS Cacheable to speed up the VGA Performance.
  • Page 17: Power Management Setup

    3-8 CHAPTER 3 3-4 POWER MANAGEMENT SETUP Choose the "POWER MANAGEMENT SETUP" in the CMOS SETUP UTILITY to display the following screen. This menu allows the user to modify the power management parameters and IRQ signals. In general, these parameters should not be changed unless it is absolutely necessary.
  • Page 18: Description Of The Green Functions

    Valid range is from 1 minute up to 1 hour. 3-4-2 Description of the Green Functions The P55-KV supports HDD Power Down, Doze & Suspend power saving functions. In addition, the hardware suspend function is supported when the J11-SLEEP (Refer to Figure1-1) is closed to enter the Suspend function.
  • Page 19: Pnp/Pci Configuration

    3-10 CHAPTER 3 PM Events: AWARD BIOS defines 15 PM Events in the power management mode (Doze & suspend). The user can initialize any PM Events to be "Enable" or "Disable". When the system detects all of the enabled events, do not have any activity. It will start the system Doze timer first if the "Power Management"...
  • Page 20 AWARD BIOS 3-11 Resource Controlled By:The default value is Manual. Manual:The field defines that the PNP Card's resource is controlled by manual. You can set which IRQ-X and DMA-X assigned to PCI/ISA PNP or Legacy ISA Cards. Auto: If your ISA card and PCI card are all PNP cards. To set this field Auto. The BIOS will be assigned the interrupt resource automatically.
  • Page 21: Integrated Peripherals

    3-12 CHAPTER 3 3-6 INTEGRATED PERIPHERALS ROM PCI/ISA BIOS(2A5LDPAD) INTEGRATED PERIPHERALS WARD SOFTWARE, INC. Onboard Primary PCI IDE : Enabled Onboard Secondary PCI IDE : Enabled IDE Prefetch Mode : Enabled IDE primary Master PIO : Auto IDE Primary Slave PIO : Auto IDE Secondary Master PIO : Auto...
  • Page 22 AWARD BIOS 3-13 IDE Primary Master PIO: The default value is Auto. Auto : BIOS will automatically detect the Onboard Primary Master PCI IDE HDD Accessing mode. Mode0~4 : Manually set the IDE Accessing mode. IDE Primary Slave PIO: The default value is Auto. Auto : BIOS will automatically detect the Onboard Primary Slave PCI IDE HDD Accessing mode.
  • Page 23: Load Setup Defaults

    3-14 CHAPTER 3 Onboard UART 2 Mode:The default value is standard. This field allows the User to select the COM2 port that can support a serial Infrared Interface. standard:Support a Serial Infrared Interface IrDA. HPSIR:Support a HP Serial Infrared Interface format. ASKIR:Support a Sharp Serial Infrared Interface format.
  • Page 24: Change Supervisor Or User Password

    AWARD BIOS 3-15 ROM PCI/ISA BIOS(2A5LDPAD) CMOS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP SUPERVISOR PASSWORD BIOS FEATURES SETUP USER PASSWORD CHIPSET FEATURES SETUP IDE HDD AUTO DETECTION POWER MANAGEMENT SETUP HDD LOW LEVEL FORMAT PNP/PCI CONFIGURA ETUP Load SETUP Default (Y/N)? INTEGRATED PERIPH SAVING LOAD SETUP DEFAULTS...
  • Page 25: Ide Hdd Auto Detection

    3-16 CHAPTER 3 3-9 IDE HDD AUTO DETECTION The "IDE HDD AUTO DETECTION" utility is a very useful tool especially when you do not know which kind of hard disk type you are using. You can use this utility to detect the correct disk type installed in the system automatically.
  • Page 26 AWARD BIOS 3-17 LBA (Logical Block Addressing) mode: A new HDD accessing method to overcome the 528 Megabyte bottleneck The number of cylinders, heads & sectors shown in setup may not be the number physically contained in the HDD. During HDD accessing, the IDE controller will transform the logical address described by sector, head &...
  • Page 27: Hdd Low Level Format

    3-18 CHAPTER 3 Note: To support LBA or LARGE mode of HDDs, there must be some softwares involved. All the softwares are located in the Award HDD Service Routine (1NT 13h). It may fail to access a HDD with LBA (LARGE) mode selected if you are running under on Operating System which replaces the whole 1NT 13h.
  • Page 28: I/O & Memory Map

    TECHNICAL INFORMATION Chapter 4 Technical Information 4-1 I/O & MEMORY MAP MEMORY MAP Address Range Size Description [00000-7FFFF] 512K Conventional memory [80000-9FBFF] 127K Extended Conventional memory [9FC00-9FFFF] Extended BIOS data area if PS/2 mouse is installed [A0000-C7FFF] 160K Available for Hi DOS memory [C8000-DFFFF] Available for Hi DOS memory and adapter ROMs [E0000-EEFFF]...
  • Page 29: Time & Dma Channels Map

    4-2 CHAPTER 4 4-2 TIME & DMA CHANNELS MAP TIME MAP: TIMER Channel 0 System timer interrupt. TIMER Channel 1 DRAM REFRESH request. TIMER Channel 2 SPEAKER tone generator. DMA CHANNELS : DMA Channel 0 Available. DMA Channel 1 Onboard ECP (Option). DMA Channel 2 FLOPPY DISK (SMC CHIP).
  • Page 30: Rtc & Cmos Ram Map

    TECHNICAL INFORMATION 4-4 RTC & CMOS RAM MAP RTC & CMOS : Seconds. Second alarm. Minutes. Minutes alarm. Hours. Hours alarm. Day of week. Day of month. Month. Year. Status register A. Status register B. Status register C. Status register D. Diagnostic status byte.
  • Page 31: Appendix A: Post Codes

    4-4 CHAPTER 4 APPENDIX A: POST CODES ISA POST codes are typically output to port address 80h. POST(hex) DESCRIPTION 01-02 Reserved. Turn off OEM specific cache, shadow. 1.Initialize EISA registers (EISA BIOS only). 2.Initialize all the standard devices with default values Standard devices includes. -DMA controller (8237).
  • Page 32 TECHNICAL INFORMATION POST(hex) DESCRIPTION Initialization of the BIOS Data Area. (40:ON - 40:FF) 1.Program some of the Chipset's value according to Setup. (Early Setup Value Program) 2.Measure CPU speed for display & decide the system clock speed. 3.Video initialization including Monochromc, CGA, EGA/VGA. If no display device found, the speaker will beep.
  • Page 33 4-6 CHAPTER 4 POST(hex) DESCRIPTION 1.Display the Award Plug & Play BIOS Extension message. (PnP BIOS only) 2.Program all onboard super I/O chips (if any) including COM ports, LPT ports, FDD port ... according to setup value. 33-3B Reserved. Set flag to allow users to enter CMOS Setup Utility. 1.Initialize Keyboard.
  • Page 34 TECHNICAL INFORMATION POST(hex) DESCRIPTION 1.Initialize all ISA ROMs. 2.Later PCI initializations. (PCI BIOS only) -assign IRQ to PCI devices. -initialize all PCI ROMs. 3.PnP Initialzations. (PnP BIOS only) -assign IO, Memory, IRQ & DMA to PnP ISA devices. -initialize all PnP ISA ROMs. 4.Program shadows RAM according to Setup settings.
  • Page 35: Appendix B: I/O Connectors

    4-8 CHAPTER 4 APPENDIX B: I/O CONNECTORS J1 : PS/2 MOUSE CONNECTOR: Signal Name Data (Red Wire) Clock (Blue Wire) (Green Wire) (Yellow Wire) CN2/COM1,CN1/COM2 : Serial Ports Connector Signal Name Signal Name SOUT N.C. CN3 : Parallel Port Connector Signal Name Signal Name STROBE-...
  • Page 36 TECHNICAL INFORMATION CN4 : Floppy Disk Connector Signal Name Signal Name Ground FDHDIN Ground Reserved Ground FDEDIN Ground Index- Ground Motor Enable Ground Drive Select B- Ground Drive Select A- Ground Motor Enable Ground DIR- Ground STEP- Ground Write Data Ground Write Gate Ground...
