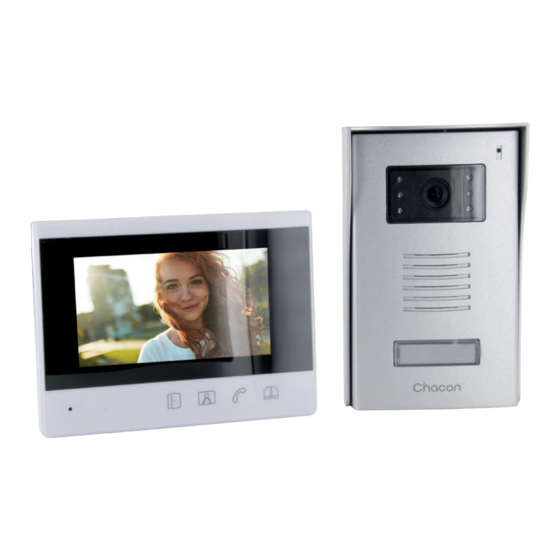

- Page 1 Installation and user manual Videophone (réf. 34827)
- Page 2 INTRODUCTION Read the instructions carefully before using the device Thank you for using this product. This product contains an LCD monitor and an outdoor camera. Its installation and maintenance are very simple 1. Indoor Unit 1. Unlock the gate 2. Pick up / Hang up 3.
-
Page 3: Installation
INSTALLATION 1. Indoor unit 1. Find a suitable location 2. Install the installation plate for the monitor 16mm - Drill a hole in the wall, insert the wall plugs - Tighten the screws 3. Connect the wiring 4. Install the main unit on the back side of the installation plate Connecting wire instruction +/- 180 cm 2. -
Page 4: Calling Function
OPERATION OF THE DEVICE Calling function 1. In standby mode, when you press the «Call» button on the outdoor unit, the indoor unit will ring for 12 seconds. The display will light up and the visitor can be seen on the screen. 2. -
Page 5: Troubleshooting
Troubleshooting 1. The voice is not audible during the call. A: The connection between the monitor and the camera has been broken. B: The volume is too low. 2. The picture is blurry. A: The brightness is so low that the image is not visible. B: Set the brightness! 3. - Page 6 - To avoid damage, attach the adapter to the wall according to the instructions. - Keep a convenient operation for the socket. Support www.chacon.com/support Recycling This symbol supports the selective treatment of waste electrical and electronic equipment (WEEE). This means that this product must be treated in accordance with the European Directive 2002/96/EC for the purpose of recycling or dismantling to minimize its impact on the environment.
