Yealink SIP-T48U Quick User Manual

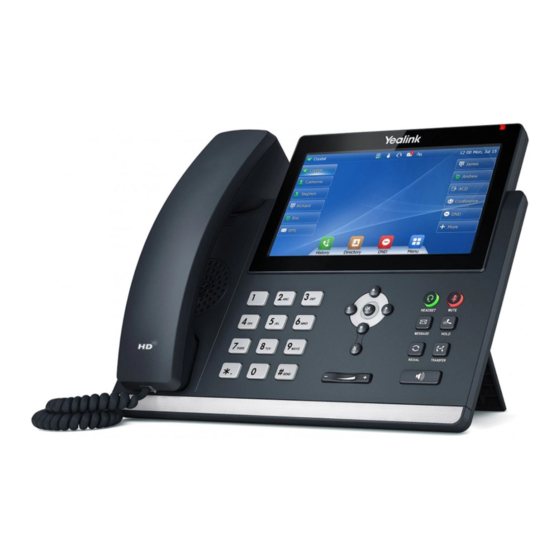

YEALINK SIP-T48U
QUICK USER GUIDE
Key Function
HEADSET Key Toggles and indicates the headset mode.
MUTE Key Toggles and indicates mute feature.
HOLD Key Places a call on hold or resumes a held call.
TRANSFER Key Transfers a call to another party.
Toggles and indicates the hands-free (speakerphone) mode.
Speakerphone Key The key LED illuminates solid green when hands-free
(speakerphone) mode is activated.
MESSAGE Key Accesses voice messages.
Redial Key Redials a previously dialed number.
Position the cursor within text you're updating.
Enable or disable fields.
Turn pages or scroll through values for a field.
Scroll through items.
Access History and Directory respectively.
Confirms actions or answers incoming calls.
Cancels actions or rejects incoming calls.
Adjusts the volume of the handset, headset, speaker, ringer, or
Volume Key
media.

USING YOUR PHONE

NAVIGATING THE TOUCH SCREEN

• To enter the main menu, tap .
• To return to the idle screen, tap .
• To go back to the previous menu, tap
• To select a soft key, tap the soft key.
• To select an item, tap the item.
• To turn pages, tap or on the touch screen.
• To scroll through values in a pull-down list,
press or .

ENTERING AND UPDATING DATA

To enter data:
1. Tap the field you want to edit.
2. Tap the IME soft key to switch input modes.
3. Enter data using the keypad.
4. Tap the Save soft key.
To select a field option:
Tap the field name, and then tap the field's highlighted
box. From the pull-down list, tap the desired option.

BASIC CALL FEATURES

PLACING A CALL USING THE HANDSET

1. Pick up the handset.
2. Enter the number, and then tap Send.
.
Using The Speakerphone
1. With the handset on-hook, press
2. Enter the number, and then tap Send.
Using The Headset
1. With the headset connected, press
the headset mode.
2. Enter the number, and then tap Send.
Note: During a call, you can alternate between the headset,
hands-free speakerphone and handset modes by pressing
the HEADSET key, the Speakerphone key or by picking up
the handset. Headset mode requires a connected headset.

ANSWERING A CALL USING THE HANDSET

Pick up the handset.

USING THE SPEAKERPHONE

Press .
