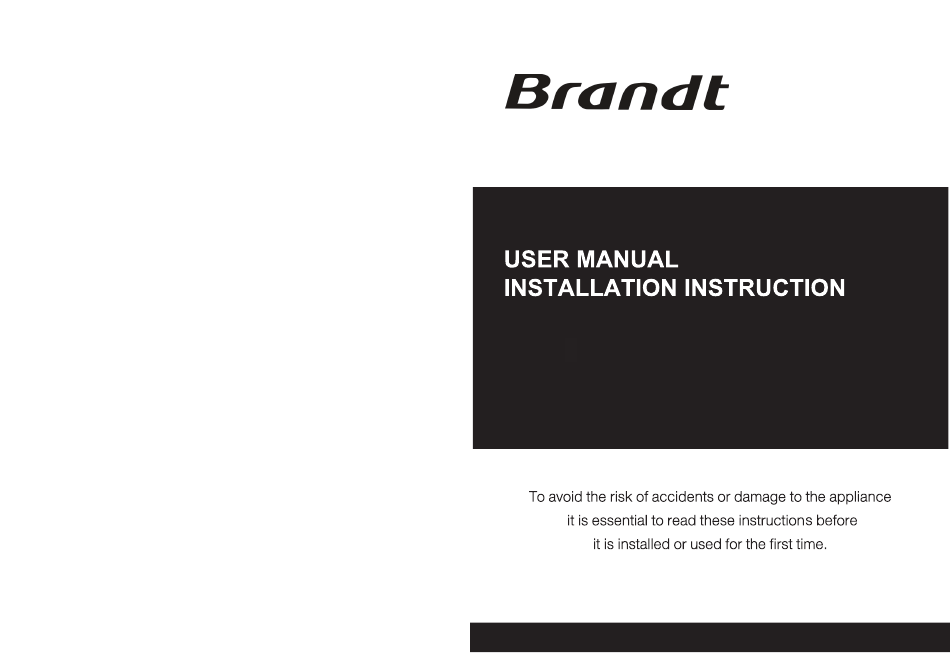

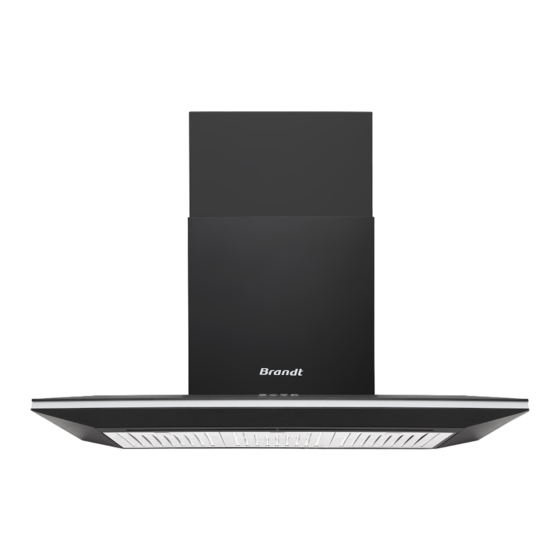

- Page 1 COOKER HOOD AD9905B...
-
Page 4: Schematic Diagram
From the Manufacturer Schematic Diagram This appliance and its packaging are produced by processes that minimize waste and respect the environment. Please help us to continue the protection of the environment by disposing of the packaging in a correct manner. Safety ！... -
Page 5: Troubleshooting
It is dangerous to modify any part of this appliance. Replace charcoal filters Charcoal grease filters Brandt Asie Pte Ltd is not liable for damages in case of failure to adopt with new sets clogged proper safety measures. Butterfly valve jammed... -
Page 6: Charcoal Filter Replacement
The product is not intended for an outside use or in a commercial setting. Fit in the new charcoal fiter. Do not leave the product unattended during operation. Brandt Asie Pte is not liable for damage caused by improper use or incorrect operation. Vent System Determine which venting method is best for your application. - Page 7 Description of Parts C l ea ning & M a in te n a n ce Decorative Steel Aluminum Filter AD9905B A.Metal Air Outlet (For recirculating mode) B.Chimney Mouting Bracket (For ducting mode) M4*10 ST5*40 C.Upper Chimney Cover D.Lower Chimney Cover...
- Page 8 **If you do not hear 5 successive beeps, you will need to restart steps 1-5 again. For additional assistance, please call Brandt Asie Pte Ltd for support.
- Page 9 RECIRCULATING MODE AIR OUTLET Operation The hood is equipped with 3 speed control. Electronic control buttons are located on the front edge of the cooker hood canopy . Light: Press to turn the light on/off. Decorative light: Hold for 3-5s to turn the decorative light On / Off Speed Controls Press once to select Low Suction speed...
-
Page 10: Installation
Fit an approved plug or a bipolar switch with a minimum contact opening of no less than 3mm. Direct connection installations must be handled by licensed professionals. Brandt Asie Pte Ltd is not liable for damages caused by improper handling and installation of the appliance. -
Page 11: Ducting Mode
3. Try to open the Windows when used the cooker hood so air can flow. DUCTING MODE 1. Wall drilling and bracket fixing:Secure the sides of the brackets using 4 screws (ST5X40) and screws wall plug (8x40) supplied. Mounting the hood bod y •... -
Page 12: Recirculating Mode
RECIRCULATING MODE 3. Fix the upper chimney to the metal outlet with 2 screws (M4X 10) . Wall drilling and metal air outlet fixing:secure the sides of the brackets using the 4 screws (ST5 X 40) and the wall plug screws (8x40) supplied). 2.Hook the hood body onto the support screws,adjust the height and then connect the aluminum foil flue.
