Summary of Contents for Brandt AD990XC

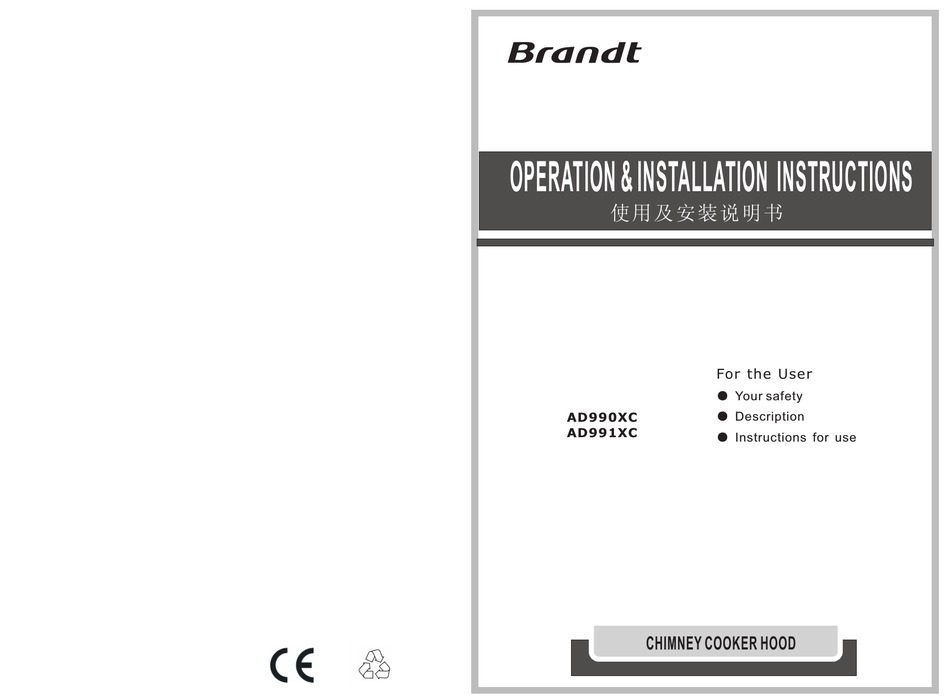

- Page 1 OPERATION & INSTALLATION INSTRUCTIONS For the User Your safety Description AD990XC AD991XC Instructions for use CHIMNEY COOKER HOOD...
-
Page 3: Table Of Contents
Contents For the User Your safety..............1 Description..............3 Instructions for use............4 For the Installer Installation ..............7 Safety Information ............10 Troubleshooting.............11... -
Page 4: For The User
From the manufacture Please read this user manual carefully before attempting to operate the appliance and store it in a safe place for future reference. This appliance and its packaging are produced by processes that minimize waste and respect the environment. Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. - Page 5 In ducted mode there must be one or more permanent air inlet The air collected must not be discharged into a duct LE D L E D used to blow off smoke from other appliances fed with 5 10 1 5 20 elec ricity The distance between the bench to the lower part of the LE D...
-
Page 6: Description
Always switch off the electricity and unplug the connection before condu ting maintenance or cleaning Electric Chord Ensure the supply chord is not exposed to heat chemicals or sharp objects If the supply chord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard Description... -
Page 7: Instructions For Use
Ducted or Re-circulating mode Depending on your requirement this appliance can be configured to operate in the ducted or re circulating modes DUCTED MODE Fire proof ducting system 150mm diameter vent the fumes through a suitable outlet In the ducted mode only aluminium... - Page 8 Electronic Control Panel Touch Low speed setting Touch Delay off timer 5 Touch 3 seconds minutes Touch Medium speed setting Touch Delay off timer 5 Touch 3 seconds minutes Touch High speed setting Touch Turns the light on off Delay off timer This program is used to clear the kitchen &...
- Page 9 Motor Touch short time blue indicator flash Sliding shows motor on — — speed 1 as per need, 1, 2, 3 & turbo available — Touch short time again motor off — If other function is on red indicator on —...
-
Page 10: Installation
CHARCOAL FILTERS only in re circulating model : Charcoal cannot be reused They must be replaced with the appropriate types once a year or depending on the frequency of appliance usage For this appliance to function effectively regular maintenance is a must Clogged filters restrict airflow and may cause the motor to overheat Installation... - Page 11 Troubleshooting Action Symptoms Possible Cause Check that the main switch is turned on No electrical No go supply Check that the plug is connected Aluminium grease Clean the filters and filters clogged replace when dry Poor airflow Charcoal grease Replace charcoal filters filters clogged with new sets Motor running...
-
Page 12: Safety Information
FOR THE INSTALLER Hood Size Safety Information Connection to the electrical supply Electrical connection must be made only in accordance to the local standards and laws Ensure that the electrical supply complies with the setting on this appliance otherwise do not connect The electrical connection of this appliance must be earthed If unsure check with a qualified electrician...
