- Page 1 INSTRUCTIONS FOR USE Cartridge alignment tool Pro-Ject Align it PRO © Pro-ject Audio Systems · Pro-Ject Align it PRO· Revision 2022.10.07...
- Page 2 Spindle hole Cartridge tangency adjustment Mirror Tonearm length marks Length fixing screw Rod fixing screw © Pro-Ject Audio Systems · Pro-Ject Align it PRO · Revision 2022.10.07...

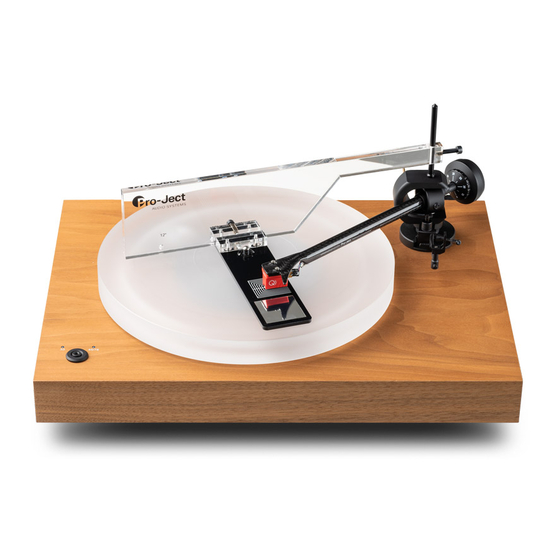

- Page 3 With the Align it PRO you are able to set the overhang and tangency in one easy step, just using the inner null- point (2) as printed on the base.
- Page 4 Check your turntable’s manual for the factory adjusted overhang, and don’t worry if your factory fresh turntable doesn’t align by default with the Align it PRO and its Baerwald curve. That is because the factory alignment is not done using the Baerwald method! The effective length of your tonearm is the result of pivot to spindle distance PLUS overhang added together.
- Page 5 Widely used in the industry, null-points at 66,0 and 120,9 mm. Here is an example of the typical Baerwald geometry with correct null points. The blue curve shows the tracking error. © Pro-ject Audio Systems · Pro-Ject Align it PRO· Revision 2022.10.07...
- Page 6 This can cause a lot of distortion and mechanical tension on the cantilever of your cartridge and the stylus itself and wear down the grooves of your records. © Pro-Ject Audio Systems · Pro-Ject Align it PRO · Revision 2022.10.07...
- Page 7 This guide was produced by: Pro-Ject Audio Systems notice as deemed necessary to uphold the ongoing Copyright © 2022. All rights reserved. technical development process. © Pro-ject Audio Systems · Pro-Ject Align it PRO· Revision 2022.10.07...
