Read all information and instructions in this document carefully before using the device and keep it for further reference.
For more device information and instructions, please refer to other documents (if any) accompanying the device or scan the QR
code (if any) on the packaging to get more information.
COPYRIGHT ©2022 Hangzhou Hikfire Technology Co., Ltd. All rights reserved.
About this Document
The document includes instructions for using and managing the Product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The information contained in the document is subject to change, without
notice, due to firmware updates or other reasons. Please contact our Customer Service for the latest version of this document.
Please use this document under the guidance of professionals.
Note: The interface varies with the models. Please refer to the product datasheet for details.
Trademarks
and other Hikfire's trademarks and logos are the properties of Hikfire in various jurisdictions. Other trademarks
and logos mentioned are the properties of their respective owners.
DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKFIRE MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKFIRE
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS,
OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKFIRE HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKFIRE SHALL
NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM
CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKFIRE WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR
ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS
PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION,
RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL
NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS
OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN
THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS
ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T4C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

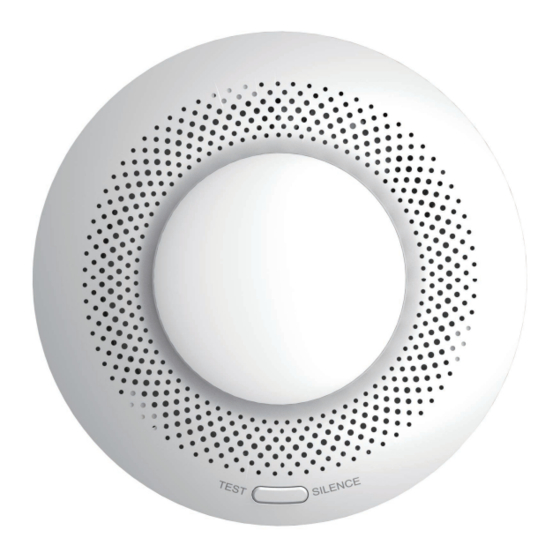

Summary of Contents for Ezviz T4C

  • Page 1 Read all information and instructions in this document carefully before using the device and keep it for further reference. For more device information and instructions, please refer to other documents (if any) accompanying the device or scan the QR code (if any) on the packaging to get more information. COPYRIGHT ©2022 Hangzhou Hikfire Technology Co., Ltd.
  • Page 2: Table Of Contents

    2� Basics ���������������������������������������������������������������������������������������������������������������������������������������������������������� 1 Get the EZVIZ App ������������������������������������������������������������������������������������2 Power on Sensor���������������������������������������������������������������������������������������2 Self-test ���������������������������������������������������������������������������������������������������3 Add Your Sensor to EZVIZ �������������������������������������������������������������������������3 Method 1 Add by scaning QR code ��������������������������������������������������������������������������������������������������������������������� 3 Method 2 Add by gateway ���������������������������������������������������������������������������������������������������������������������������������� 4 Select Appropriate Location ����������������������������������������������������������������������4 Sensor Installation �����������������������������������������������������������������������������������5...
  • Page 3: Overview

    Overview 1� Package Contents Smoke Sensor (x1) Dust Cap (x1) Mounting Base (x1) Battery (x1) Drill Location Template (x1) Foam Sticker (x1) Quick Start Guide Screw Kit (x1 ) Regulatory Information (x2) Quick Start Guide (x1) All device's appearances are subject to the one you have bought. 2�...
  • Page 4: Get The Ezviz App

    Get the EZVIZ App 1. Connect your mobile phone to Wi-Fi (suggested). 2. Download and install the EZVIZ app by searching for “EZVIZ” in the App Store or Google Play 3. Launch the app and register an EZVIZ user account.
  • Page 5: Self-Test

    Add Your Sensor to EZVIZ Method 1 Add by scaning QR code 1. Log in to your account through EZVIZ app, tap the device adding icon and then the QR code scanning interface will be displayed. 2. Scan the QR code at the bottom of the Sensor or on the cover of the user manual.
  • Page 6: Method 2 Add By Gateway

    ·If you want to delete the Sensor, please choose either of the following methods to clear the matching relationship between the Sensor and the gateway: - Enter detailed page of the Sensor on your EZVIZ APP, and then delete the Sensor; - Press and hold the Button of the Sensor for 5s to reset and then delete the Sensor from the gateway.
  • Page 7: Sensor Installation

    2� For Sloped or Diamond-shaped Roof The Sensor should be kept at a certain distance from the roof; when the roof slope is less than 30 degrees, the appropriate distance is 500mm. 500mm Forbidden Zone Sensor Installation 1� Screw Fixed (Recommended) 1�...
  • Page 8: Sensor Testing

    Foam Sticker Mounting Base Sensor Testing 1� Testing Method Put the litten cigarette or other smoke-producing items close to the Sensor, make the smoke into the inlet hole of the Sensor till the Sensor triggers an alarm. 2� Testing Result After the smoke reaches a specified concentration, the Sensor will trigger an alarm, and the LED indicator light will fast-flashing red and the buzzer will beep for a long time.
  • Page 9: Specification

    Specification Parameters Descriptions Model CS-T4C Name Smoke Sensor Product Implementation EN 14604:2005; Standard EN 14604:2005/AC:2008 Working Principle Photoelectric Type Communication Mode ZigBee Alarm Volume ≥ 85dB@3m (A-weighted) Local Alarm Mode Sound-light Alarm Working Voltage DC 3V, Lithium Battery CR14250 Standby Current ≤...
  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION and REPLACEMENT 1� Install Battery Tear off the battery insulation, put the battery into the baseplate and insert it to the end. 2� Replace Battery Remove the battery from baseplate and replace battery with the Lithium Battery CR14250 purchased by a regular manufacturer. Test the device for correct operation whenever the baterries are replaced after re-fitting the device onto the base plate.
  • Page 11: Operations On The Ezviz App

    The app interface may be different due to version update, and the interface of the app you installed on your phone shall prevail. 1� Live View When you launch the EZVIZ app, you can manage your device as needed on the homepage. When detects the following abnormal events, the alarm message will be sent to APP via...
  • Page 12: Information For Private Households

    INFORMATION FOR PRIVATE HOUSEHOLDS 1. Separate collection of waste equipment: Electrical and electronic equipment that has become waste is referred to as waste equipment. Owners of waste equipment must dispose of it separately from unsorted municipal waste. In particular, waste equipment does not belong in household waste, but in special collection and return systems.
