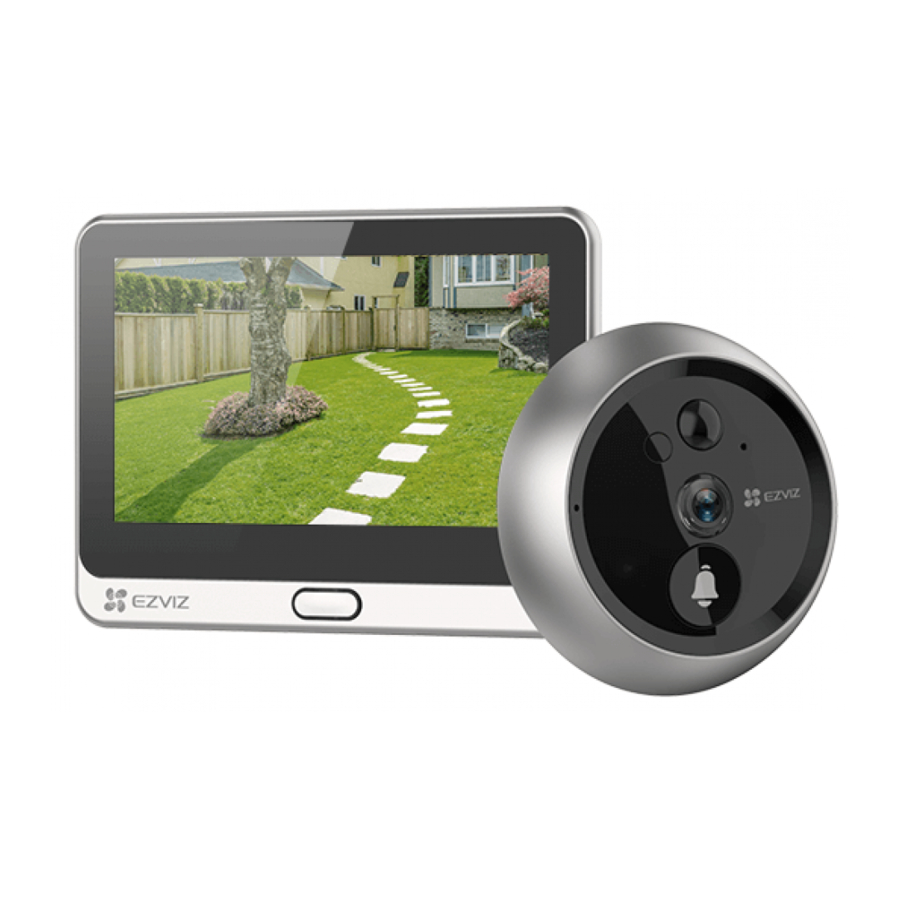

EZVIZ DP2C - Wire-Free Peephole Doorbell Manual

Attention

Box Content

Overview

Panel

Camera

Do not block the sensors.

Mounting Base

Get the EZVIZ App

• Connect your mobile phone to Wi-Fi using your 2.4GHz network (suggested).
• Download and install the EZVIZ app by searching "EZVIZ" in the App Store or Google Play
• Launch the app and register an EZVIZ user account.

EZVIZ App

If you have already used the app, please make sure that it is the latest version. To find out if an update is available, go to the app store and search for EZVIZ.

Setup

Follow the steps to set your peephole:

Installation

Install the Micro SD Card (Optional)

Install the peephole

If you already have a peephole, install the device in the same place. If not, please drill a hole of diameter about 16.5mm (no more than 45mm) and about 145cm distance from the ground to have a good viewing effect.

1. Measure the door's thickness and select the appropriate screws.


   Thickness	Screw
   35 to 60mm
   60 to 85mm
   85 to 105mm

2. Turn the screws into the back of camera.


3. Tear off the release paper.


4. Pass screws and wire through the door. You can roll up the paper to help.


5. Adjust camera's position and push it close to the door gently.


6. Pass screws and wire through the mounting base.


7. Adjust the mounting base's position and tighten the screw.


8. Connect the panel with the camera's wire.


9. Put the panel into the mounting base.


10. Hold the dismantle button until the panel is well buckled.


11. Installation complete.


Power on

1. Hold the power button for 3 seconds to power on the panel.


2. Tap the Home button to choose your language and press the Power button to confirm.


Add to EZVIZ App

-

• Log in the EZVIZ app.
• On the Home screen, tap "+" on the upper-right corner to go to the scan QR code page.
• Scan the QR code.
• Follow the EZVIZ app wizard to finish Wi-Fi configuration.

If you failed to get the QR code or want to reconfigure Wi-Fi, please hold the Home button for 5 seconds to reset and repeat the steps above.

Charge the Panel

Connect the panel with the power outlet via power adapter (5V 2A, sold separately).
You can also take off the panel to charge by holding the dismantle button to remove it from the mounting base. Please disconnect the wire carefully.

Restore to Factory Settings

When the device is normally running, press the Home button for 5 seconds and cofirm to restore the device to factory settings.

Live View

The app interface may be different due to version update, and the interface of the app you installed on your phone shall prevail.
Launch the EZVIZ app, tap Live View botton, you can view and listen to a live feed, take snapshots, record videos, and choose video definition as needed.

Swipe left and right across the screen to see more icons.

Icon	Description
	Share. Share your device.
	Settings. View or change the device settings.
	Snapshot. Take a snapshot.
	Record. Manually start/stop recording.
	Speak. Start using talk and listen.
	Definition. Select video resolution from Ultra HD, Hi-Def or Standard.
	Call Log. View call logs.
	Multi-screen Live. Tap to select live view window layout.

Please refer to the actual interface for specific information.

Settings

In the settings page, you can set the parameters of the device.

Parameter	Description
Name	Customize the name of your device.
Working Mode	User Mode: Customize parameters like detection sensitivity and loitering duration Performance Mode: Under this mode, the device performance will be improved, but the power consumption will be increased. Power Saving Mode: Adjust the sensitivity and other parameters to extend battery life. Super Power-saving: Sleep Mode is on. Active live view can wake up the camera. Configure Working Mode: Customize the working mode in different periods.
Intelligent Detection	You can customize the detection notification by changing the value of detection sensitivity. The higher sensitivity is, the easier people farther to the device can be detected. Basic Detection(Required) PIR Infrared Detection: Higer sensitivity, farther detectable distance. Advanced Detection Loitering detection: when enabled, if people keep loitering around the doorway for longer than the period you have set up, alarms will be triggered. This function is used to avoid loitering. Devices will alert based on the selected mode, including device-side alerts and App-side message notifications.
Notification	You can set the notification from the device-side and app-side.
Audio	When disabled, both live view and record videos will not have audio.
Image	Auto(Recommended): Auto-Switch Day/Night Mode. Day and Night Switch Sensitivity. Enforcing Day Mode: IR mode stays off Enforcing Night Node: IR mode stays on, with clear images in dark environment.
Light	When disabled, the doorbell indicator will be off.
Battery	You can see the battery capacity.
Cloud Storage	You can subscribe and manage the cloud storage.
Record List Security Settings	You can see the device storage status, include cloud storage and memory card. Video Encryption: When enabled, your videos will be encrypted. Change Encryption Password: You can change your password.
Network	You can see the Wi-Fi that the device has connected to, and you can tap to change to another Wi-Fi. Static DNS: If enabled, you can customize the DNS address. Wi-Fi Sleep Mode: You can choose the Wi-Fi Sleep mode. Low Power Mode Ultra-Low Power Mode
Device Information	You can see the device information here.
Share the Device	Enter an email address or phone number to invite and grant device permissions to a family member or guest.
Delete Device	Tap to delete the camera from your EZVIZ account.

EZVIZ Connect

Use Amazon Alexa

These instructions will enable you to control your EZVIZ devices with Amazon Alexa. If you run into any difficulties during the process, please refer to Troubleshooting.

Before you start, make sure that:

Voice Command
Discover a new smart device via the "Smart Home" menu in the Alexa app or the Alexa Voice Control function.
Once the device is found, you can control it with your voice. Speak simple commands to Alexa.
Your device's name for example: "show xxxx camera," can be changed in the EZVIZ app. Each time you change the name of the device, you will need to discover the device again to update the name.

Use Google Assistant

With the Google Assistant, you can activate your EZVIZ device and watch live by speaking Google Assistant voice commands.

The following devices and apps are required:

1. A functional EZVIZ app.
2. In the EZVIZ app, turn off the "Image Encryption" and turn on the "Audio" in the Device Settings page.
3. A TV with functional Chromecast connecting to it.
4. The Google Assistant app on your phone.

To get started, follow the steps below:

1. Set up the EZVIZ device and make sure it works properly on the app.
2. Download the Google Home app from the App Store or Google Play Store
3. On the Myhome screen, tap "+" on the upper-left corner, and select "Set up device" from the menu list to go to the Set up interface.
4. Tap Works with Google, and search for "EZVIZ", where you will find "EZVIZ" skills.

For additional information about the device, please refer to www.ezviz.com/eu.

Troubleshooting

What should I do if Alexa fails to discover my device?
Check if there are any Internet connecting problems.
Try to restart the smart device and re-discover the device on Alexa.

Why the device's status is "Offline" on Alexa?

Your device might have been disconnected from the network. Restart the smart device and re-discover on Alexa.
Check if your router is connected to the Internet and try again.
For details about countries where Amazon Alexa is available, see Amazon Alexa's official website.

Initiatives on the Use of Video Products

Technology affects every aspect of our life. As a high-tech company, we are increasingly aware of the role technology plays in improving business efficiency and quality of life, but at the same time, the potential harm of its improper usage. For example, video products are capable of recording real, complete and clear images. This provides a high value in retrospect and preserving real-time facts. However, it may also result in the infringement of a third party's legitimate rights and interests if improper distribution, use and/or processing of video data takes place. With the philosophy of "Technology for the Good", EZVIZ requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
Please read the following initiatives carefully:

1. Everyone has a reasonable expectation of privacy, and the installation of video products should not be in conflict with this reasonable expectation. Therefore, a warning notice shall be given in a reasonable and effective manner and clarify the monitoring range, when installing video products in public areas. For non-public areas, a third party's rights and interests shall be evaluated when installing video products, including but not limited to, installing video products only after obtaining the consent of the stakeholders, and not installing highly-invisible video products.

2. The purpose of video products is to record real activities within a specific time and space and under specific conditions. Therefore, every user shall first reasonably define his/her own rights in such specific scope, in order to avoid infringing on a third party's portraits, privacy or other legitimate rights.

3. During the use of video products, video image data derived from real scenes will continue to be generated, including a large amount of biological data (such as facial images), and the data could be further applied or reprocessed. Video products themselves could not distinguish good from bad regarding how to use the data based solely on the images captured by the video products. The result of data usage depends on the method and purpose of use of the data controllers. Therefore, data controllers shall not only comply with all the applicable laws and regulations and other normative requirements, but also respect international norms, social morality, good morals, common practices and other non-mandatory requirements, and respect individual privacy, portrait and other rights and interests.

4. The rights, values and other demands of various stakeholders should always be considered when processing video data that is continuously generated by video products. In this regard, product security and data security are extremely crucial. Therefore, every end user and data controller, shall undertake all reasonable and necessary measures to ensure data security and avoid data leakage, improper disclosure and improper use, including but not limited to, setting up access control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security.

5. Video products have made great contributions to the improvement of social security around the world, and we believe that these products will also play an active role in more aspects of social life. Any abuse of video products in violation of human rights or leading to criminal activities are contrary to the original intent of technological innovation and product development. Therefore, each user shall establish an evaluation and tracking mechanism of their product application to ensure that every product is used in a proper and reasonable manner and with good faith.

Rechargeable Lithium ion Battery

INFORMATION FOR PRIVATE HOUSEHOLDS

1. Separate collection of waste equipment: Electrical and electronic equipment that has become waste is referred to as wasteequipment. Owners of waste equipment must dispose of it separately from unsorted municipal waste. In particular, waste equipment does not belong in household waste, but in special collection and return systems.

2. Batteries and rechargeable batteries as well as lamps: Owners of waste equipment shall, as a rule, separate waste batteries and rechargeable batteries that are not enclosed in the waste equipment, which can be removed from the waste equipment without being destroyed, from the waste equipment before handing them in at a collection point. This does not apply if waste equipment is prepared for reuse with the participation of a public waste management authority.

3. Options for returning waste equipment: Owners of waste equipment from private households can return it free of charge to the collection points of the public waste management authorities or to the take-back points set up by manufacturers or distributors within the meaning of the Electrical and Electronics Equipment Law. Stores with a sales area of at least 400 m² for electrical and electronic equipment and those grocery stores with a total sales area of at least 800 m² that offer electrical and electronic equipment several times a year or on a permanent basis and make it available in the market are required to take it back. This also applies in the case of distribution using means of distance communication, if the storage and shipping areas for electrical and electronic equipment are at least 400 m² or the total storage and shipping areas are at least 800 m². Distributors shall, in principle, ensure take-back by providing suitable return facilities at a reasonable distance from the respective end user. The possibility of returning waste equipment free of charge exists for distributors who are obliged to take it back, among other things, if a new similar device that essentially fulfills the same functions is delivered to an end user.

4. Privacy Notice: Waste equipment often contains sensitive personal data. This applies in particular to devices of information and telecommunications technology such as computers and smartphones. In your own interest, please note that each end user is responsible for deleting the data on the waste equipment to be disposed of.

5. Meaning of the symbol "crossed-out wheelie bin": The symbol of a crossed-out wheelie bin regularly depicted on electrical and electronic equipment indicates that the respective device is to be collected separately from unsorted municipal waste at the end of its service life.
