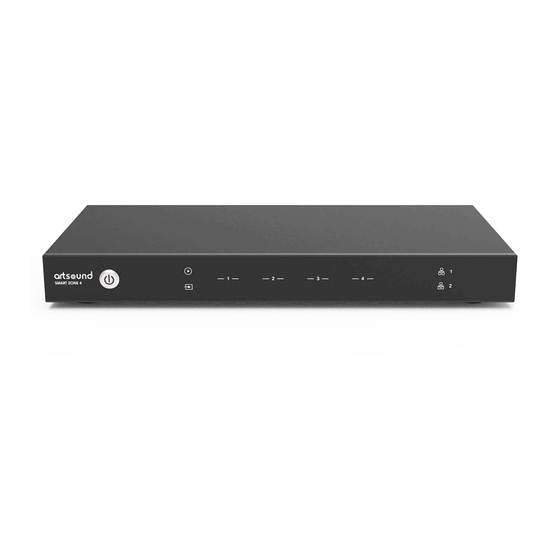

Artsound Smart Zone 4 User Manual

4 multi-room system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Smart Zone 4

Table of contents

1. Warnings and safety
2. What's in the box
Thank your for buying our Smart Zone 4 multi-room system. We hope you'll enjoy it for years to come. Please
read these instructions carefully and keep this manual for later reference. .
1. WARNINGS AND SAFETY
• To prevent fire or electric shocks, the device must not be exposed to rain or humidity.
• For your own safety: to prevent electric shocks do not remove the housing.
• Do not try to repair any malfunctioning parts of the device yourself. Ask a professional expert to do this for you.
• When plugged into the mains, the device remains electrically charged even when switched off.
2. WHAT'S IN THE BOX
Check that the packaging contains the following parts:
• Smart Zone 4
• User Manual
• Ethernet Cable
• Rack Mount Brackets x2
• 12V/2A Power Adapter
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Zone 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Artsound Smart Zone 4

Summary of Contents for Artsound Smart Zone 4

  • Page 1: Table Of Contents

    9. Using Smart Zone 4 13. Warranty conditions Thank your for buying our Smart Zone 4 multi-room system. We hope you’ll enjoy it for years to come. Please read these instructions carefully and keep this manual for later reference. .

  • Page 2: Introduction

    WIRELESS ROUTER: In order to use the Smart Zone 4, you will need to have a working Wi-Fi network in your home, since the control app on your mobile device needs to be in the same network as the streamer.

  • Page 3: Back Panel

    6. PLACING THE SMART ZONE 4 The Smart Zone 4 is an audio streamer and needs to be used with an external device that offers audio amplifica- tion. For example: Artsound AMP1250 or 2 x Artsound PRL1204 can be used. You should place the Smart Zone 4 near the amplification device you want to connect to.

  • Page 4: Zone Connection

    Connect the LINE OUT output to the input on your active subwoofer or subwoofer amplifier. amplifier or AV receiver using the appropriate cable. The Smart Zone 4 supports both analog output (RCA) and digital output (Optical & Coaxial). Subwoofer with...

  • Page 5: Trigger Control

    OPTICAL OUT 7.6 RS232 SERIAL PORT RS232 serial port is reserved for connection to smart home control unit to control the Smart Zone 4. You can use the Pass-Through port to connect to another Smart Zone 4 for group control.

  • Page 6: Connect To Network

    SMART ZONE 4 7.7 CONNECT TO NETWORK Connect the Smart Zone 4 to your home router using a LAN cable to add it into your home network. You can use the NETWORK OUT port to connect another device to the same network.

  • Page 7: Play Same Music To Multiple Rooms

    To use Spotify, you need to have a Spotify premi- devices can access the master source input. um account. You will find the different zones from the Smart Zone 4 in the device list in the Spotify *There will be a small delay between the audio application.

  • Page 8: Listen To Local Music

    SMART ZONE 4 9.6 LISTEN TO LOCAL MUSIC Smart Zone 4 can stream local music stored in your mobile phone or tablet, USB storage drive, NAS using DLNA protocol or UPnP/DLNA 3rd party software. Click on “My Music” to select the local device you want to play from.

  • Page 9: Device Settings

    SMART ZONE 4 10. DEVICE SETTINGS RENAME You can rename each zone to different name to fit your needs. SPEAKER INFO You will see the device information like device’s IP address, Device name, Firmware Version and Restore Factory Default. PRESET You can store 10 different playlist or radio stations to the Preset list for quick access.

  • Page 10: Specifications

    2 year warranty from date of purchase. The warranty is limited to the repair of replacement of the defective material insofar as this defect is a result of normal use and the device has not been damaged. Artsound is not responsible for any other costs that ensue as a result of the defect (e.g.
  • Page 11 I, House Of Music NV, hereby declare that the type of radio equipment ARTSOUND complies with Direc- tive 2014/53/EU. The full text of the EU Declaration of Conformity can be found at the following internet address: http://www.artsound.be/en/support/downloads...
  • Page 12 House of Music nv K www.artsound.be Ronse, Belgium E Artsound.audio ¼ +32 9 380 81 80 Q artsoundaudio º info@houseofmusic.be...
